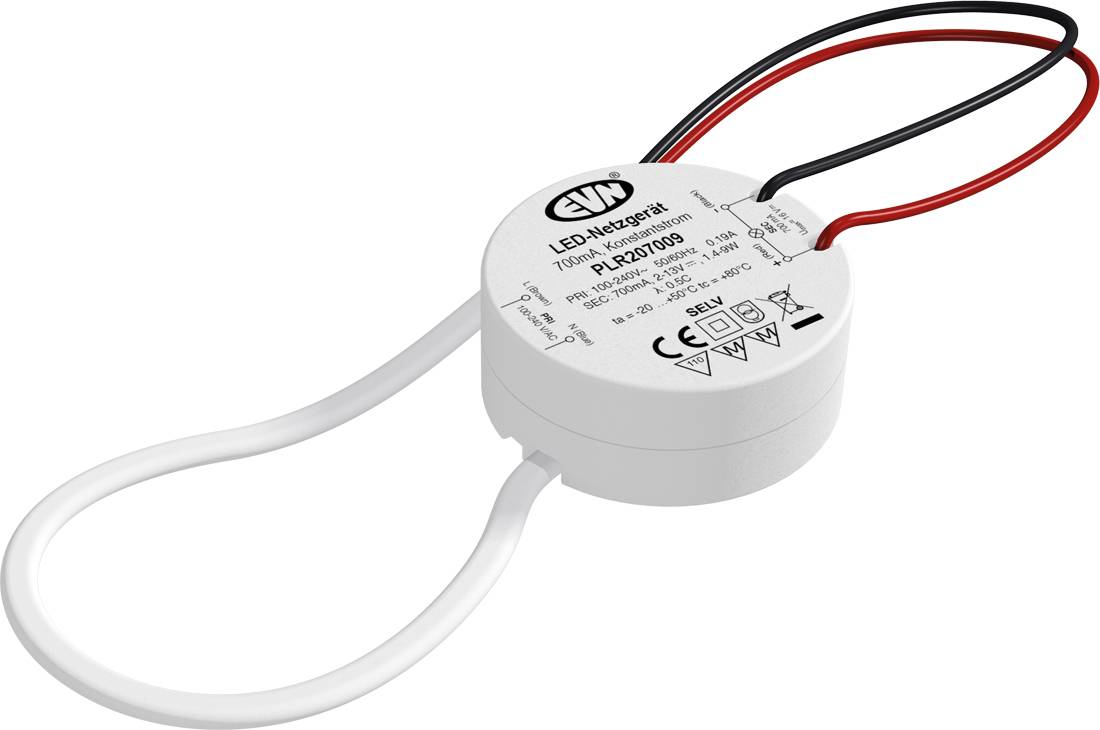

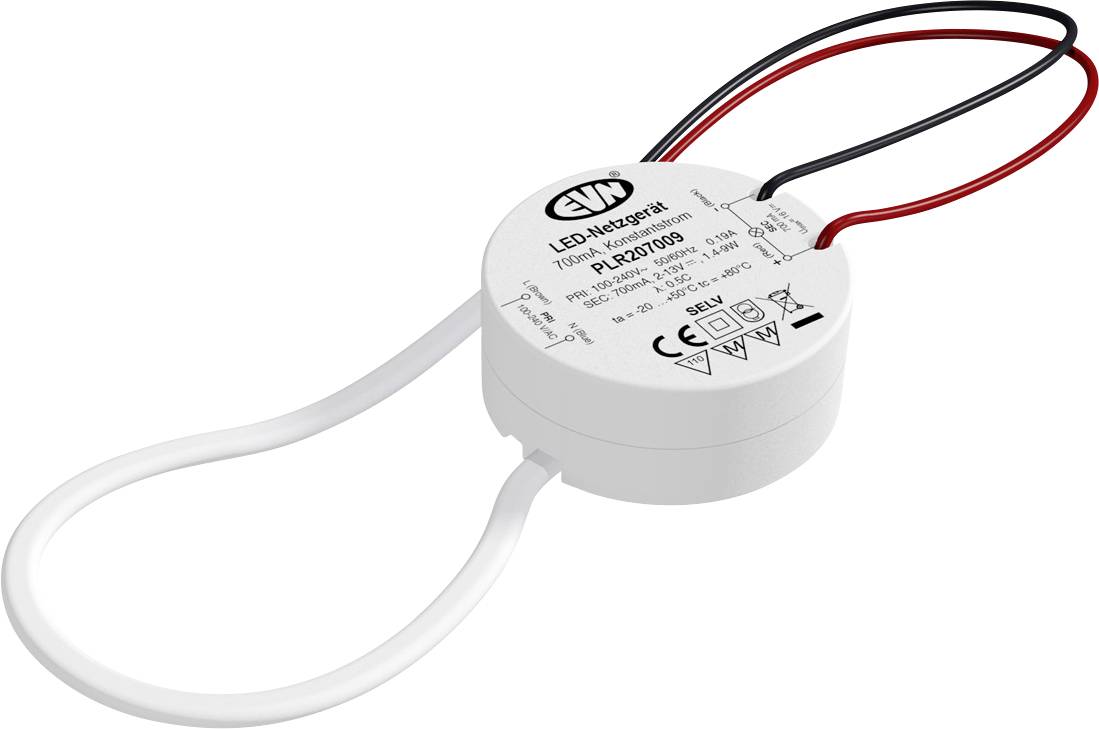

EVN PLR207009 LED driver Constant current 700 mA 0 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PLR207009
- Constant current
- 0 V
- 700 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Operating current
700 mA
- Output voltage (max.)
0 V
- Output voltage (min.)
0 V
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Protection class
II
- LED driver features
Surge protection
IP20
- Connection
Open end cable
- Input voltage (max.)
240 V
- Min. input voltage
220 V
- Weight
0.06 kg

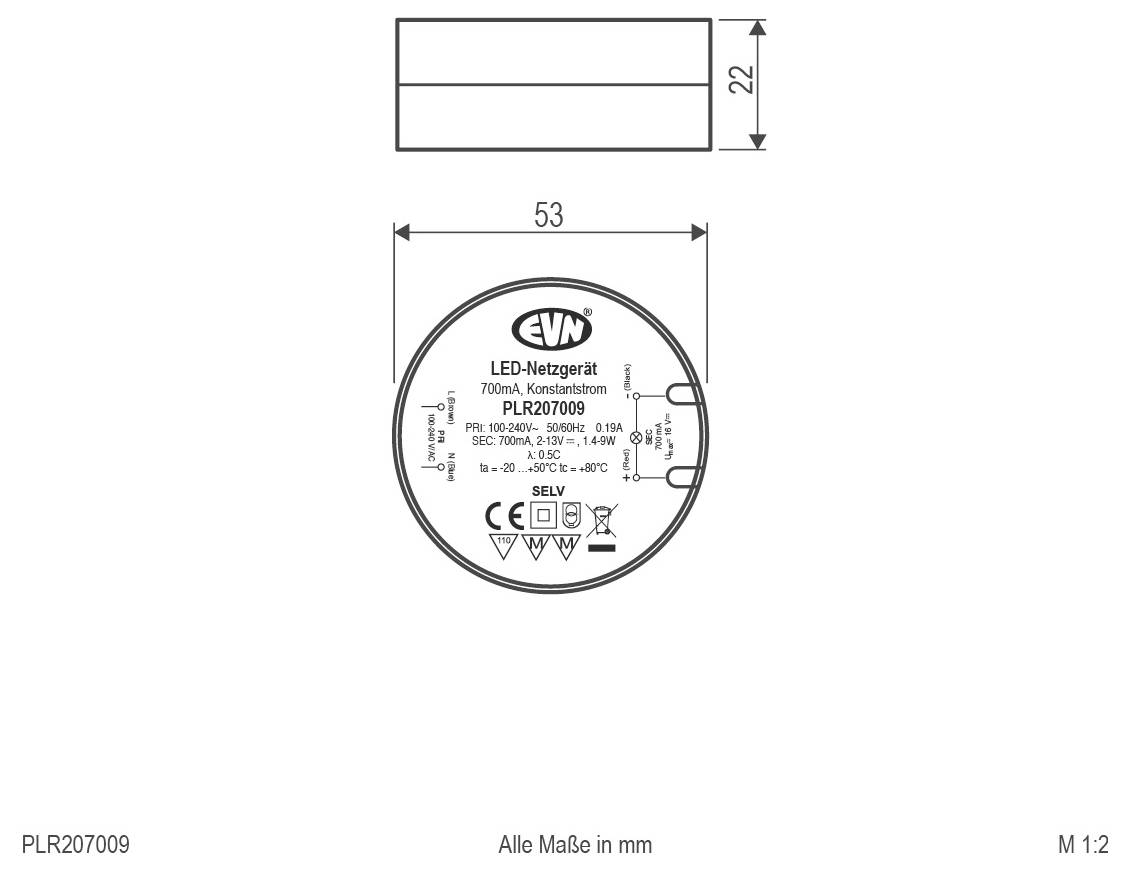

- Height
22 mm
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2484175 EVN PLR207009 LED driver Constant current 700 mA 0 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2484175 EVN PLR207009 LED driver Constant current 700 mA 0 V Surge protection 1 pc(s)
Description
The short-circuit-proof safety transformer can be mounted perfectly in switch boxes due to its small design, but can also be used in furniture construction, as THE MM marking is given. The connecting cables have a length of 15cm on the primary side and 16cm on the secondary side. Technical data: Supply voltage: 100-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor 0.50.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
