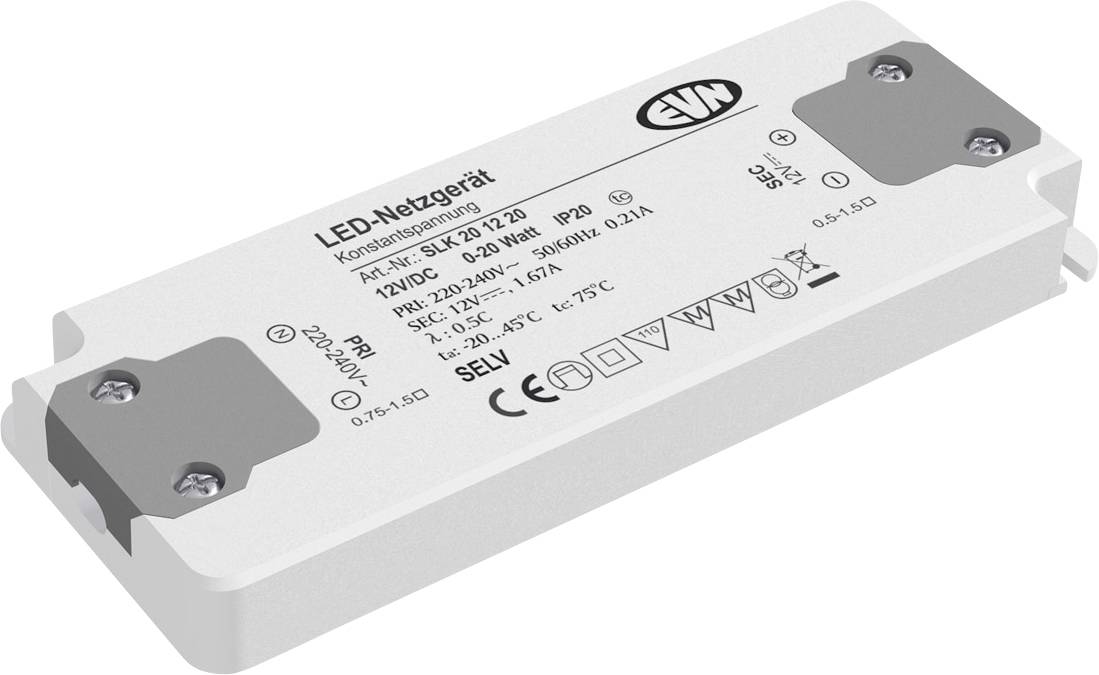

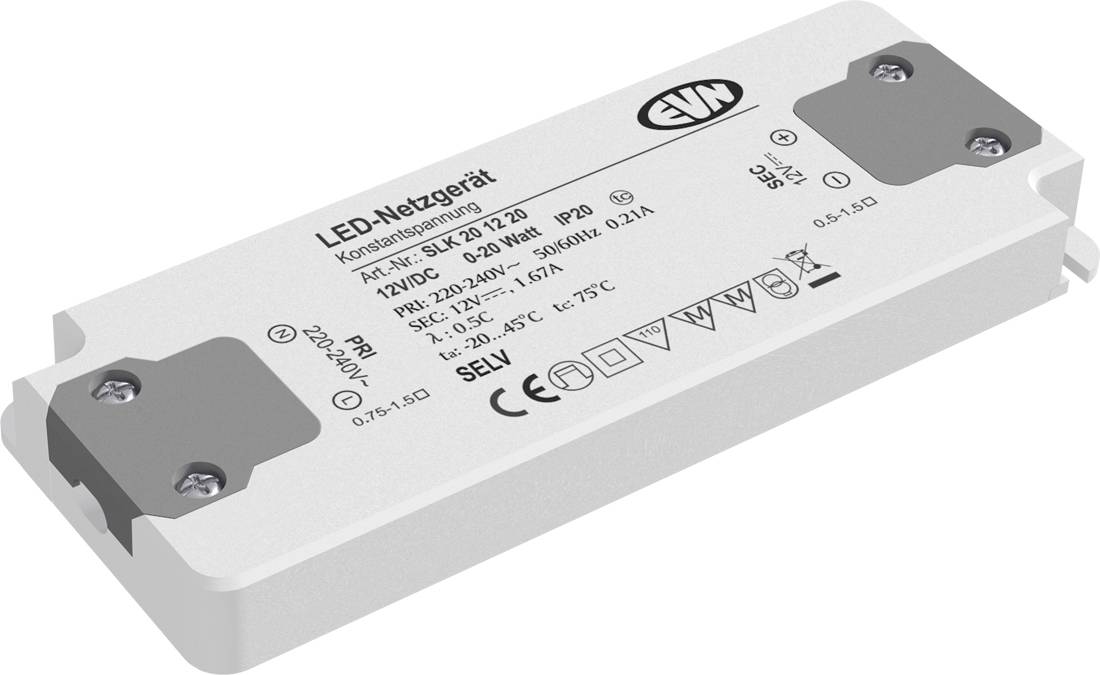

EVN SLK201220 LED transformer Constant voltage 20 W 12 V DC not dimmable, Approved for use on furniture, Surge protectio
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
12V/DC LED POWER SUPPLY
- Constant voltage
- 12 V DC
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim

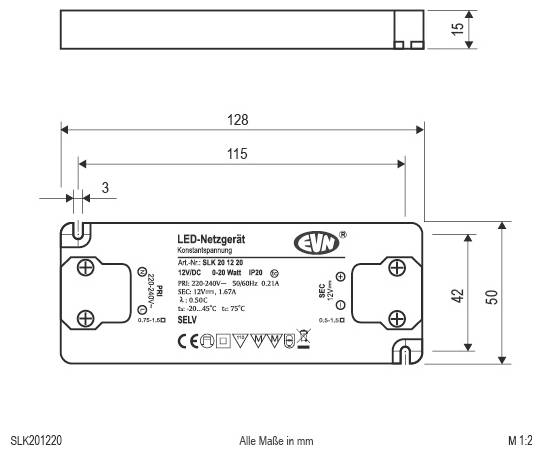

(L x W x H) 128 x 50 x 15 mm
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Test mark
MM-Kennzeichnung
- Protection class
II
- LED driver features
not dimmable
Approved for use on furniture
Surge protection
IP20
- Connection
Open end cable
- Max. power
20 W
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
0.08 kg
- Power (min.)
0.1 W
- Power range
0.1 up to 20 W
- Width
50 mm
- Height
15 mm
- Length
128 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2484267 EVN SLK201220 LED transformer Constant voltage 20 W 12 V DC not dimmable, Approved for use on furniture, Surge protectio
User & Safety Instructions
User & Safety Instructions 2484267 EVN SLK201220 LED transformer Constant voltage 20 W 12 V DC not dimmable, Approved for use on furniture, Surge protectio
Description
Due to its flat design, the short-circuit proof safety transformer can also be mounted in confined spaces, but can also be used in furniture construction without any problem, as THE MM marking is provided. The connection on the primary and secondary sides is made by screw terminals, which are suitable for cables from 0,75mm² - 1,5mm² on the primary side or 0,5mm² - 1,5mm² on the secondary side. Technical data: Supply voltage 220-240V/AC, ta: -20°C - 45°C, tc: 75°C, power factor: 0.50.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
