Name: EXSYS EX-60305 PoE + Gigabit injector 90 W.
Brand: Exsys
SKU: 3796958

EXSYS EX-60305 PoE + Gigabit injector 90 W.-0

EXSYS EX-60305 PoE + Gigabit injector 90 W.-1

EXSYS EX-60305 PoE + Gigabit injector 90 W.-2

EXSYS EX-60305 PoE + Gigabit injector 90 W.-3

EXSYS EX-60305 PoE + Gigabit injector 90 W.-4

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

EXSYS PoE++ Gigabit injector 90W, metal housing

10,1000,100 Mbit/s
Power over Ethernet (PoE) IEEE 802.3af, IEEE 802.3at, IEEE 802.3at
Metal
Grey

Technical specifications

Power plug type: Type F

Product type: PoE injector

10/100/1000 Mbps ports: 2 x

Weight: 570 g

Width: 80.2 mm

Height: 25.7 mm

Depth: 76.7 mm

Type: Switch

: IP30

Factory colour: Grey

Cable length: 0 mm

Version: Connection cable

Material (details): Metal

Connection type: Series

Input voltage: 48 - 57 V

UKCA: yes

Operating temperature (T-T): -20 - 55 °C

Total Power over Ethernet (PoE) budget: 90 W

Storage relative humidity (H-H): 5 - 95 %

Wall mountable: yes

Operating temperature (T-T): -4 - 131 °F

Power over Ethernet (PoE) power per port: 90 W

DC-in jack: yes

Power over Ethernet (PoE): yes

Number of products included: 1 Stück(e)

Operating relative humidity (H-H): 5 - 95 %

Storage temperature (T-T): -40 - 80 °C

Plug and Play: yes

Documents & Downloads

Datasheet

Datasheet 3796958 EXSYS EX-60305 PoE + Gigabit injector 90 W.

User & Safety Instructions

User & Safety Instructions 3796958 EXSYS EX-60305 PoE + Gigabit injector 90 W.

Description

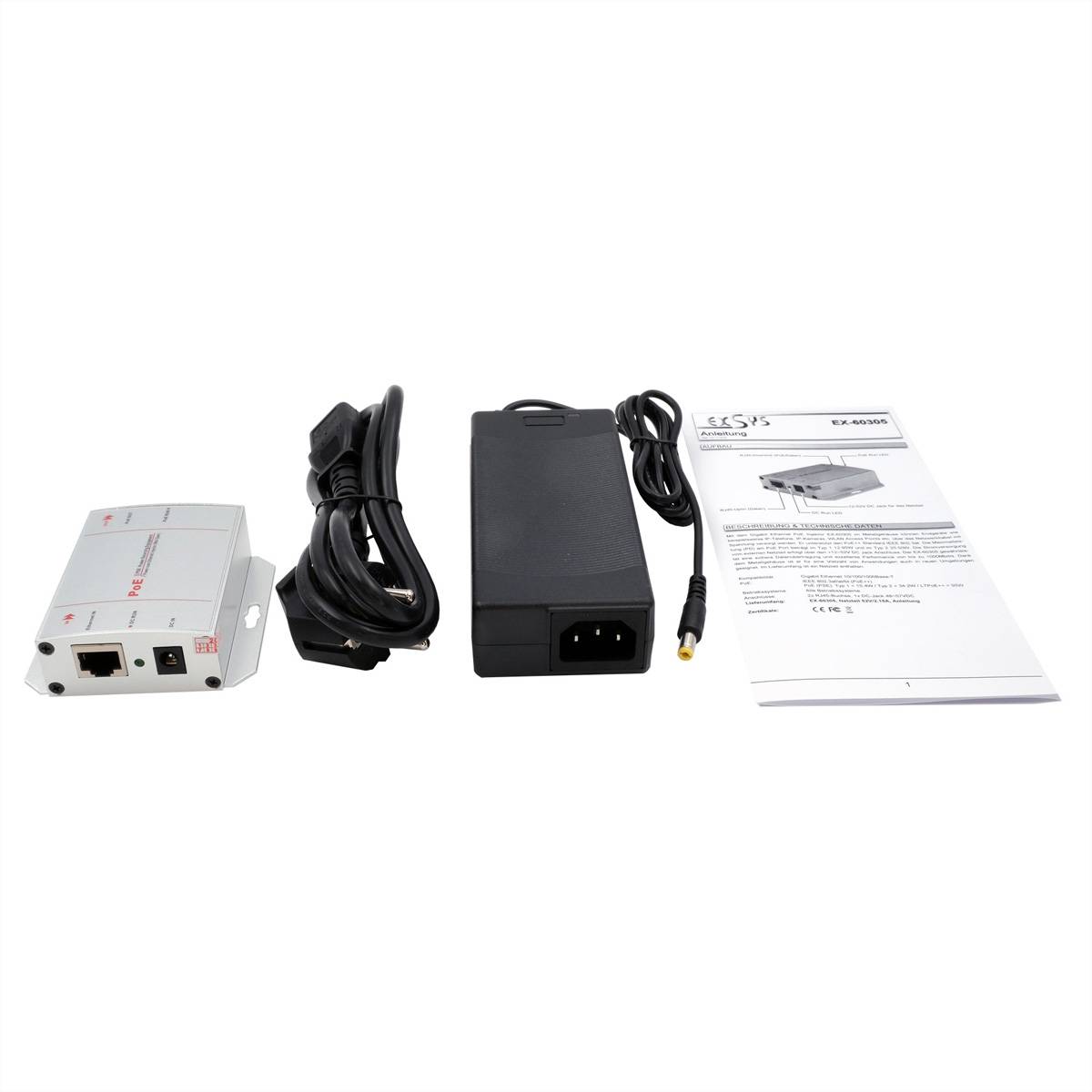

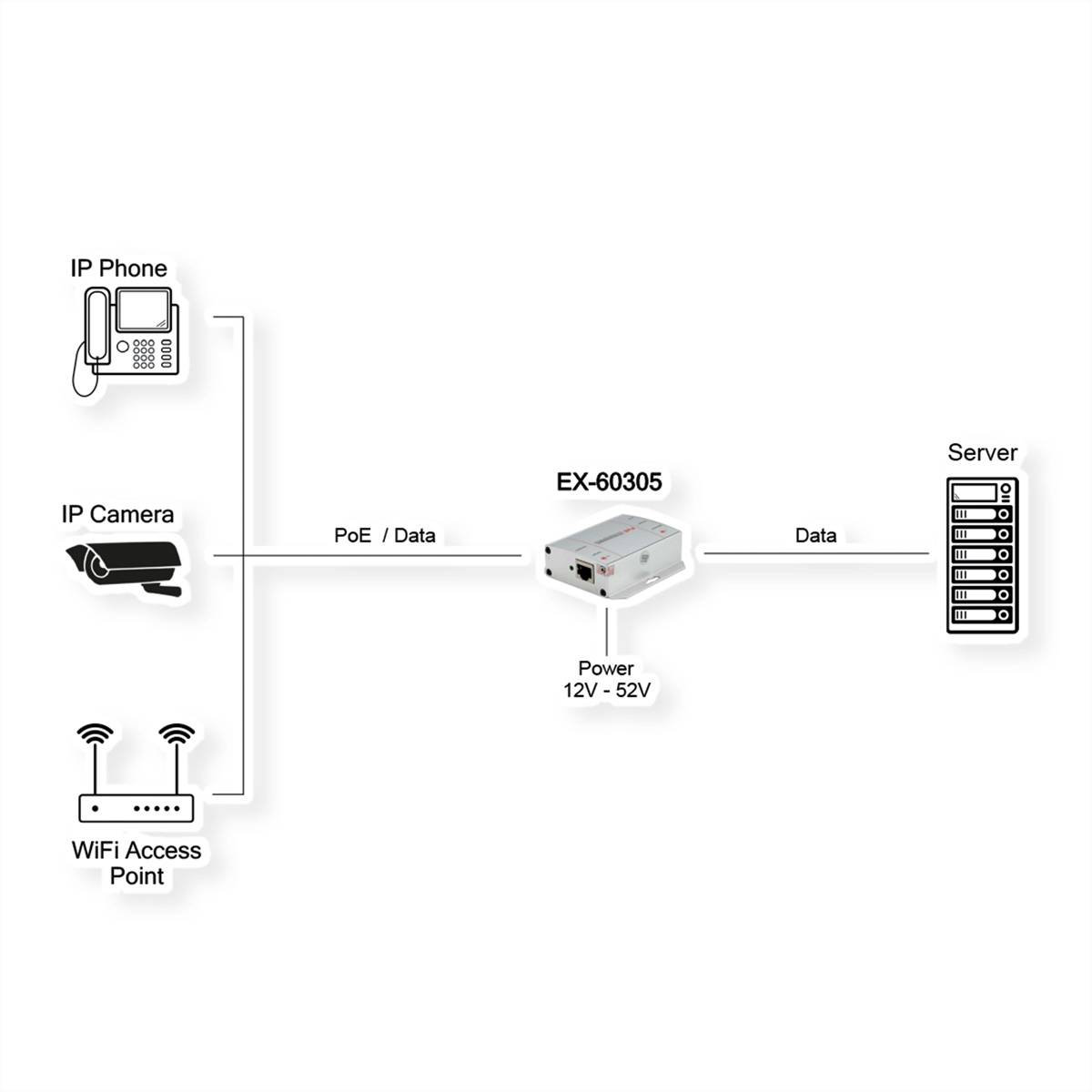

The Gigabit Ethernet PoE injector EX-60305 in a metal housing can be used to supply power to the end devices such as IP telephones, IP cameras, WLAN access points etc. via the network cable. It complies with the PoE++ standard IEEE 802.3bt. The maximum power (PD) at the PoE port is in the type 1 12.95W, in the type 2 25.5W and with LTPoE++ 90W. The external power supply is supplied via the +48~57V DC socket. The EX-60305 ensures a safe data transfer and excellent performance of up to 1000 Mbit/s. The robust metal housing is suitable for wall mounting. A 110W power supply is included in the delivery.
