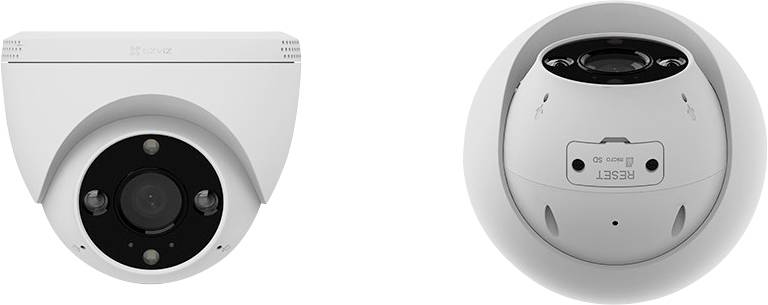

ezviz H4 303102822 Corded, Wireless IP CCTV camera 2304 x 1296 p
EAN:
Part number:
Item no:
Technical specifications
- POWER SUPPLY DC 12V / 1A
- MODEL: CS-H4-R201-1H3WKFL
- Video compression: H.265 / H.264
- Video bit rate:Ultra-HD; HD; standard. Adaptive bit rate.
- Max. Bit rate 3Mbps
- Wired network: RJ45 × 1(10M/100M Adaptive Ethernet Port)
- Frequency range: 2.4 GHz/ 2.4835 GHz
- Security: 64/128 bit WEP, WPA, WPA2
- Wi-Fi Pairing AP pairing
- Power consumption max. 8W
- Product type
CCTV camera
- CCTV features
Saves footage on SD card
2-way communication
Motion detector
IR LEDs
Identity recognition
- Camera type
Dome camera
- Power supply
12 V / DC
- Resolution (max.)
2304 x 1296 p
- Sensor size
9.4 mm (1/2.7")
- Sensor type
CMOS
- Focal length
2,8 mm
4 mm
6 mm
- Max. viewing angle hor.
106°
- Vertical viewing angle
122°
- Transfer type
Corded
Wireless
- Wi-Fi standard
IEEE802.11b
IEEE802.11g
IEEE802.11n
- IR range (max.)
30 m
- Used at
Outdoors
Indoors
- Type
microSD card (up to 512 GB)
- Width
106 mm
- Height
90 mm
- Depth
106 mm
- Dim
(W x H x D) 106 x 90 x 106 mm
- Weight
229 g
- Factory colour
White
IP67
- Signal standard
IP
- UKCA
yes
