Fein Cordless nibbler ABLK 18 1.3 CSE AS Set 71321062000 Operating voltage 18 V Battery voltage 18 V
EAN:
Part number:
Item no:
Number
Total (€ 645.00 / piece)
€ 645.00
incl. VAT
14-day return policy included
Highlights & Details
ALK 18 1.3 CSE AS SET
- Battery nibbler up to 1.3 mm
- ALK 18 1.3 CSE AS SET

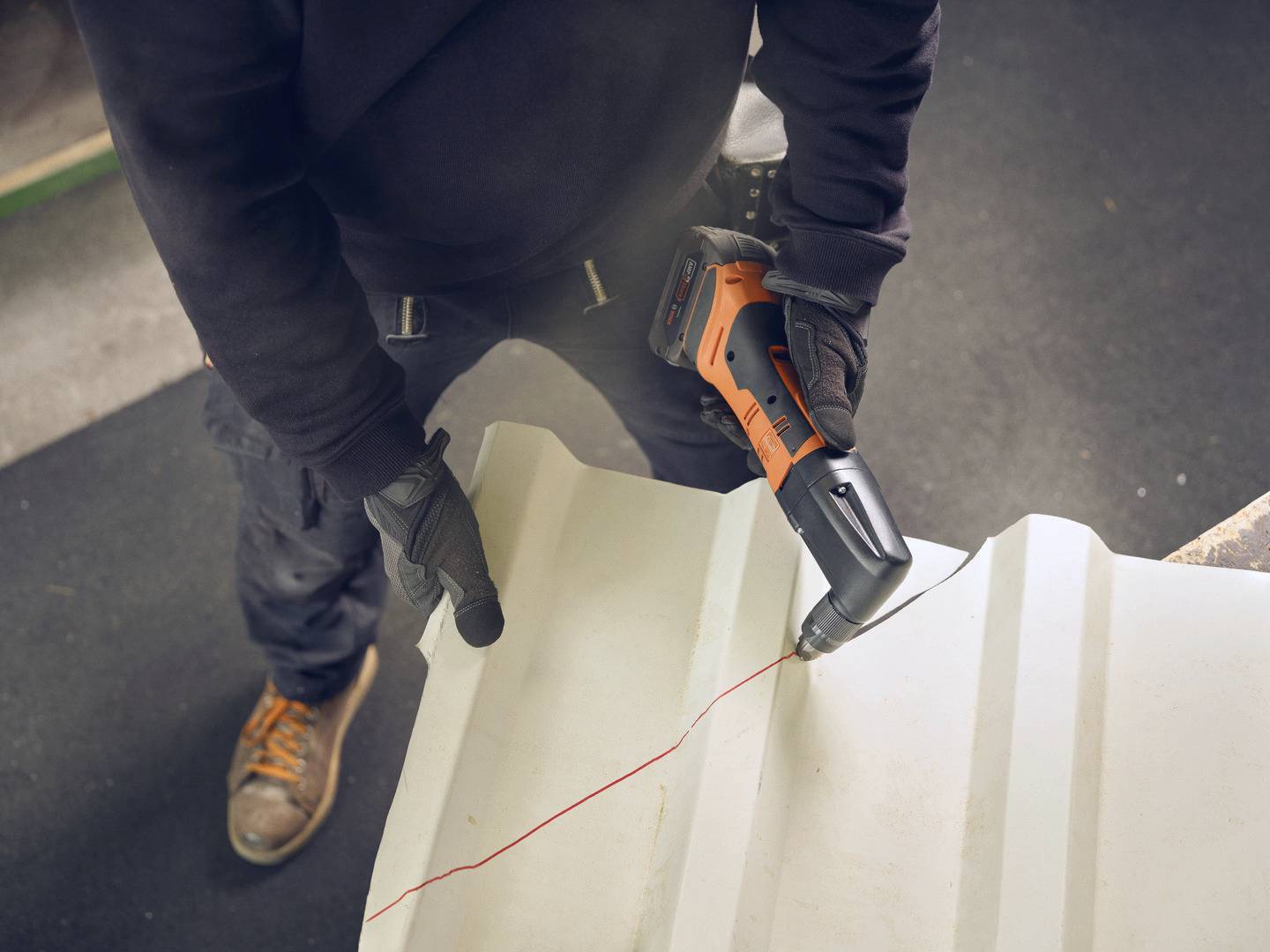

- Compact and curved knibbler for roof and facade construction
- Precise cuts in corrugated sheet up to 1.3 mm. Including additional set of stamps, matrices, permanent marker, masking tape and meter stick.
Technical specifications
- Battery voltage: 18 V
- Battery compatibility: Li-Ion / ProCORE Li-Ion
- Battery interface 18 V AMPShare
- Weight without rechargeable battery: 1.68 kg
- Stroke number 1000/1600 1/min
- Immersion-Ø with Matrix 19 mm
- Radius of the smallest curve (inside / outside): 15 / 20 mm
- Product type
Cordless nibbler
- Operating voltage
18 V
- Battery voltage
18 V
- Weight
1.68 kg
- Number of strokes (max.)
1600 /min
- Max. material thickness (aluminium strength: 250 N/mm²)
2 mm
- Max. material thickness (steel strength: 400 N/mm²)
1.3 mm
- Max. material thickness (steel strength: 600 N/mm²)
0.8 mm
- Max. material thickness (steel strength: 800 N/mm²)
0.6 mm
- Cutting speed (max.)
1.9 m/min
- Cutting width (max.)
4 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323896 Fein Cordless nibbler ABLK 18 1.3 CSE AS Set 71321062000 Operating voltage 18 V Battery voltage 18 V
Description
Battery nibbler up to 1.3 mm|ABLK 18 1.3 CSE AS Set|Compact and curved nibbler for roof and facade construction. Precise cuts in corrugated sheet up to 1.3 mm. Including additional set of stamps, matrices, permanent marker, masking tape and meter stick.
This text is machine translated.
This text is machine translated.
Features
- 66 m cutting capacity (in 0.8 mm plate) with one battery charge (GBA 5 Ah).
- In 45-degree increments through 360 ° variable adjustable cutting tool-rotating direction through matrix support
- Optimum handiness through extremely slim gear head.
- 1.9 m/min cutting speed for outstanding work progress.
- Variable cutting speed through electronically adjustable stroke rate.
- Short-term overlapping range up to 2.6 mm.
- Rotating seal for up to 30% longer service life.
- Proven MultiMaster motor with extraordinary power and stability.
- QuickIN quick change system of die and stamp.
- Low operating costs The stamp and die are exchanged independently of each other.
- Compatible with AMPShare-/ Bosch Professional 18 V batteries.
- Maximum work progress with AMPShare 18 V batteries: COOLPACK 1.0 technology provides a longer battery life compared to batteries without COOLPACK technology and thus enables longer operating times. ECP protects the battery against overloading, overheating and deep discharge.
- Best equipped for every use. Mobile working with the L-BOXX system.

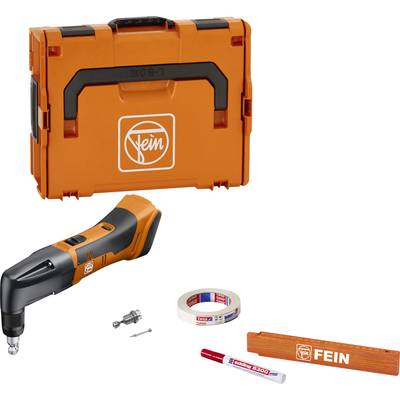

Scope of delivery
- 1 Matrix for corrugated sheet (30109169009) assembled
- 1 stamp (63602050000) fitted
- 1 Punch and die set (30109169030)
- 1 permanent marker (32133037000)
- 1 Painters's tape (32133038000)
- 1 Meter stick (18750283000)
- 1 plastic tool case (L-BOXX 136)
Hints
Without battery and without charger
