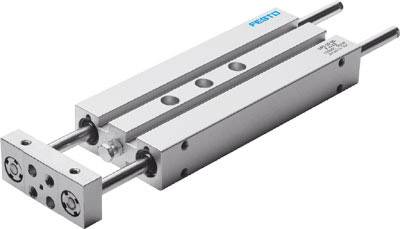

FESTO Dual piston cylinder 162038 DPZ-16-100-P-A-KF-S2 Stroke length: 100 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,115.00 / piece)
€ 1,115.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Dual piston cylinder DPZ-16-100-P-A-KF-S2
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Dual piston cylinder
- Stroke length
100 mm
- Max. operating pressure
10 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
162038
- Type
Double piston-cylinder DPZ -16-100-P-A-KF-S2 with two parallel piston rods, for position detection, with elastic damping rings in the end positions. Hub = 100 mm, adjustable end position range/length = 10 mm, piston diameter = 16 mm, operating mode drive unit = yoke, attenuation=P: elastic damping rings/boards on both sides
- Size
16
- Sealant
NBR
- Pneumatics connector
M5
- Piston rod material
Steel
- Piston rod diameter
16 mm
- Force (max.)
180 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
not relevant
