FESTO Linear drive 170842 DFM-20-30-P-A-GF Stroke length: 30 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 339.00 / piece)
€ 339.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

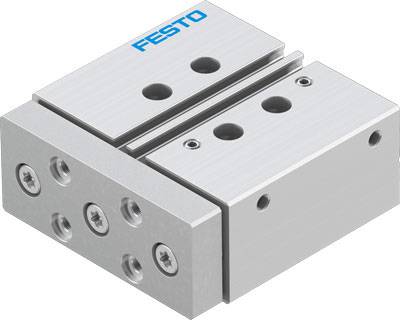

Linear drive DFM-20-30-P-A-GF
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Linear drive
- Stroke length
30 mm
- Max. operating pressure
10 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
170842
- Type
Guide cylinder DFM -20-30-P-A-GF with built-in navigation. Focus distance of the payload for yoke plate = 50 mm, Hub = 30 mm, piston diameter = 20 mm, operating mode drive unit = yoke, attenuation=P: elastic damping rings/boards on both sides
- Weight
850 g
- Size
20
- Sealant
NBR
- Pneumatics connector
M5
- Piston rod material
Steel (stainless)
- Piston rod diameter
20 mm
- Force (max.)
188 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1938233 FESTO Linear drive 170842 DFM-20-30-P-A-GF Stroke length: 30 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1938233 FESTO Linear drive 170842 DFM-20-30-P-A-GF Stroke length: 30 mm 1 pc(s)
