FESTO Pressure accumulator CRVZS-20 534845 G 1
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 885.00 / piece)
€ 885.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

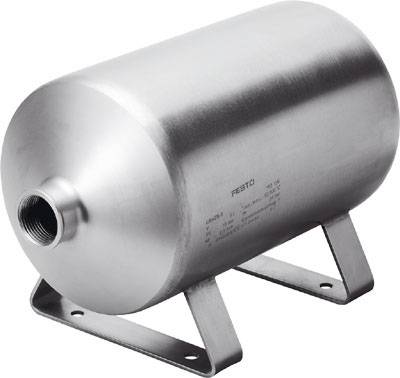

Pressure accumulator CRVZS-20
Technical specifications
- Material compressed-air storage: high-alloy stainless steel; Mounting Type: With Through Hole
- Operating medium
According to ISO 8573-1:2010 [compressed air -:-:-];; Nitrogen
- Product type
Pressure accumulator
- Connection
G 1
- Max. operating pressure
16 bar
- Type
Corrosion resistance class KBK: 3-strong corrosion stress
- Manufacturer part #
534845
- Operating pressure (min.)
-0.95 bar
- Weight
10208 g
- Media temperature (range)
-10 up to 100 °C
- Max. media temperature
100 °C
- Media temperature (min.)
-10 °C
- Medium
Compressed air
- Max. ambient temperature
100 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1937113 FESTO Pressure accumulator CRVZS-20 534845 G 1
User & Safety Instructions
User & Safety Instructions 1937113 FESTO Pressure accumulator CRVZS-20 534845 G 1
Description
· To compensate for pressure fluctuations and as a reservoir when suddenly auftretendem air consumption
· The provision of large quantities of compressed air for the supply of quick cycle ends drives
· In conjunction with throttle valves can delay times for the pressure build-up can be achieved
This text is machine translated.
· The provision of large quantities of compressed air for the supply of quick cycle ends drives
· In conjunction with throttle valves can delay times for the pressure build-up can be achieved
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
