Name: FESTO Vacuum cleaner ESS-30-SS 189301 M6 Nominal width (details) 3 mm Sealant VMQ (silicone)
Brand: FESTO
SKU: 2203879
Availability: BackOrder

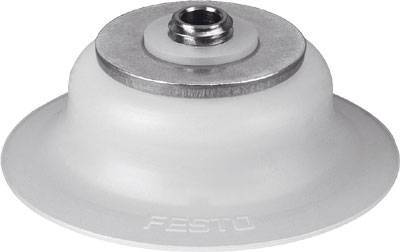

Suction vessel from Festo, made of transparent material with a metal connection at the top, used for lifting and moving objects through vacuum.

Image similar

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 13.99 / piece)

€ 13.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Connection position: Top
Mounting type: Via vacuum connection
Operating pressure: 0 ... 0.95 bar
Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
All mounting positions permitted
Color: Transparent
Holding force at nominal operating pressure 40.8 N.
Corrosion resistance class KBK: 1 - low corrosion stress
Food suitability: See extended material information
Min Workpiece radius R: 110 mm
Nominal operating pressure: -0.7 bar
Nominal diameter 3 mm
Product weight: 9 g
Transverse force at nominal operating pressure 23.5 N.
Suction unit diameter 30 mm
Suction cup shape: Round flat
Suction unit volume: 0.867 cm3
Shore hardness 50 +/- 5
Ambient temperature: -30 ... 180 °C
Vacuum connection: M6
Screw-in pin material: Nickel-plated brass
Galvanized and chrome-plated steel
Material suction unit: VMQ (silicone)
Material information: Free of copper and PTFE
Lab containing substances
Complies with RoHS
Allocation of suction cup holder: Size 4

Operating medium: Atmospheric air

Product type: Vacuum cleaner

Connection: M6

Max. operating pressure: 0.95 bar

Operating temperature: -30 °C (min)

Min. operating temperature: -30 °C

Type: Corrosion resistance class KBK: 1 - low corrosion stress

Manufacturer part #: 189301

Operating pressure (min.): 0 bar

Sealant: VMQ (silicone)

Weight: 9 g

Medium: Natural air

Nominal width: 3 mm

Max. ambient temperature: +180 °C

Min. ambient temperature: -30 °C

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Connection

Max. operating pressure

FESTO Vacuum cleaner ESS-30-SS 189301 M6 Nominal width (details) 3 mm Sealant VMQ (silicone)

Item no:2203879

Dispatches on Thu 22 Oct

Conrad Electronic

This article

0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

FESTO Vacuum cleaner ESS-30-BN 189382 M6 Nominal width (details) 3 mm Sealant NBR

Item no:2203950

Dispatches on Thu 22 Oct

Conrad Electronic

0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

FESTO Vacuum cleaner ESS-30-BS 189384 M6 Nominal width (details) 3 mm Sealant VMQ (silicone)

Item no:2203952

Dispatches on Thu 22 Oct

Conrad Electronic

0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

FESTO Vacuum cleaner ESS-30-BU 189383 M6 Nominal width (details) 3 mm Sealant PUR

Item no:2203951

Dispatches on Thu 22 Oct

Conrad Electronic

0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 18.99^*

FESTO Vacuum cleaner ESS-30-CN 189402 M6 Nominal width (details) 3 mm Enclosure material Brass (Ni-plated) Sealant NBR

Item no:2203966

Dispatches on Thu 22 Oct

Conrad Electronic

0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 31.99^*

FESTO Vacuum cleaner ESS-30-CS 189403 M6 Nominal width (details) 3 mm Sealant VMQ (silicone)

Item no:2203967

Dispatches on Thu 22 Oct

Conrad Electronic

0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 32.99^*

FESTO Vacuum cleaner ESS-30-EF 189345 M6 Nominal width (details) 3 mm Sealant FPM

Item no:2203923

Dispatches on Thu 22 Oct

Conrad Electronic

0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 37.99^*

FESTO Vacuum cleaner ESS-30-EN 189342 M6 Nominal width (details) 3 mm Enclosure material Brass (Ni-plated) Sealant Nitrile butadiene rubber

Item no:2203920

Dispatches on Thu 22 Oct

Conrad Electronic

0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

FESTO Vacuum cleaner ESS-30-ES 189344 M6 Nominal width (details) 3 mm Sealant VMQ (silicone)

Item no:2203922

Dispatches on Thu 22 Oct

Conrad Electronic

0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

FESTO Vacuum cleaner ESS-30-EU 189343 M6 Nominal width (details) 3 mm Enclosure material PUR Sealant PUR

Item no:2203921

Dispatches on Thu 22 Oct

Conrad Electronic

0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2203879 FESTO Vacuum cleaner ESS-30-SS 189301 M6 Nominal width (details) 3 mm Sealant VMQ (silicone)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
