Name: FESTO Valve accessories PWEA-AC-7A 538680 G 1/2 Enclosure material Aluminium (die-cast)
Brand: FESTO
SKU: 1940126
Availability: BackOrder

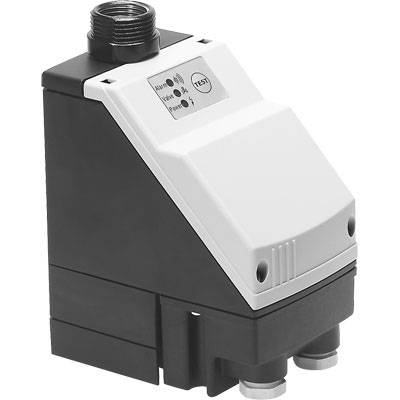

A white and black electric pressure switch with a user interface and multiple connections, used in water pipeline systems.

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 585.00 / piece)

€ 585.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Valve accessories PWEA-AC-7A

Technical specifications

Operating medium: According to ISO 8573-1:2010 [compressed air -:-:-]

Type: 538680

Product type: Valve accessories

Enclosure material: Aluminium (die-cast)

Connection: G 1/2

Max. operating pressure: 16 bar

Operating temperature: 1 up to +60 °C

Min. operating temperature: 1 °C

Max. operating temperature: +60 °C

Operation: Cable installation

Manufacturer part #: 538680

Operating pressure (min.): 0.8 bar

Function: 3/2 normally closed mono-stable

Weight: 700 g

Material: Plastic

Medium: Compressed air

Features: Electrically actuated

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1940126 FESTO Valve accessories PWEA-AC-7A 538680 G 1/2 Enclosure material Aluminium (die-cast)

User & Safety Instructions

User & Safety Instructions 1940126 FESTO Valve accessories PWEA-AC-7A 538680 G 1/2 Enclosure material Aluminium (die-cast)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
