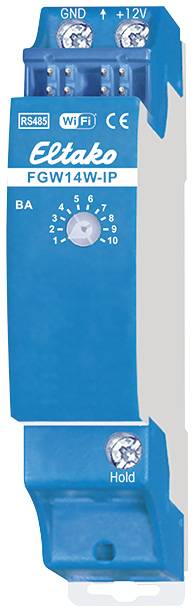

FGW14W-IP Eltako Gateway DIN rail
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 89.99 / piece)
€ 89.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Gateway
- Series
Eltako
IP20
- Operating voltage
12 V
- Mounting type
DIN rail
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
DRA (DIN-rail adapter)
RS-485
DC
0.8 W
FALSE
TRUE
FALSE
1
None
FALSE
FALSE
FALSE
FALSE
Other
FALSE
FALSE
FALSE
FALSE
12-12 V
IP20
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2636059 FGW14W-IP Eltako Gateway DIN rail
User & Safety Instructions
User & Safety Instructions 2636059 FGW14W-IP Eltako Gateway DIN rail
Description
Gateway with IP interface for series 14 electricity meter via WLAN. Bidirectional. Standby loss of only 0.8 watt. DIN-EN 60715 TH35 DIN rail mounting device. 1 division unit = 18 mm wide, 58 mm deep. The gateway is only 1 TE wide: For operation the gateway must be integrated in a WLAN. The WLAN connection uses 2.4 GHz frequency band. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. Operation in conjunction with FAM14 or FTS14KS. The Hold terminal is connected to the FAM14 or FTS14KS. The IP connection takes place via WLAN. The gateway transmits data from any Eltako electricity meter on the RS485 bus via the MQTT protocol. The data is transferred from RS485 bus to any external MQTT broker.
This text is machine translated.
This text is machine translated.
