Fischer 539447 Pipe clamp The FRS L UNIVERSAL 25-30 pipe clamp 25 pc(s)
EAN:
Part number:
Item no:
Number (Package size 25 pc(s))
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
14-day return policy included
Highlights & Details

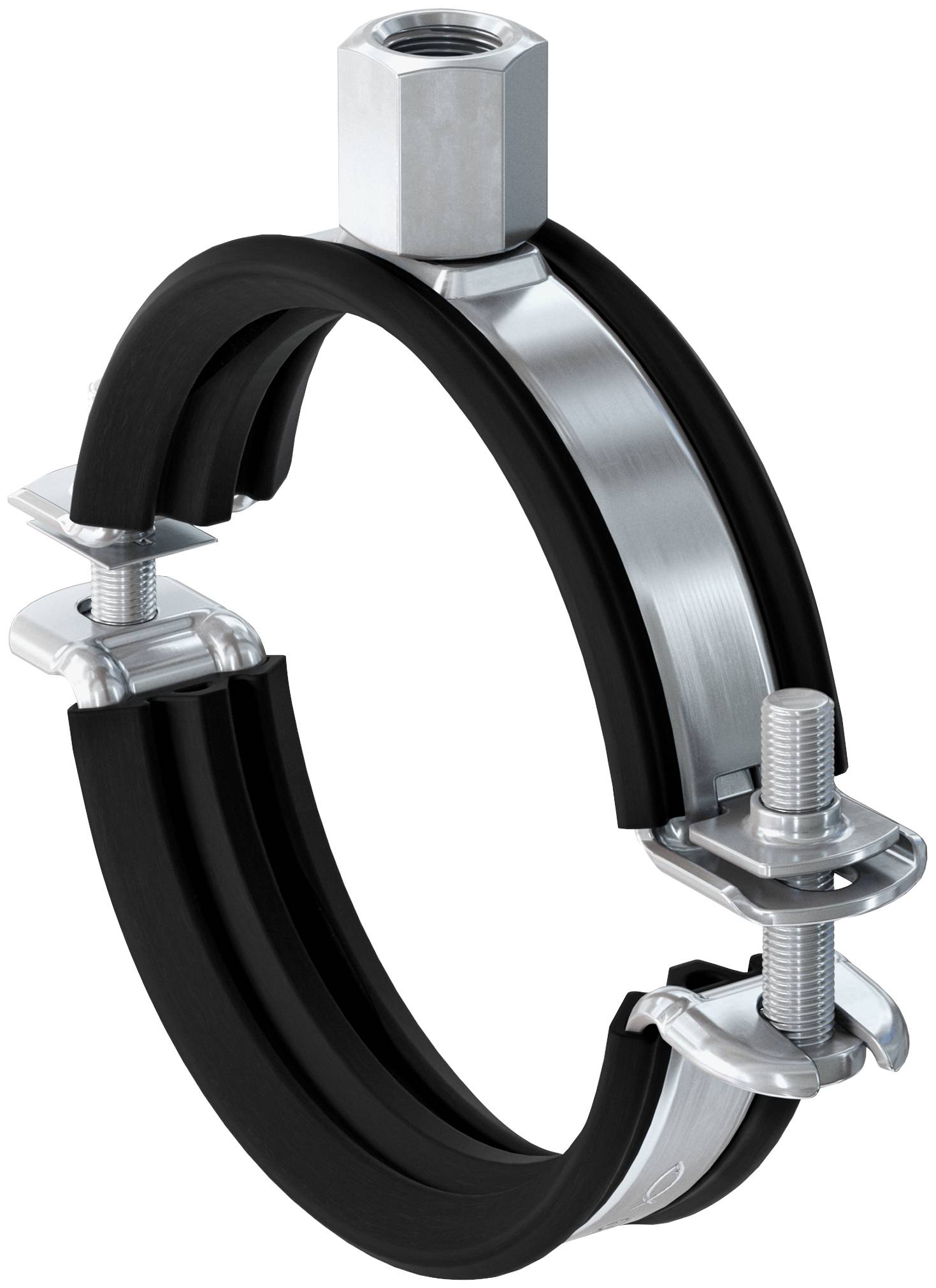

The FRS L UNIVERSAL 25-30 pipe clamp
- Profiled band for outstanding rigidity and stability
- Optimised hold between sound insulation insert and clamp band
- Combination thread for flexible connection options
- Losses protected screws
- Fire protection testing R120
- Sample wiring directive test MLAR R30
Technical specifications
- Nominal size: 3/4"
- Width x thickness clamp band: 18 x 1.0 mm
- Product type
Pipe clamp
- Content
25 pc(s)
- Material
Steel
- Clamping range
25 up to 30 mm
- Thread size
M8
M10
- Material properties
zinc galvanized
- Width
67 mm
- Height
53 mm
- Range (max.)
30 mm
- Clamping range (min.)
25 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1879321 Fischer 539447 Pipe clamp The FRS L UNIVERSAL 25-30 pipe clamp 25 pc(s)
Description
The Fischer FRS-L universal pipe clamp is a two-screw pipe clamp made of galvanized DD11 material quality with combination connection thread M 8/M 10 and a proof of sound protection. The quick-locking mechanism guarantees an easy and time-saving mounting. The two-bolt design allows optimum adaptation to the outside diameter of the pipe. This increases flexibility together with the combined connection thread. This allows pipes with an external diameter of 8 - 119 mm with threaded rod or stock screw to be fixed in accordance with the fire protection requirements of the fire resistance class R 120 and the MLAR in the interior. The pipe clamp conforms to the requirements of DIN 4109 with a chlorine and silicone-free soundproofing.
