Name: Fischer 539452 Pipe clamp The FRS L UNIVERSAL 60-66 pipe clamp 10 pc(s)
Brand: Fischer
SKU: 1878126
Price: 18.99 EUR
Availability: InStock

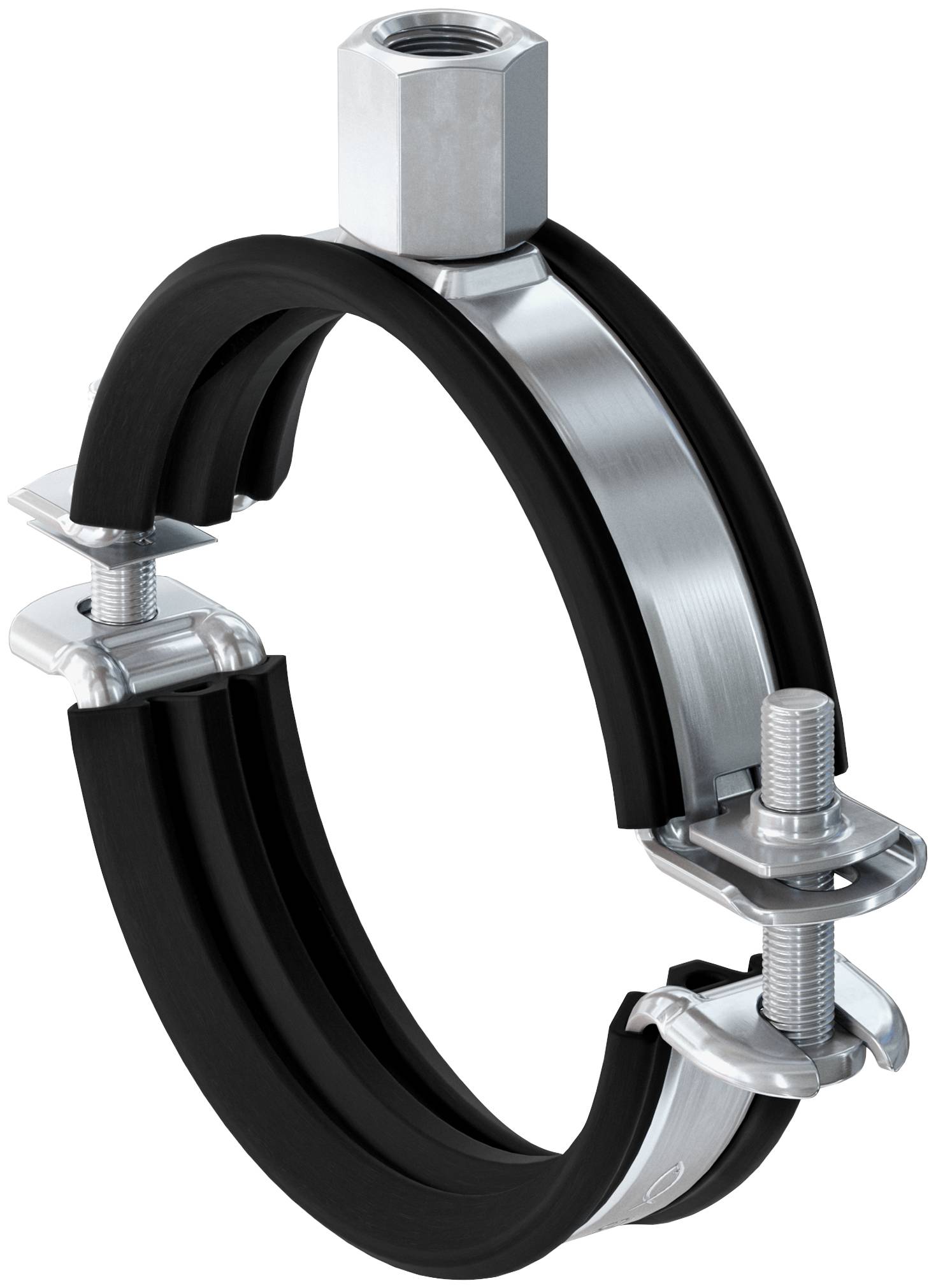

A metal pipe clamp with a black rubber-lined ring and threaded bolts, used to secure a pipe to a surface or support.<br>

Close-up of electrical cables secured in metal conduit supports against a concrete wall, showing a cable tray or mounting bracket assembly.

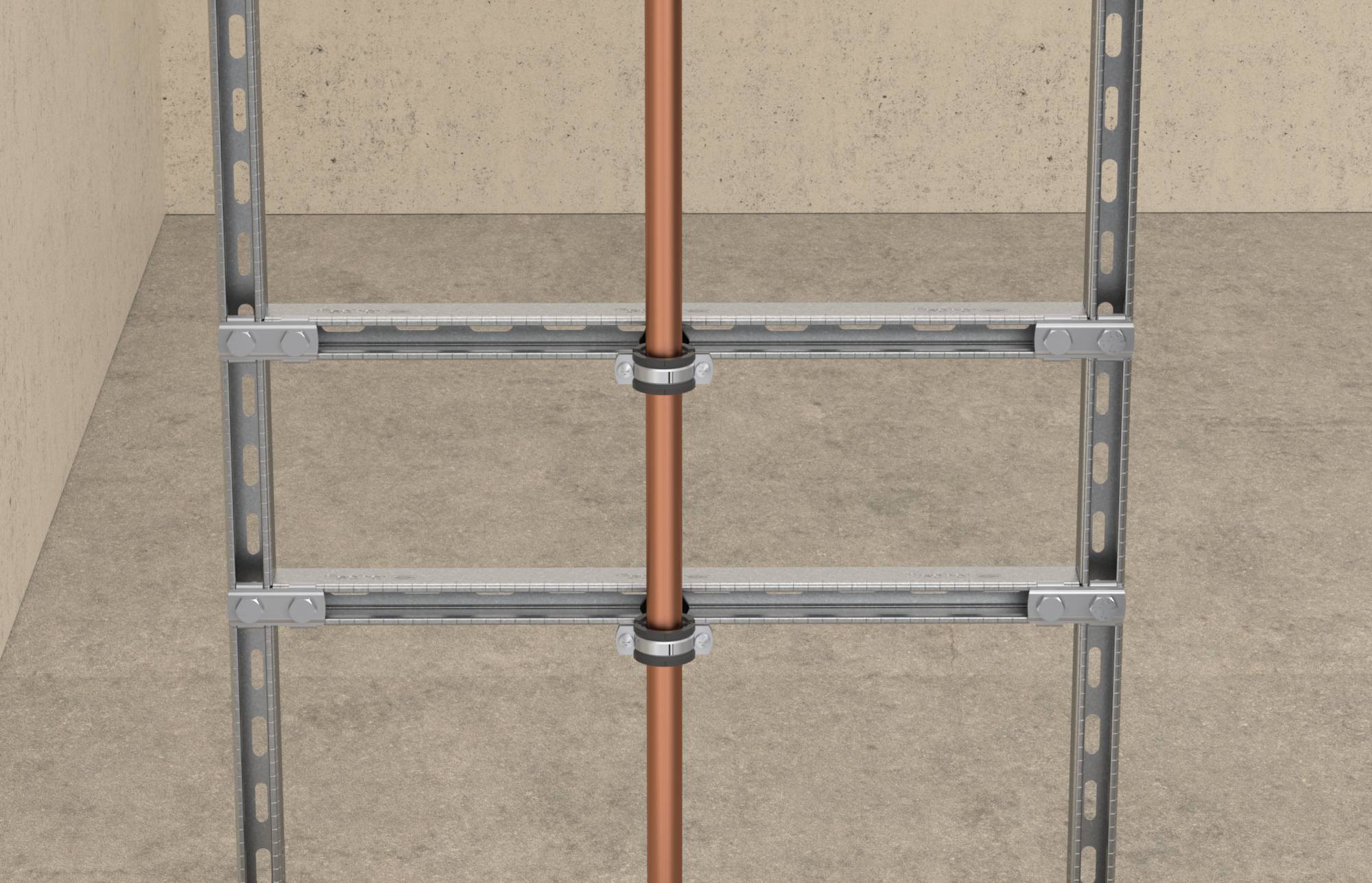

Metal shelving frame with a vertical copper pipe secured by two clamps in the center.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

20 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 18.99 / piece)

€ 18.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

The FRS L UNIVERSAL 60-66 pipe clamp

Profiled band for outstanding rigidity and stability
Optimised hold between sound insulation insert and clamp band
Combination thread for flexible connection options
Losses protected screws
Fire protection testing R120
Sample wiring directive test MLAR R30

Technical specifications

Nominal size: 2"
Width x thickness clamp band: 18 x 1.2 mm

Product type: Pipe clamp

Content: 10 pc(s)

Material: Steel

Clamping range: 60 up to 66 mm

Thread size: M8
M10

Material properties: zinc galvanized

Width: 104 mm

Height: 90 mm

Range (max.): 66 mm

Clamping range (min.): 60 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1878126 Fischer 539452 Pipe clamp The FRS L UNIVERSAL 60-66 pipe clamp 10 pc(s)

User & Safety Instructions

User & Safety Instructions 1878126 Fischer 539452 Pipe clamp The FRS L UNIVERSAL 60-66 pipe clamp 10 pc(s)

Description

The Fischer FRS-L universal pipe clamp is a two-screw pipe clamp made of galvanized DD11 material quality with combination connection thread M 8/M 10 and a proof of sound protection. The quick-locking mechanism guarantees an easy and time-saving mounting. The two-bolt design allows optimum adaptation to the outside diameter of the pipe. This increases flexibility together with the combined connection thread. This allows pipes with an external diameter of 8 - 119 mm with threaded rod or stock screw to be fixed in accordance with the fire protection requirements of the fire resistance class R 120 and the MLAR in the interior. The pipe clamp conforms to the requirements of DIN 4109 with a chlorine and silicone-free soundproofing.

This text is machine translated.
