Name: fischertechnik 511938 3-axle robot with gripper 24V Simulator
Brand: fischertechnik
SKU: 2861952
Availability: SoldOut

Robotic arm constructed from red and black building blocks on a platform, with multiple joints and motors, wired to a control unit.

A red robotics construction on a plate with electronic components and cables.

Colourful cables are mounted on an electronic circuit board on a black grid. Right plate connected with a red housing.

A student group is working together on a technical construction project with red and black modules in a modern classroom.

A group of seven young adults is working together on a complex technical model made of red and black building blocks.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 895.00 / piece)

€ 895.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

3-axis robot with 24 V gripping pliers

Ideal training, simulations and demonstration model for advanced training, industrial automation and industry 4.0/digitization
Already built, stable training model
Mounted on stable wooden board, packaging of the model in stable carton
Available in the 9V standard voltage as well as in the worldwide 24V industry standard
IMPORTANT: A 24 V PLC is absolutely necessary for operation

Technical specifications

Digital inputs 8Outputs 24V: 8

Product type: Simulator

Type: 3-axle robot with gripper 24V

Operating voltage: 24 V

Documents & Downloads

Datasheet

Datasheet 2861952 fischertechnik 511938 3-axle robot with gripper 24V Simulator

User & Safety Instructions

User & Safety Instructions 2861952 fischertechnik 511938 3-axle robot with gripper 24V Simulator

Description

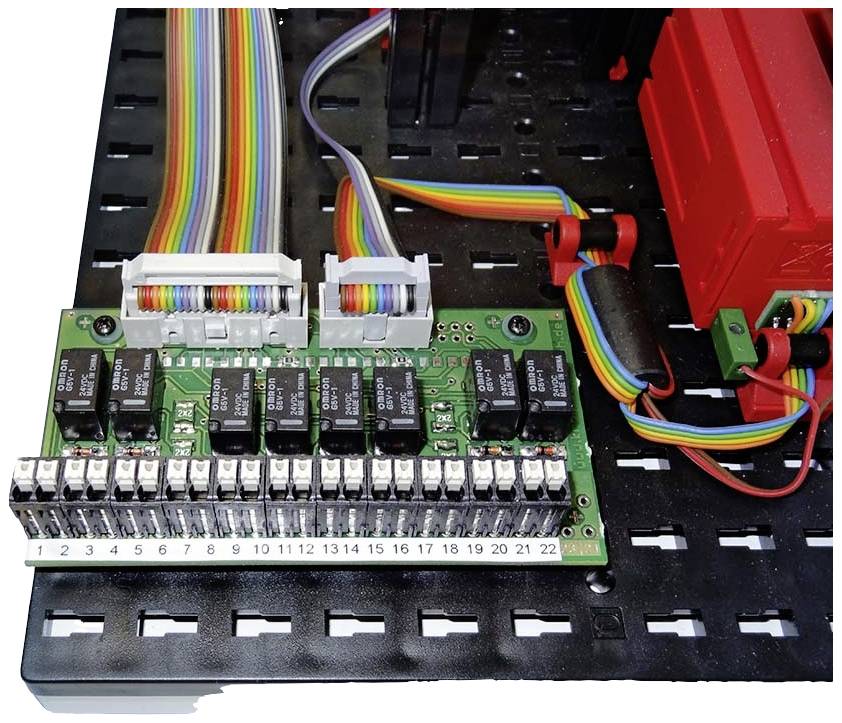

The 3-axis robot with grip tongs positions the work pieces quickly and precisely in three-dimensional space. Degrees of freedom: Axis 1: Rotate 180°, axis 2: Forward/backward 90 mm, axis 3: Raise/lower 150 mm. The model Ideal can be combined with the training models "conveyor belt", "punching machine" and "clock line".Connection to PLC control: The model has a PCB with relay for reversing the direction of rotation of the motors. All inputs and outputs are lead through pin headers (26-pole, 2.54mm pitch) as well as on terminal blocks with plug-in connection (Push-In).

This text is machine translated.

Scope of delivery

2x XS motor (DC motor)2x encoder motor (DC motor with magnetic encoder)4x button (limit switch)

Hints

Additional teaching material:The innovative fischertechnik teaching material helps you to convey practical technical understanding and to communicate it to your students or apprentices. The accompanying didactic manual with teacher and teaching material offers models and tasks for fast preparation of the teaching and contains problems and solutions, hand moves and templates.The teaching materials can be downloaded free of charge from the eLearning portal.
