Fluke 107/EUR Handheld multimeter Digital CAT IV 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 155.45 / piece)
€
Highlights & Details
CAT III Digital multimeter in compact format Fluke 107
- AC and DC voltage up to 600 V.
- AC and DC current up to 10 A.
- Resistance and continuity to detect broken wires
- Hold-function for measured value and background-lit display for safe and quick working
Technical specifications
- Voltage reading range DC (min.)
0.001 V
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.001 A
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.001 mA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
400 Ω to 40 MΩ
- Reading range - capacity
50 nF to 1000 μF
- Frequency reading range
50 Hz to 100 kHz
- Measurement type (details)
Average
- Frequency range
40 Hz to 500 Hz
- Power supply (details)
3 V
- Height
142 mm
- Width
69 mm
- Length
28 mm
- Weight
200 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
107/EUR
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 28 x 69 x 142 mm
IP40
Documents & Downloads
Datasheet
Datasheet 3521389 Fluke 107/EUR Handheld multimeter Digital CAT IV 600 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 3521389 Fluke 107/EUR Handheld multimeter Digital CAT IV 600 V Display (counts): 6000
Description
The Fluke 107 digital multimeter is a compact, handy device designed for easy operation and daily troubleshooting. It is small enough to fit in a shirt pocket and robust enough to withstand daily operations and even drop heights of 1 meters. This average measuring device provides reliable measurements for general applications. With the CAT III 600 V safety rating it meets a high safety standard. The Fluke 107 offers a comfortable grip, weighs only 200 g and is easy to transport, Ideal for quick tests and an initial diagnosis.
This text is machine translated.
This text is machine translated.
Features
- AC and DC voltage measurement
- AC and DC current measurement
- Resistance measurement
- Capacitance testing
- Diode test
- Frequency and duty cycle testing and other functions for basic electrical
- Maintenance, electrical measurements and electronic measurement applications
Scope of delivery
- TL75 Hard Point™ Test Lead Set
- Two AAA batteries (inserted)
- Intelligent multi-purpose magnetic strap SmartStrap
Frequently Bought Together
(*All information is plus legal VAT) This article
Fluke 107/EUR Handheld multimeter Digital CAT IV 600 V Display (counts): 6000
Conrad Electronic
€ 155.45*

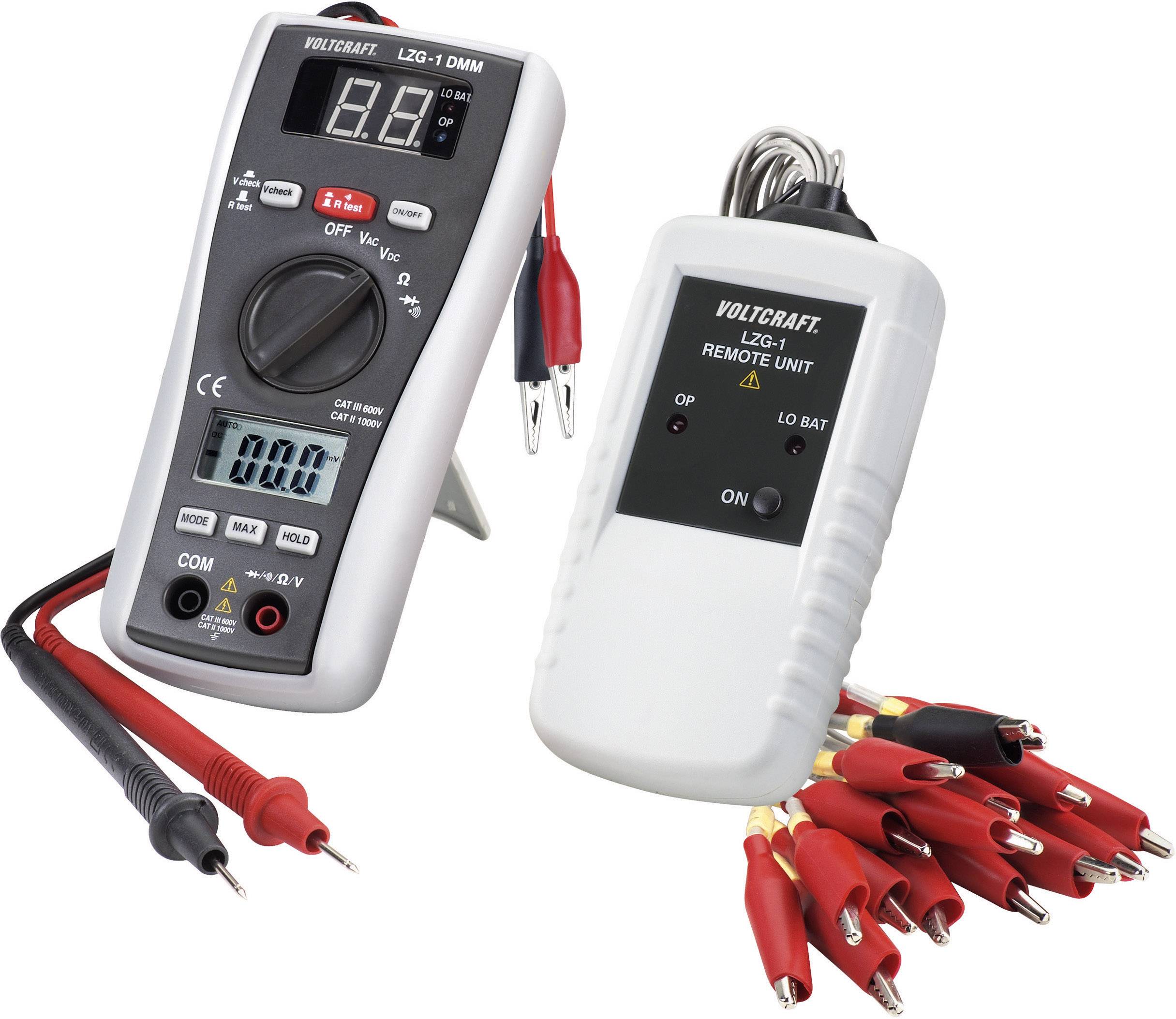

VOLTCRAFT LZG-1 DMM Line assigning device
