Fluke 87V-MAX Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 844.54 / piece)
€
Highlights & Details
True RMS digital multimeter
- CAT III 1000 V, CAT IV 600 V
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 50 MΩ
- Reading range - capacity
0.01 nF - 9999 µF
- Frequency reading range
0.01 Hz – 199.99 kHz
- Temperature
+1090 - -200 °C
- Basic accuracy
0.05 %
- Interfaces
none
- Power supply (details)
3x AA battery
- Height
60 mm
- Width
101 mm
- Length
215 mm
- Weight
698.5 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
87V-MAX
- Display
Digital
- Dim
(L x W x H) 215 x 101 x 60 mm
Documents & Downloads
Datasheet
Datasheet 2344751 Fluke 87V-MAX Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V
User & Safety Instructions
User & Safety Instructions 2344751 Fluke 87V-MAX Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V
Description
The Fluke 87V MAX true-rms digital multimeter sets new standards for working in extreme conditions: The advanced features and high accuracy make most problems in electrical systems recognizable. The 87V MAX is specified according to IP 67 (water and dust proof); the extended operating temperature is between -15 °C and +55 °C (-40 °C for up to 20 minutes); the devices are designed for 95% humidity and have been developed and tested to withstand a fall from 4 meters without any problem. The Fluke 87V MAX true-rms digital multimeter is designed for the most extreme environmental conditions. The 87V MAX also has an industrial-grade outer casing and a removable holster, which also serves as a holder for measuring lines and measuring tips for one-handed operation.
This text is machine translated.
This text is machine translated.
Frequently Bought Together
(*All information is plus legal VAT) This article
Fluke 87V-MAX Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V
Conrad Electronic
€ 844.54*
VOLTCRAFT Industrial LR6 AA battery Alkali-manganese 3000 mAh 1.5 V 24 pc(s)
Conrad Electronic
€ 9.24*

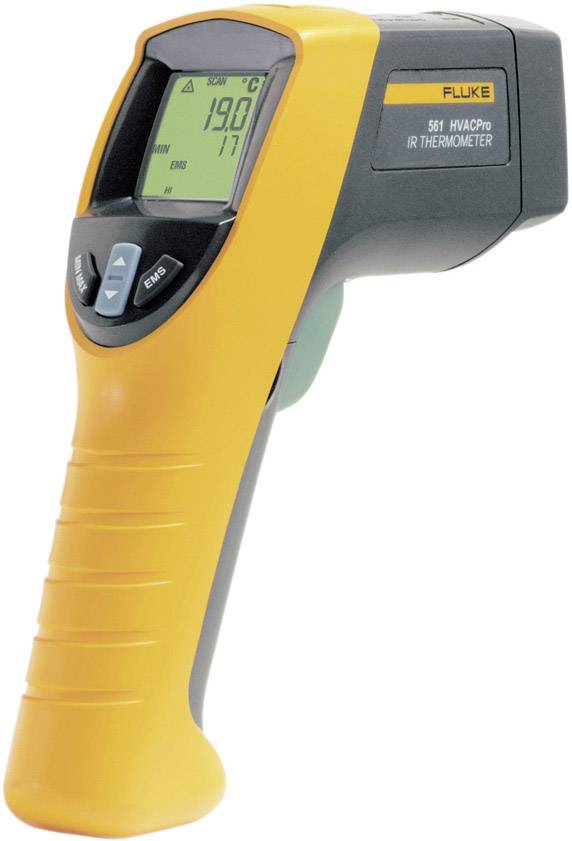

Fluke 561 IR thermometer Display (thermometer) 12:1 -40 - +550 °C Contact measurement
