1/6
Fluke 17B+/EUR Handheld multimeter Digital CAT III 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 168.06 / piece)
€
Highlights & Details
Fluke 17B+ digital multimeter
- Safety rating: CAT III, 600 V
- Large, easily readable display with Heller background lighting
- Over-voltage indicator
- Frequency and Temperature measurement
- Voltage, resistance, continuity and capacity
- Input connection for AC and DC measurements up to 10 A.
- Diode test and hold function for measurement value
Technical specifications
- Bright backlight
- Overload protection
- Over-voltage indicator
- Measures frequency, temperature and duty cycle
- Diode test
- Measured value holding function
- Voltage reading range DC (min.)
4 V
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
4 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
400 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
400 µA
- Amperage reading range AC (max.)
10 kA
- Reading range - resistance
400.0 Ω to 40.00 MΩ
- Reading range - capacity
40.00 nF to 1000 μF
- Frequency reading range
50 Hz to 100 kHz
- Temperature
−55 to 400 °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.5 %
- Frequency range
10 Hz up to 100 kHz Hz
- Power supply (details)
3 V
- Height
183 mm
- Width
91 mm
- Length
49.5 mm
- Weight
455 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
17B+/EUR
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 49.5 x 91 x 183 mm
- Temperature reading range (max.)
400 °C
- Temperature reading range (min.)
-50 °C
- Interfaces
4 mm socket
IP40
Documents & Downloads
Datasheet
Datasheet 3521387 Fluke 17B+/EUR Handheld multimeter Digital CAT III 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 3521387 Fluke 17B+/EUR Handheld multimeter Digital CAT III 600 V Display (counts): 4000
Description
The Fluke 17B+ digital multimeter is a robust, portable measuring device designed for single-handed operation, even with gloves. It measures AC/DC voltages up to 1000 V, currents up to 10 A and supports the measurement of resistance, capacity, frequency and duty cycle. It includes a K type thermocouple for temperature measurements and supports relative measurements to detect changes such as voltage drops or temperature shifts. With the CAT III 600 V safety rating it is suitable for testing electrical devices, power sockets and circuits. The Fluke 17B+ is ideal for DIYers and young electricians looking for a reliable and versatile multimeter with additional temperature and relative measurement functions.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Test leads with caps
- Thermocouple temperature measurement sensor
- 2 AA-batteries
- User manual
Frequently Bought Together
(*All information is plus legal VAT) This article
Fluke 17B+/EUR Handheld multimeter Digital CAT III 600 V Display (counts): 4000
Conrad Electronic
€ 168.06*
VOLTCRAFT MS-2 Safety test lead et Banana jack 4 mm Test probe Black, Red 1 Set
Conrad Electronic
€ 17.64*
VOLTCRAFT LZG-1 DMM Line assigning device
Conrad Electronic
€ 47.05*

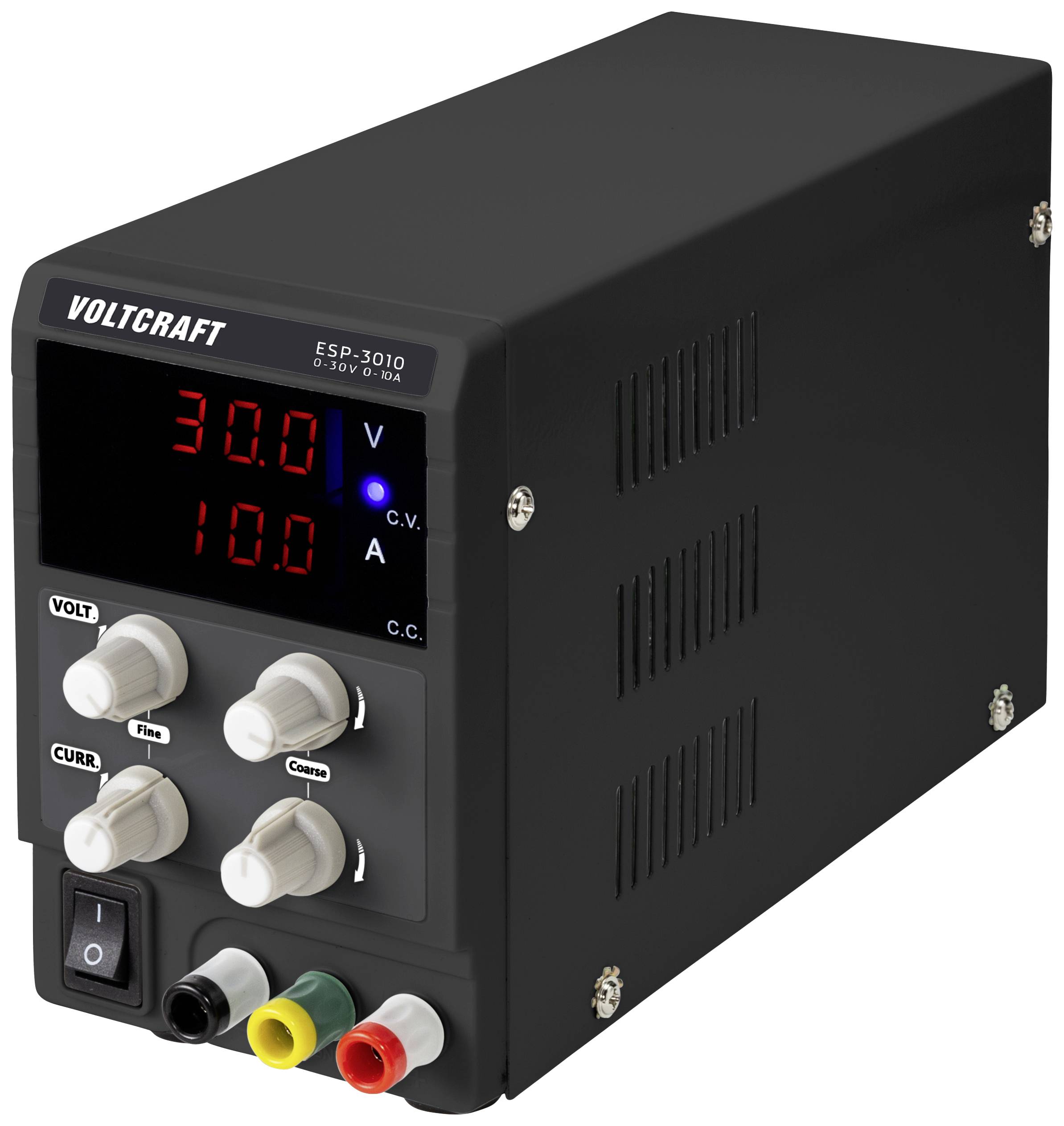

VOLTCRAFT ESP-3010 Bench PSU (adjustable voltage) 0 - 30 V DC 0 - 10 A 300 W 4 mm connector slim type No. of outputs 1 x
