Fluke 368 FC Clamp meter Digital Data logger CAT III 600 V Display (counts): 3300
EAN:
Part number:
Item no:
Total (€ 1,046.22 / piece)
€ 1,046.22
plus VAT.
Highlights & Details

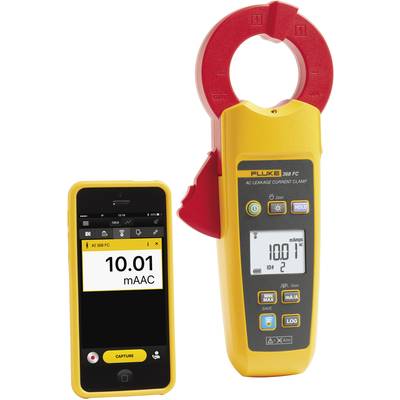

Real effective leakage current measuring instrument Fluke 368 FC
- CAT III 600 V
- Resolution 0,001 mA
- Fluke Connect®
- Clamp opening 40 mm
Technical specifications
- Product type
Clamp meter
- A AC reading range (min.)
0.010 mA
- Amperage reading range AC (max.)
60 A
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Frequency range
40 Hz -1 kHz
- Interfaces
Bluetooth®
- Height
46 mm
- Width
101 mm
- Length
234 mm
- Weight
500 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Current reading
AC
- Type
368 FC
- Display
Digital
- Display (counts)
3300
- Dim
(L x W x H) 234 x 101 x 46 mm
- Features
Data logger
- Opening range of current clamps
40 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1500112 Fluke 368 FC Clamp meter Digital Data logger CAT III 600 V Display (counts): 3300
Conformity certificate
Conformity certificate 1500112 Fluke 368 FC Clamp meter Digital Data logger CAT III 600 V Display (counts): 3300
Description
With the real effective leakage current measuring instrument Fluke 368 FC, users can record measured values over the course of time, document, record and compare to avoid unplanned downtime and the intermittent triggering of residual current circuit-breakers and residual current protective devices to determine, without the devices out of operation.
Fluke 368 FC is fitted with an especially wide opening pliers (40 mm) for large conductor diameter. The jaws are fully shielded, the already very low leakage currents to capture and external electromagnetic interference to a minimum.
In addition, the clip-on ammeter Fluke 368 FC wireless data connections via Connect. As part of Fluke Connect® - the extent successful measuring system with over 40 wireless measuring devices and software allows you to 368 FC tracing leakage currents in the course of time and thus helps in the identification of potential problems before they cause major failures.
This text is machine translated.
Fluke 368 FC is fitted with an especially wide opening pliers (40 mm) for large conductor diameter. The jaws are fully shielded, the already very low leakage currents to capture and external electromagnetic interference to a minimum.
In addition, the clip-on ammeter Fluke 368 FC wireless data connections via Connect. As part of Fluke Connect® - the extent successful measuring system with over 40 wireless measuring devices and software allows you to 368 FC tracing leakage currents in the course of time and thus helps in the identification of potential problems before they cause major failures.
This text is machine translated.
Features
- • Accurate Real-effective value measurements in complex, non-sinusoidal signals
- • 40 mm clamp opening
- • Measurement up to 60A, highest resolution of 1 μA
- • Einschaltbare eliminates unwanted noise filter function
- • Min/max/average values and hold function
- • Front-facing LED work light for working in dark control cabinets
- • Display with background lighting with automatic switch-off of the background lighting and device for extending the battery life
- • Logging in the internal memory: max. 65,000 measuring points
Scope of delivery
- Upholstered carry bag · Security Guide · Batteries: 2 x AA.
- This text is machine translated.
Hints
Smartphone is not included in the delivery.
