Flush-type connector SACC-SQ-M12MS-17CON-25F/0,5 1441600 Phoenix Contact
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connector type
Plug, mount
- Connector standard
Sensor connector
- Connection side A
Cable, open end
- Connection side B
M12 plug, built-in
- No. of pins
17
- Cable length
0.50 m
- Jacket material
TPE
- Nominal voltage
30 V
- Nominal current
1.50 A
- Nominal current - rounded value
1.5 A
- Connector cross-section (max.)
0.14 mm²
- Outside Ø
1.10 mm
- Connection
Open end cable
- Thread type connection side
M12
- Coding
A
IP67
- Content
1 pc(s)
- Manufacturer part #
1441600
- Type
SACC-SQ-M12MS-17CON-25F/0,5
- Product type
Sensor/actuator built-in connector
Documents & Downloads
Datasheet
Datasheet 719906 Flush-type connector SACC-SQ-M12MS-17CON-25F/0,5 1441600 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 719906 Flush-type connector SACC-SQ-M12MS-17CON-25F/0,5 1441600 Phoenix Contact
Description

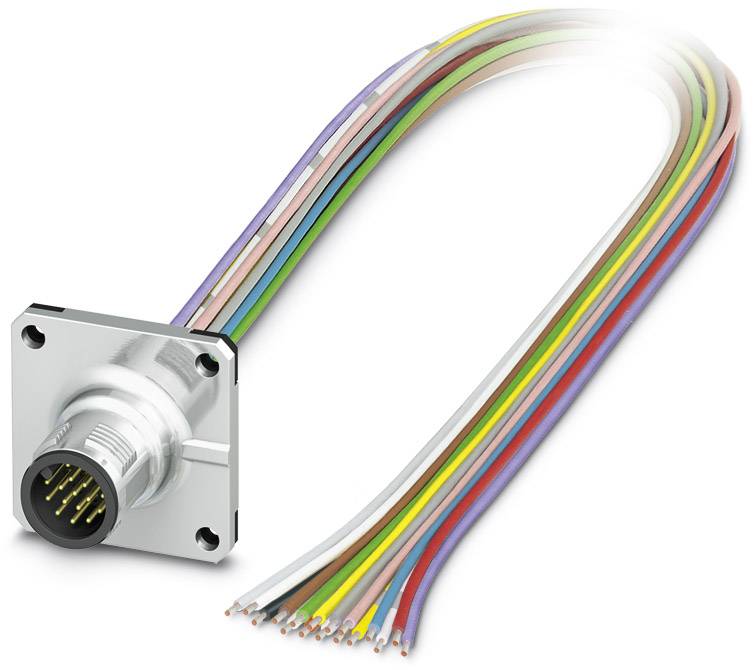

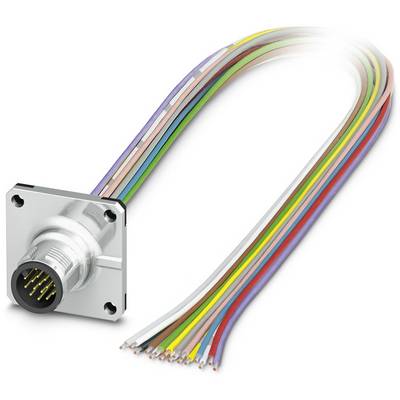

Sensor/actuator flush-type connector, 17-pos., M12, A-coded, front/square flange mounting, with 0.5 m TPE litz wire, 17 x 0.14 mm²
Hints
Special order, no right of withdrawal.
