Buy FRITZFURT 2800-6105 Wood fraise set 8-piece 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm Total length 190 mm Hex shank 1 Set

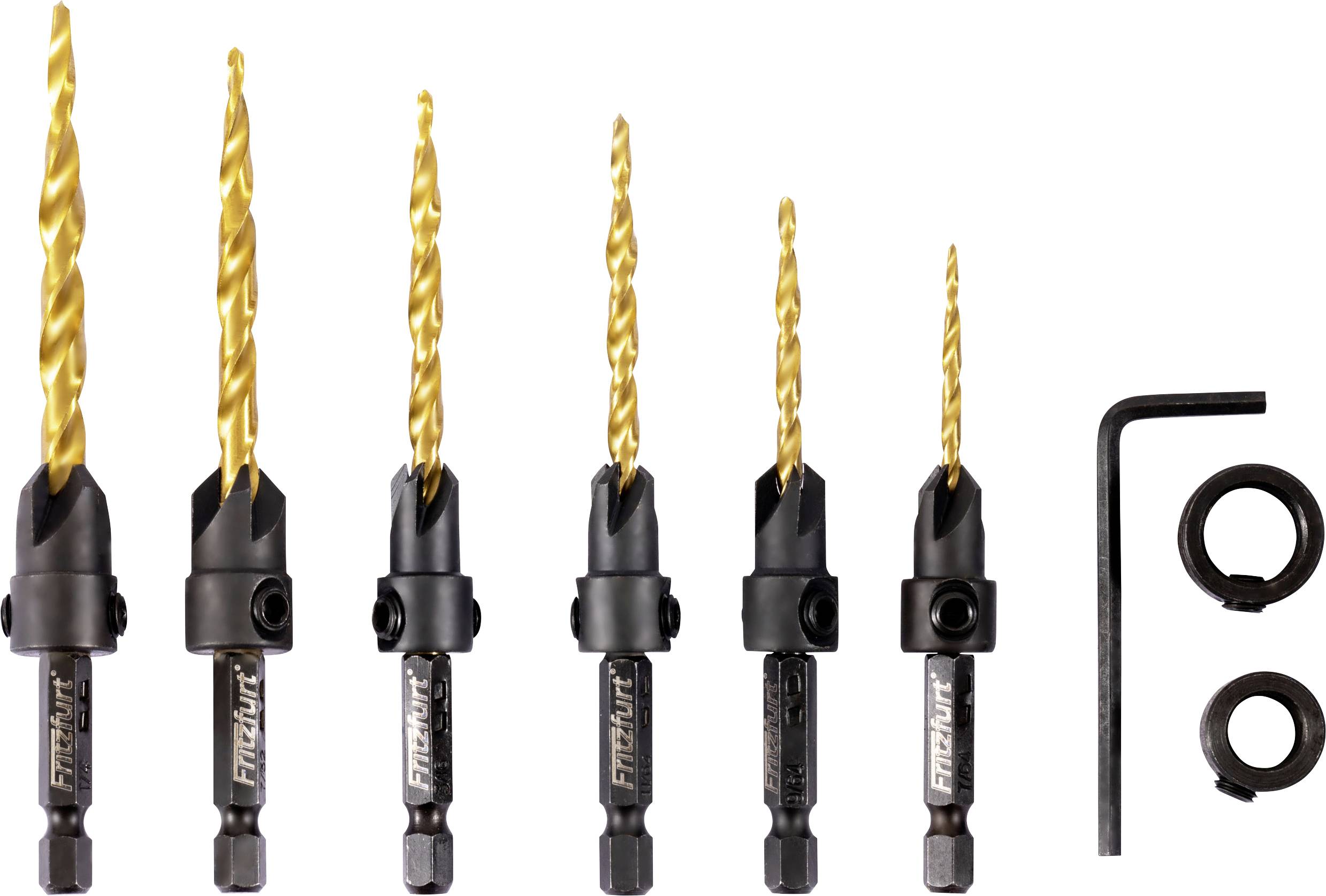

A set of six black and gold drill bits of varying sizes, with a hex key and two circular attachments, arranged side by side.

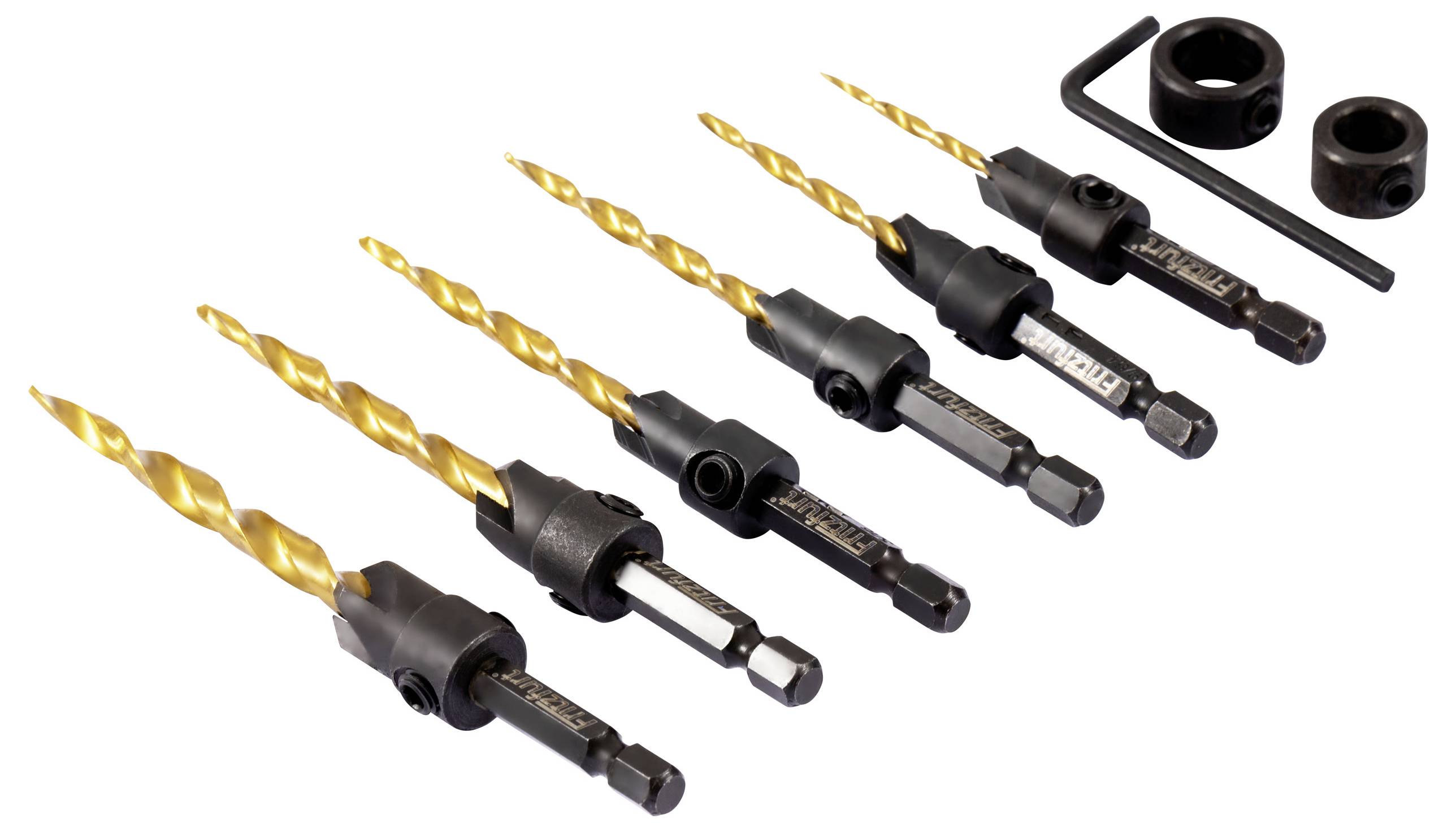

Six different sizes of gold-colored drill bits with black hex shanks and depth stops, set in a row beside two black rings and an Allen key.

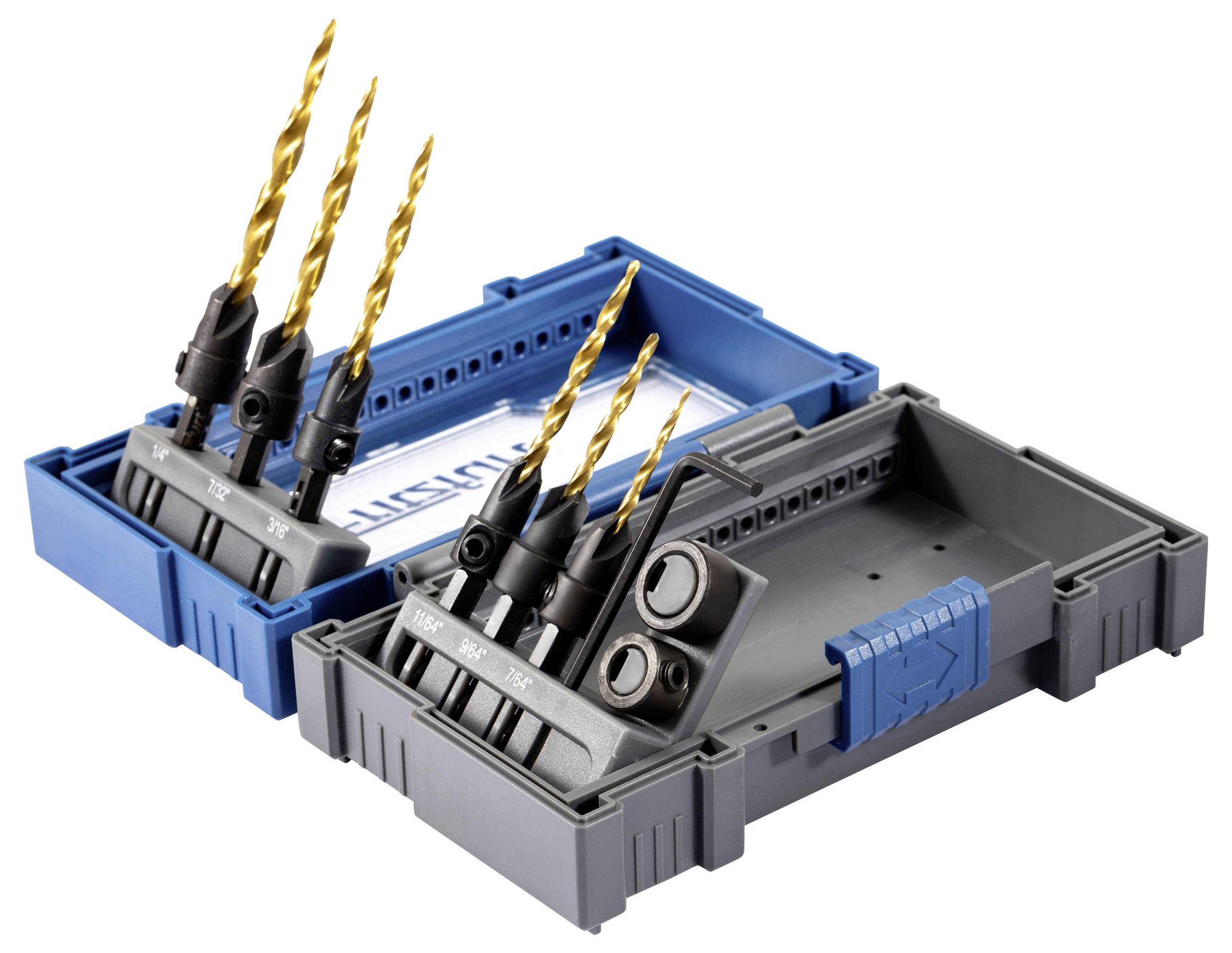

A set of drill bits attached to a blue and gray storage case, designed for organized tool storage and easy access.

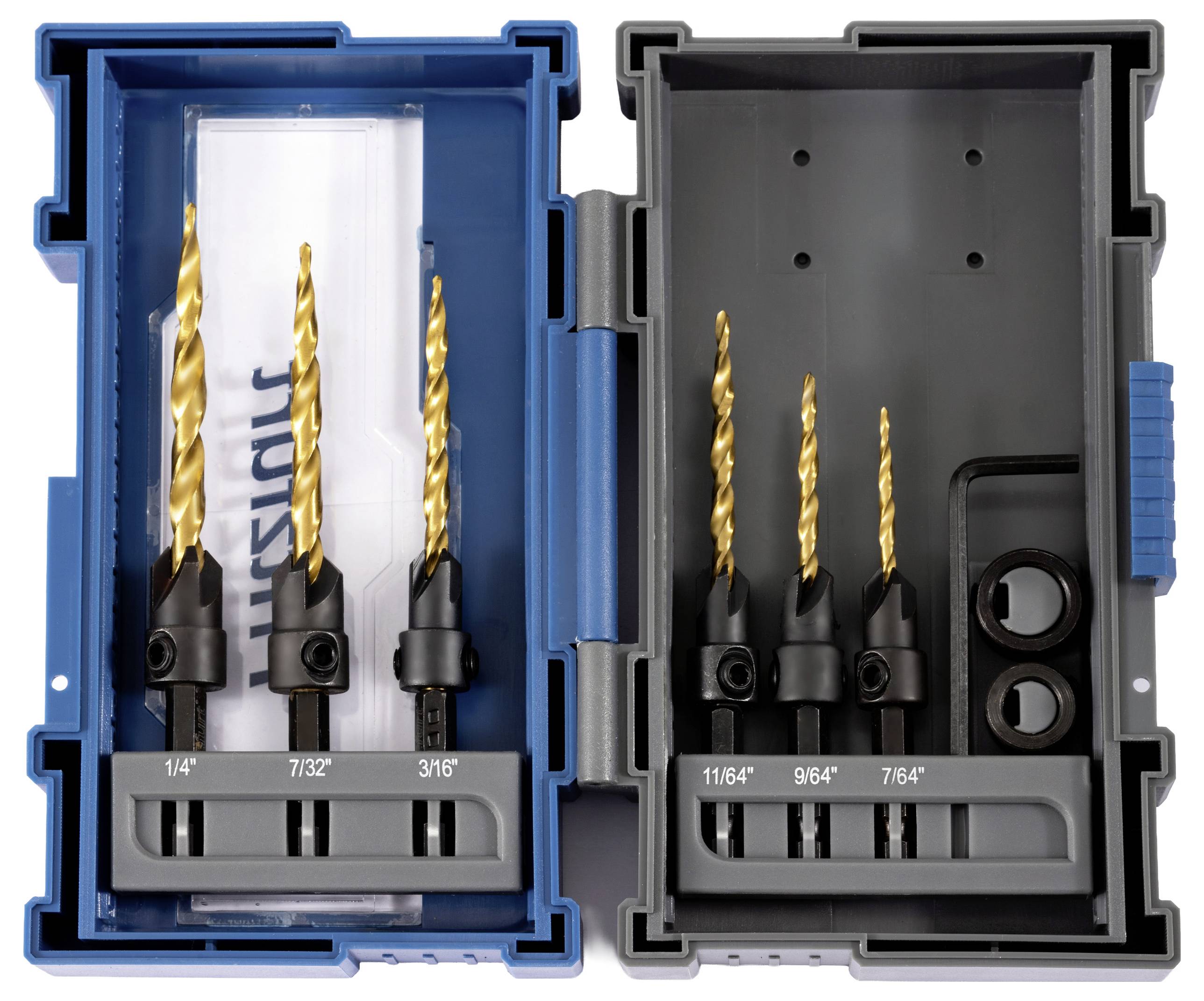

A blue plastic case open to display six drill bits of varying sizes and two additional components, organized in slots, on a white surface.

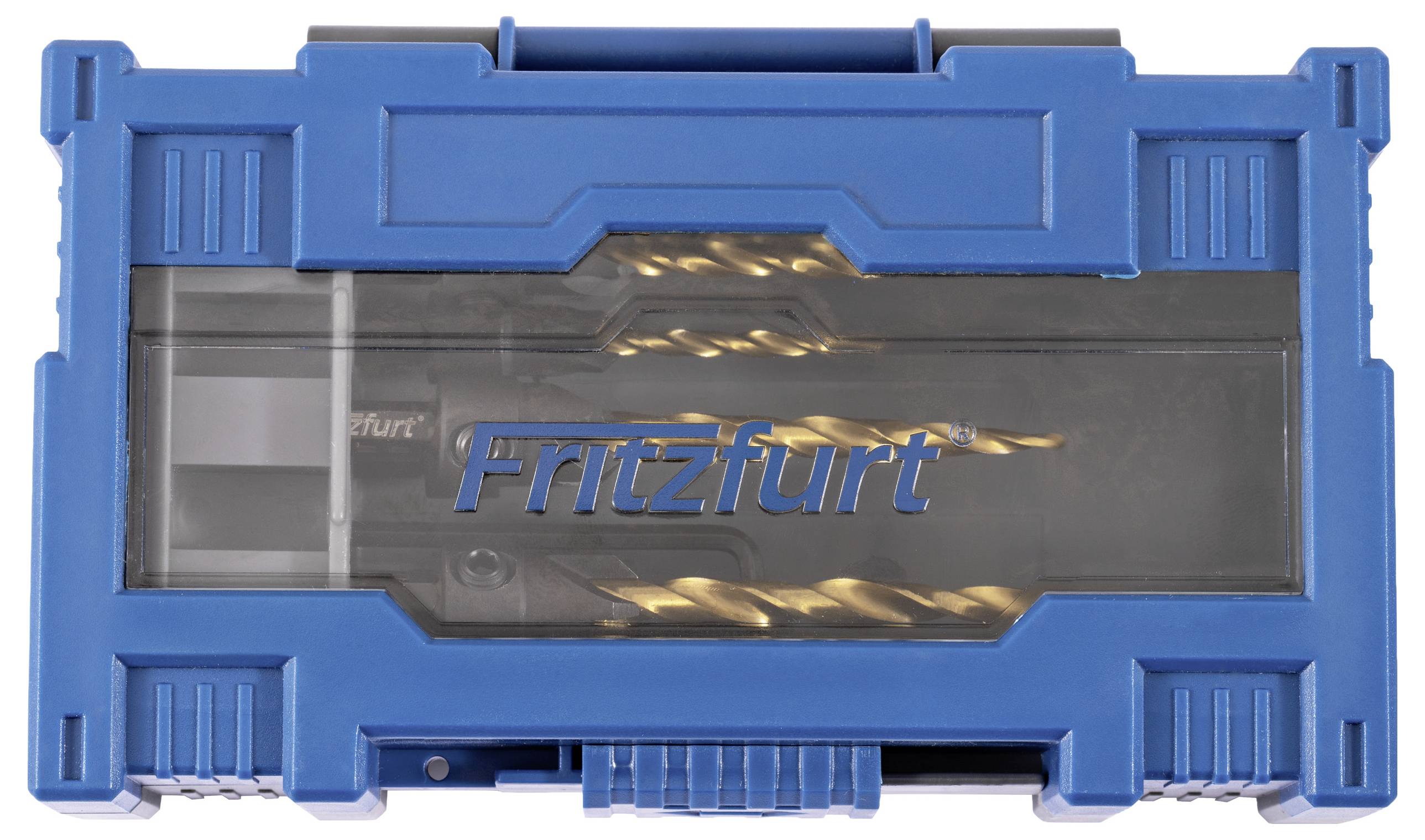

A blue plastic drill bit storage case with a clear lid, showing multiple drill bits inside. The word 'Fritzfurt' is visible on the lid.

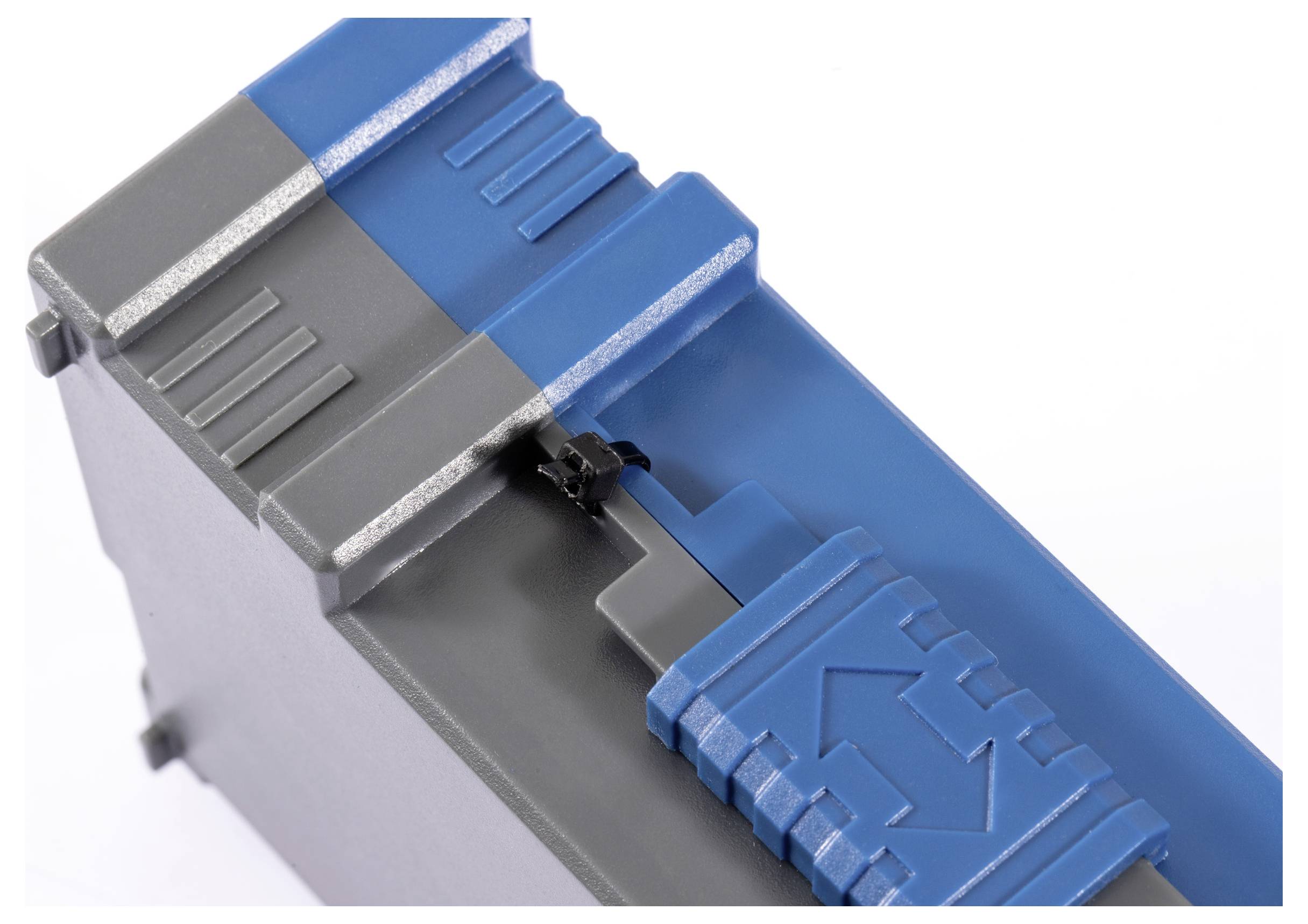

A close-up of a blue and gray electronic device with a connector port, showing a textured surface and grid design.

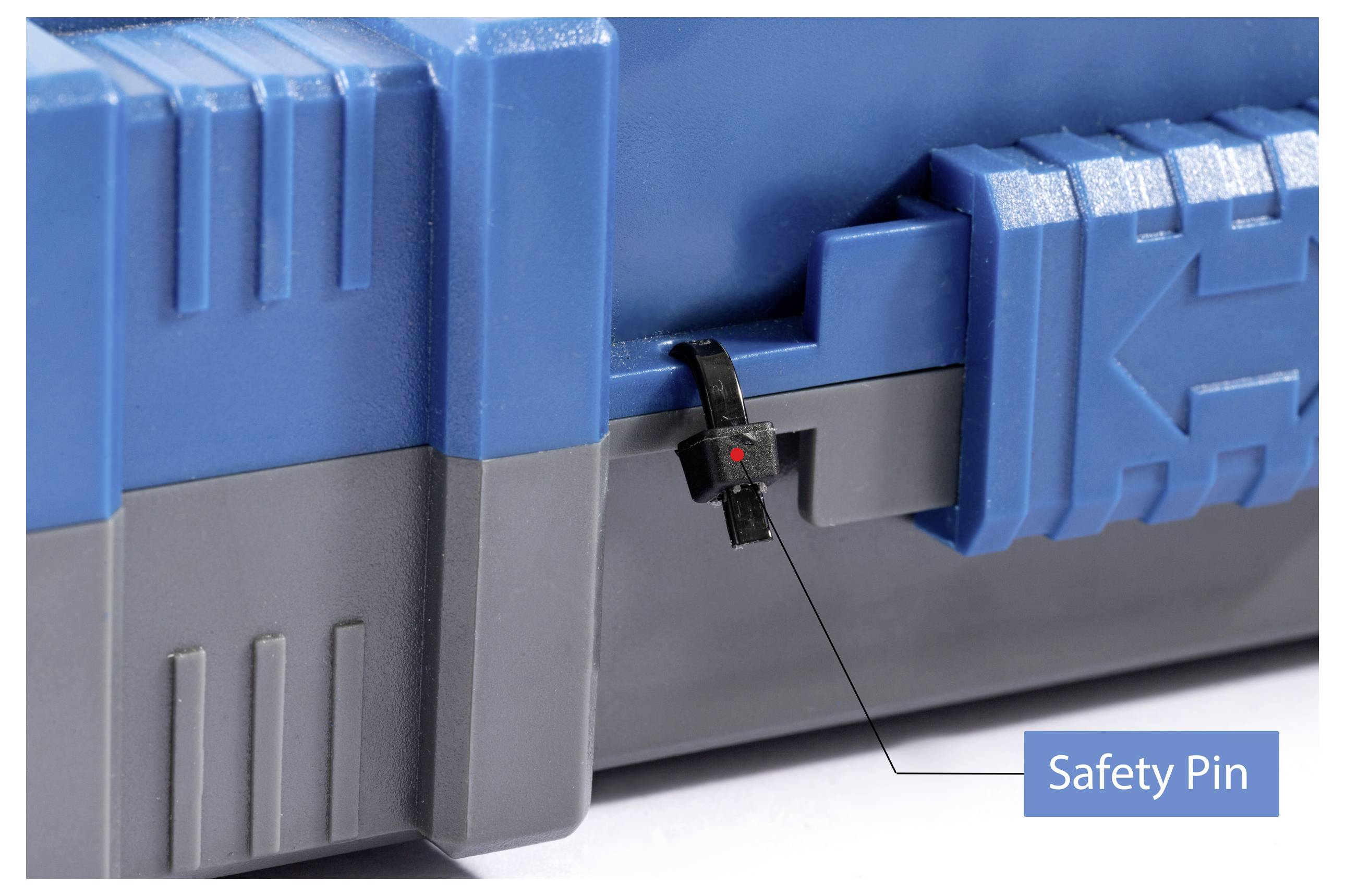

Close-up of a blue and gray industrial device with a visible safety pin mechanism. A label highlights the 'Safety Pin' feature.

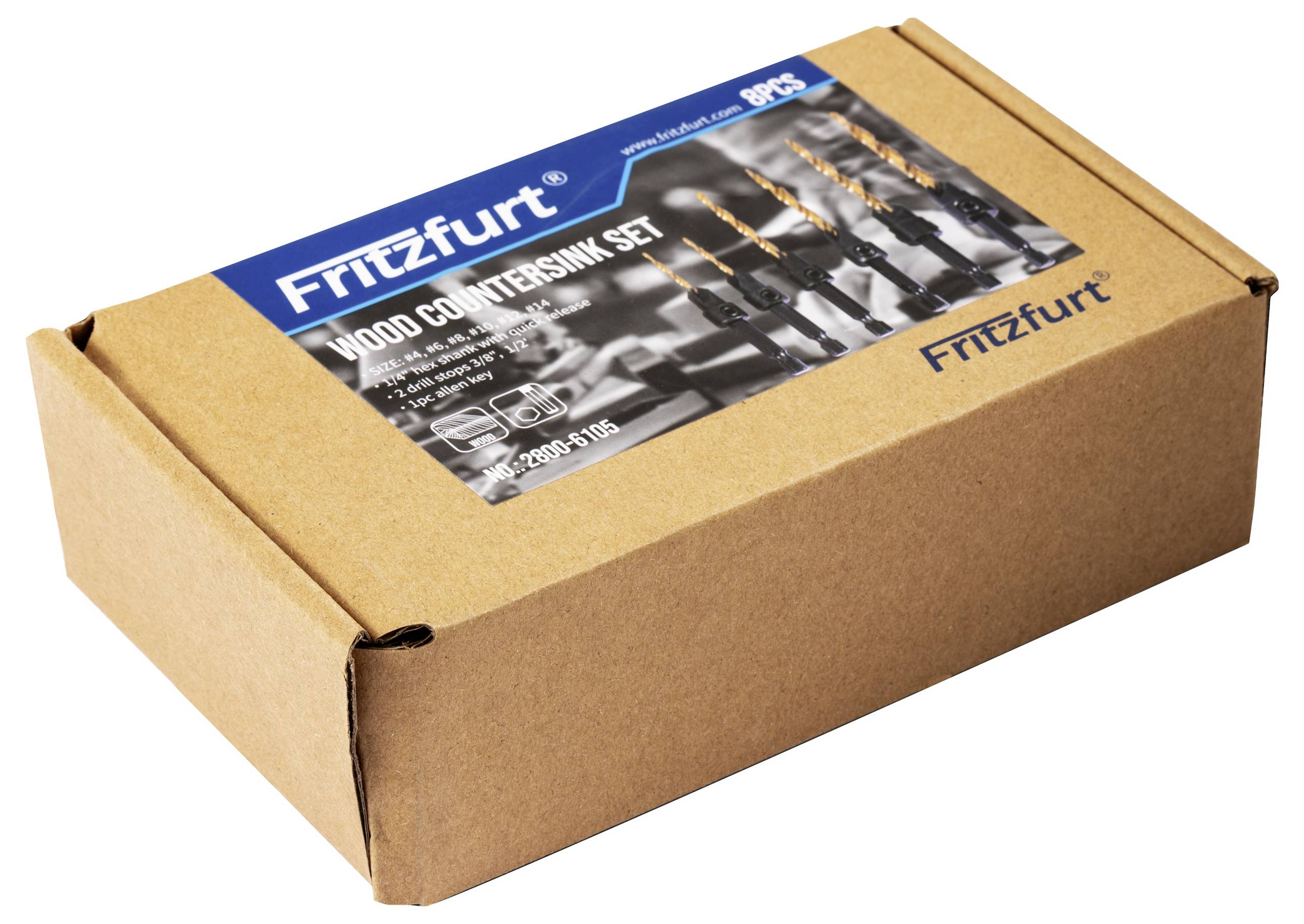

A cardboard box labeled 'FRIEzfurt Wood Countersink Set' contains multiple drill bits.

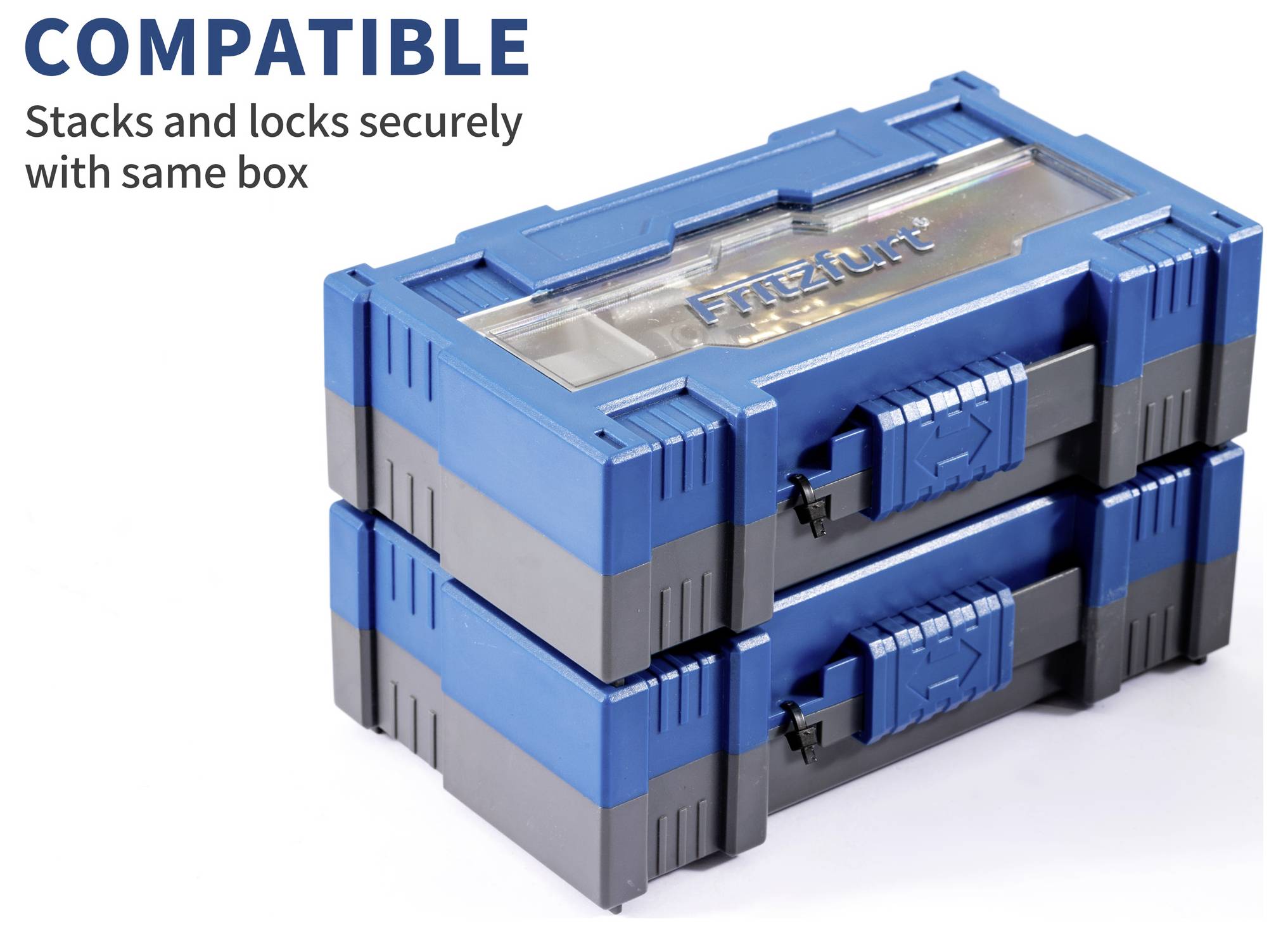

Two blue, stackable storage boxes with latches, labeled 'COMPATIBLE: Stacks and locks securely with same box'.

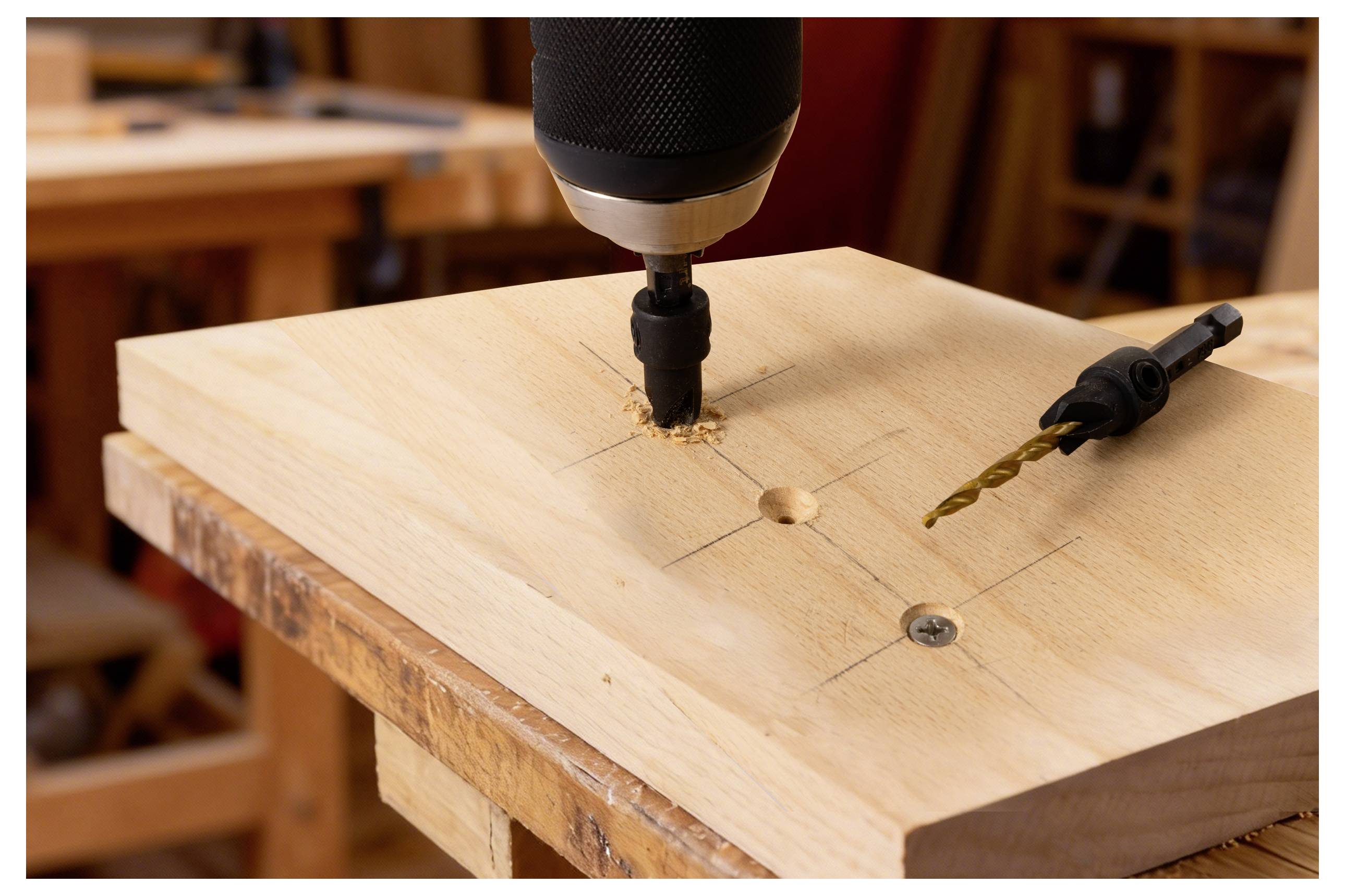

A piece of wood being drilled on a workbench. A drill is creating sawdust around the hole. An extra drill bit lies nearby.

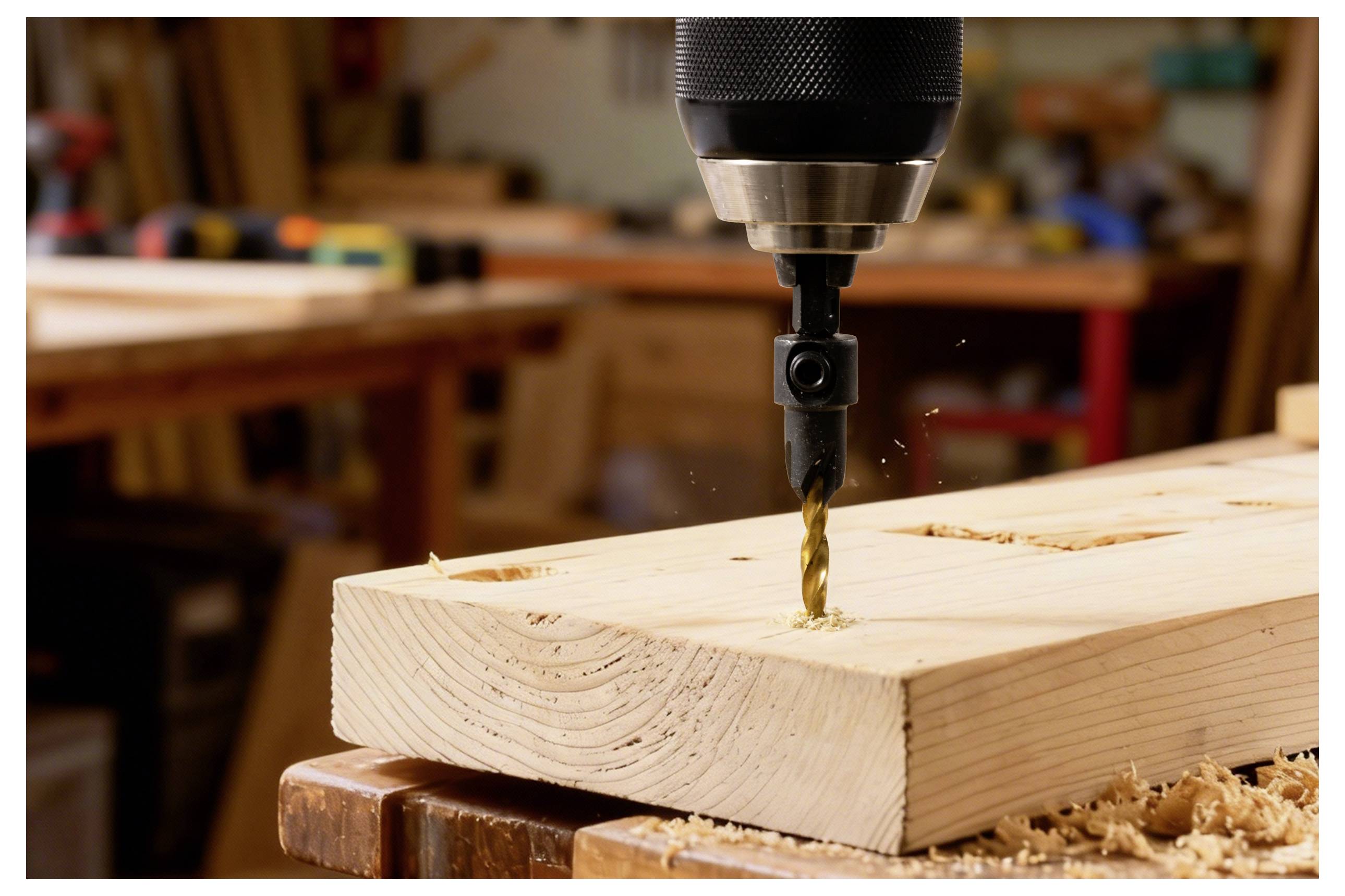

A close-up of a power drill creating holes in a wooden plank on a workbench, with wood shavings scattered around.

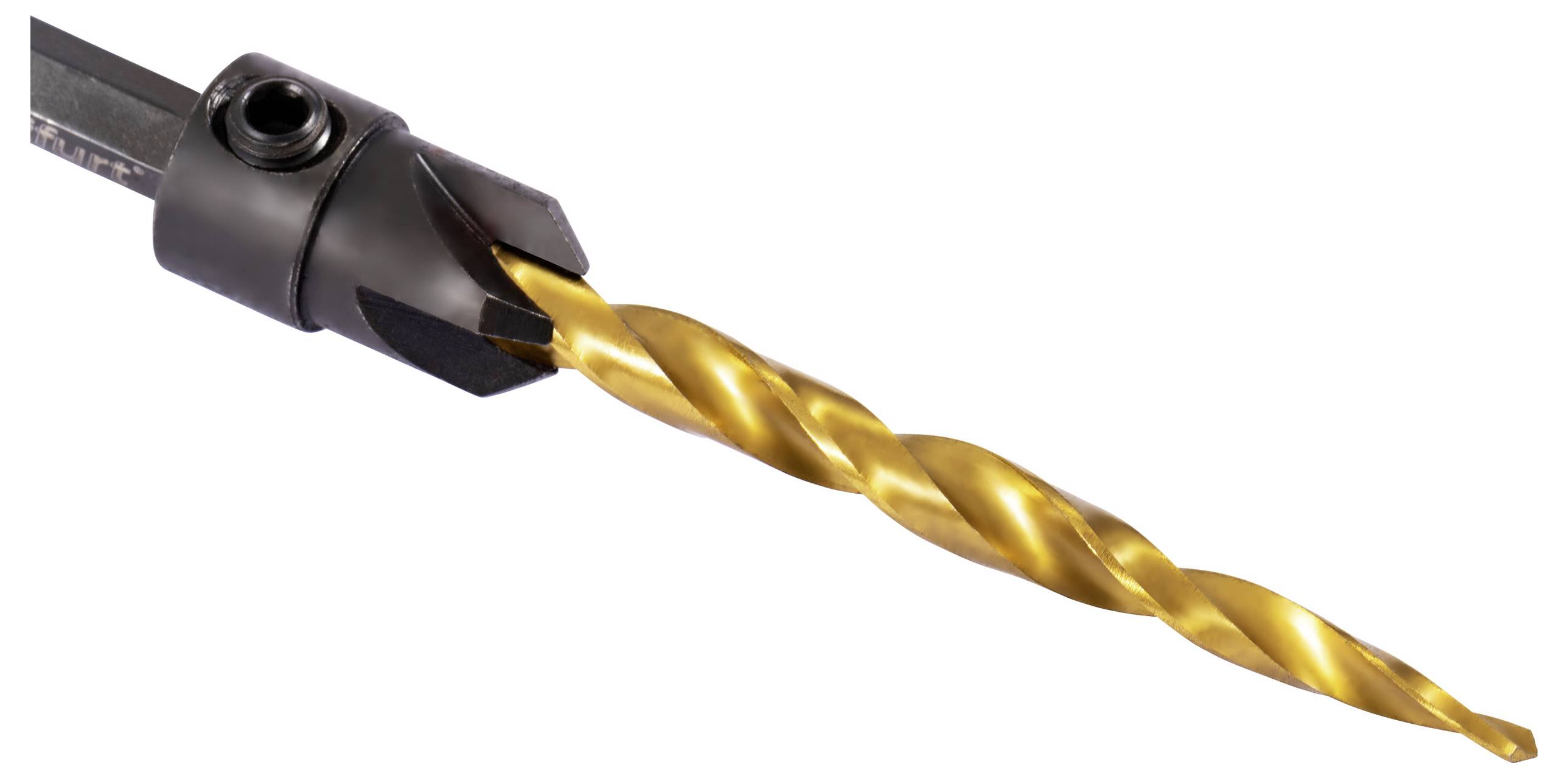

A close-up image of a golden metal drill bit attached to a black drill holder, showing the spiral design and sharp edges of the tool.

1/12

Product type

Wood fraise set

Drill hole Ø

4 mm

6 mm

8 mm

10 mm

12 mm

14 mm

Material

HSS

Carbon steel

Material suitability

Hardwood

Softwood

Plywood

Plastic

Tool holder

Hex shank

Fast track dispatch on Fri, 11 Sep

108 Set(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (€ 10.08 / piece)

€ 10.08

plus VAT.

Report legal concerns

Highlights & Details

The Fritzfurt 3-in-1 wood countersink drill bit allows you to drill, countersink, and counterbore in a single step, ensuring screws are set flush or below the surface for professional woodworking results.
Adjustable drilling depth provides precise depth control, and hex keys are included for quickly changing or tightening pilot drill bits.

Technical specifications

6x Drill bit and countersink set: sizes #4, #6, #8, #10, #12, #14
#4 Tapped drill bit: 2.8 mm, countersink diameter .5 mm, max drill length 31 mm
#6 Tapped drill bit: 3.6 mm, countersink diameter 9.5 mm, max drill length 38 mm
#8 Tapped drill bit: 4.4 mm, countersink diameter 9.5 mm, max drill length 46 mm
#10 Tapped drill bit: 4.8 mm, countersink diameter 9.5 mm, max drill length 50.8 mm
#12 Tapped drill bit: 5.6 mm, countersink diameter 12.7 mm, max drill length 60 mm
#14 Tapped drill bit: 6.4 mm, countersink diameter 12.7 mm

Product type: Wood fraise set

Drill hole Ø: 4 mm
6 mm
8 mm
10 mm
12 mm
14 mm

Material: HSS
Carbon steel

Material suitability: Hardwood
Softwood
Plywood
Plastic

Tool holder: Hex shank

Content: 1 Set

Total length: 190 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3409164 FRITZFURT 2800-6105 Wood fraise set 8-piece 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm Total length 190 mm Hex shank 1 Set

Description

Features

Pilot bits made of high-quality HSS steel and countersink bits made of high carbon steel
Compatible with hard wood, soft wood, plywood, and plastic
For best results in soft wood, use a drill bit one size smaller
