FRM60M10 Eltako EnOcean Tubular motor Recess-mount Switching capacity (max.) 115 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 265.00 / piece)
€ 265.00
incl. VAT
14-day return policy included
Technical specifications
- Torque: 10 Nm
- Speed 14 rpm
- Running time: 10 minutes.
- Product type
Tubular motor
- Series
Eltako
- Dim
(W x H) 466 mm x 466 mm
- Transfer Standard (Smart Home)
EnOcean
- Max. switching capacity
115 W
IP44
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Mounting type
Recess-mount
115 W
- Data transfer (Smart Home)
Wireless
- Frequency
868 MHz
- Width
466 mm
- Height
466 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
50 mm
10 Nm
466 mm
FALSE
FALSE
TRUE
FALSE
TRUE
TRUE
Electronic
TRUE
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2256216 FRM60M10 Eltako EnOcean Tubular motor Recess-mount Switching capacity (max.) 115 W
User & Safety Instructions
User & Safety Instructions 2256216 FRM60M10 Eltako EnOcean Tubular motor Recess-mount Switching capacity (max.) 115 W
Description

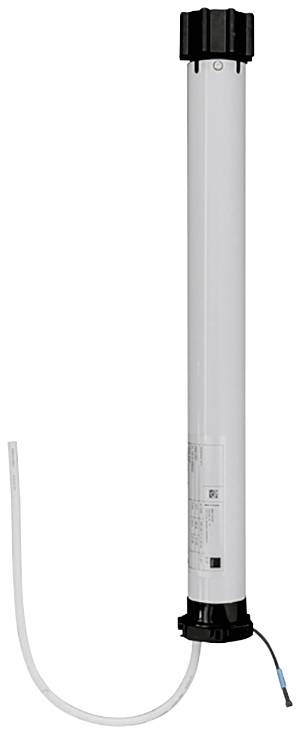

Radio tubular motor 230 V/115 W for steel shaft SW60, torque 10 Nm, speed 14/min, with adapter set, bearing and whisper mode. The wireless tubular motor has a total length of 466 mm. It has a comfort protection and a noiseless soft brake. Intelligent force measurement. Safety guard up/down with free travel (torque cut-off). Discharge adjustable. End positions can be set via mounting cable. Noiseless soft brake. Protection class IP44 Runtime 10 minutes.
This text is machine translated.
This text is machine translated.
