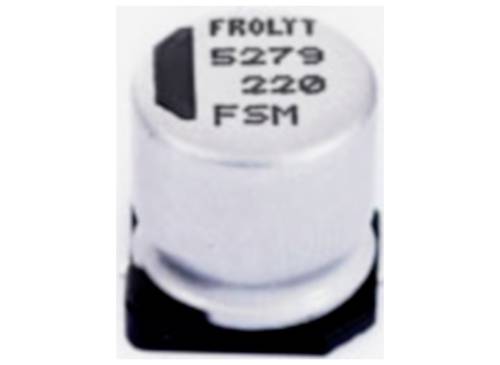

Frolyt E-RS3049 Electrolytic capacitor SMD 4.5 mm 220 µF 25 V 20 % (Ø x L) 8.9 mm x 12 mm 1 pc(s)
Product type
Electrolytic capacitor
Type
SMD
Capacity (elec.)
220 µF
Nominal voltage
25 V
CS
4.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1.49 / piece)
€ 1.49
incl. VAT
14-day return policy included
Highlights & Details
Electrolytic capacitor, 220 µF, 25 V (DC), ±20 %, SMD, RM 4.5 mm, Ø 8.9 mm
Our service for you
Technical specifications
- ESR (equivalent series resistance) 1 Ω
- Product type
Electrolytic capacitor
- Type
SMD
- CS
4.5 mm
- Dim
(Ø x L) 8.9 mm x 12 mm
- Capacity (elec.)
220 µF
- Nominal voltage
25 V
- Tolerance ±
20 %
- (Ø)
8.9 mm
- Content
1 pc(s)
- Length
12 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-55 °C
- Type
E-RS3049
Documents & Downloads
Datasheet
Datasheet 3046382 Frolyt E-RS3049 Electrolytic capacitor SMD 4.5 mm 220 µF 25 V 20 % (Ø x L) 8.9 mm x 12 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046382 Frolyt E-RS3049 Electrolytic capacitor SMD 4.5 mm 220 µF 25 V 20 % (Ø x L) 8.9 mm x 12 mm 1 pc(s)
Description
SMD aluminum electrolytic capacitor, E-RS3049, FlOLT SMD (Chip) for surface mounting and loading, lifetime at least 3,000 h at 105°C rated voltage range: 10V - 100V, nominal capacity range: 3,3µF - 1000µF Dimensions: 8.9 x 12.0 mm and 10.2 x 12.0 mm Features * RoHS compliant
