1/2

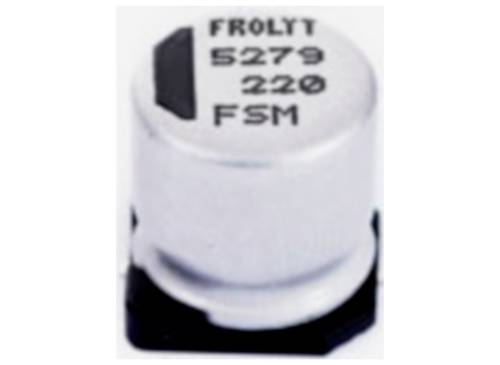

Frolyt E-RSM313 Electrolytic capacitor SMD 4.5 mm 100 µF 50 V 20 % (Ø x L) 10.2 mm x 10 mm 1 pc(s)
Product type
Electrolytic capacitor
Type
SMD
Capacity (elec.)
100 µF
Nominal voltage
50 V
CS
4.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 25
Multiple: 25
Total (€ 1.49 / piece)
€ 37.25
incl. VAT
14-day return policy included
Highlights & Details
Electrolytic capacitor, 100 µF, 50 V (DC), ±20 %, SMD, RM 4.5 mm, Ø 10.2 mm
Our service for you
Technical specifications
- ESR (equivalent series resistance) 1.75 Ω
- Product type
Electrolytic capacitor
- Type
SMD
- CS
4.5 mm
- Dim

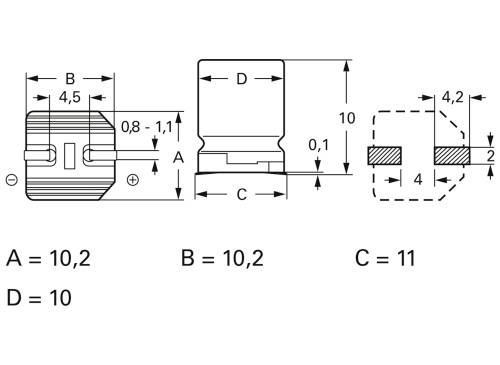

(Ø x L) 10.2 mm x 10 mm
- Capacity (elec.)
100 µF
- Nominal voltage
50 V
- Tolerance ±
20 %
- (Ø)
10.2 mm
- Content
1 pc(s)
- Length
10 mm
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-55 °C
- Type
E-RSM313
Documents & Downloads
Datasheet
Datasheet 3046247 Frolyt E-RSM313 Electrolytic capacitor SMD 4.5 mm 100 µF 50 V 20 % (Ø x L) 10.2 mm x 10 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046247 Frolyt E-RSM313 Electrolytic capacitor SMD 4.5 mm 100 µF 50 V 20 % (Ø x L) 10.2 mm x 10 mm 1 pc(s)
Description
SMD aluminum electrolytic capacitor type FLIP ERSM. For surface mounting, adjustable up to +105 °C, according to DIN IEC 60384-1
This text is machine translated.
This text is machine translated.
