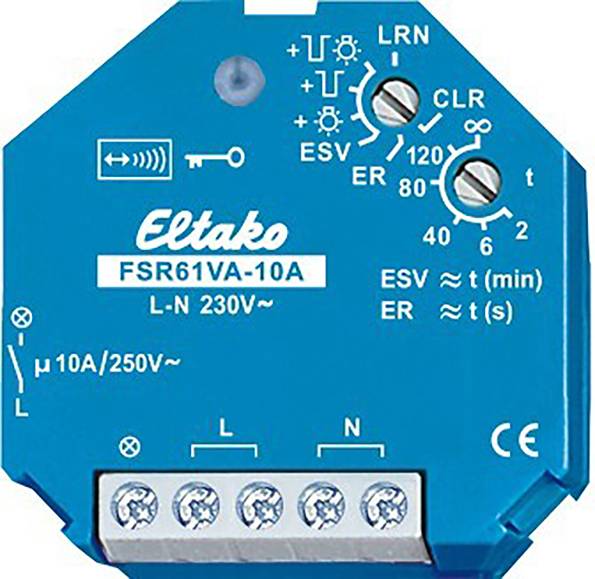

FSR61VA-10A Eltako Actuator Surge protection switch Flush mount

1 closing contact not floating 10A/250V AC, light bulbs 2000 Watt, fall-back delay with switch-off pre-warning and continuous button light can be switched. With integrated current measurement up to 10A. Encrypted radio, bi-directional radio and repeater function can be connected. Standby loss of only 0.8 watt. For panel mounting. 45 mm long, 45 mm wide, 33 mm deep. Supply and switching voltage 230V. The switching status is maintained with supply voltage failure. A defined cut-off is performed when the supply voltage is restored. After installation, wait for the automatic short synchronization before connecting the switched load to the mains. With the integrated current measurement, the apparent power from about 10VA to 2300VA is measured with the contact closed. A radio telegram is sent to the Eltako building radio within 30 seconds after switching on the load and after a change in the power by at least 5% and cyclically every 10 minutes. Evaluation at the computer with the building radio visualization and control software GFVS. GFVS-Energy supports up to 100 transmission modules, GFVS 4.0 supports up to 250 transmission modules. Encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Each status change as well as received central control telegrams are confirmed with a radio telegram. This radio telegram can be taught in other actuators, the GFVS software and in universal displays.

This text is machine translated.
