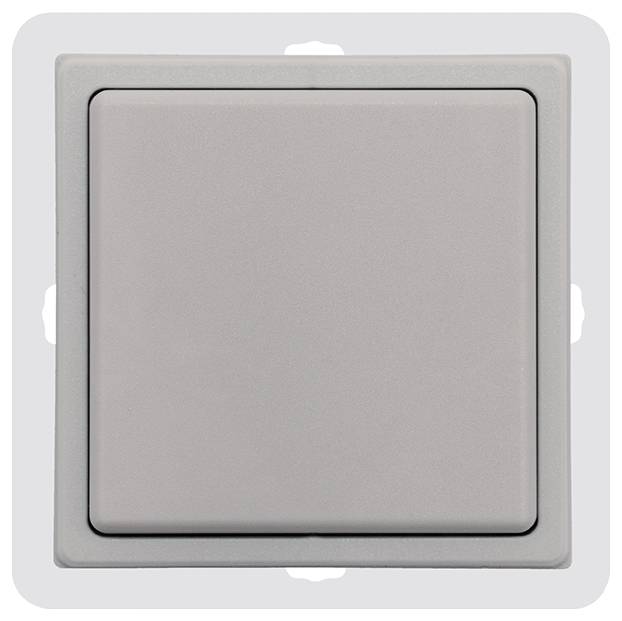

FT4CH-hg Eltako Wireless Sensor 4-channel Surface-mount Max. range (open field) 30 m

Wireless light gray for frame internal dimensions 60x60mm, 15mm high. Generates the energy for radio telegrams even when pressing a button, therefore without connecting cable and no loss of standby power. With rocker and double rocker. Also for Swiss cover frames by ABB Normelec and Hager The delivery includes a large rocker, a double rocker, a intermediate frame (all the same color), the holding plate, the radio module and an adhesive film. Wireless switches with a rocker can send two evaluable signals: Press the rocker up and press the rocker down. Wireless switches with a double rocker can send four signals: Press two rockers at the top and bottom. The holding plate can be screwed onto a level surface or glued to the wall, glass or furniture using the enclosed adhesive film. The sleeves in the box are used for screw fastening over a 55 mm switch box. The double rocker is fixed to the radio module ex works. If these are to be replaced by the large rocker, then pull off the two halves of the rocker arm to the front and do not bend toward the middle. Then clip on the large rocker so that its markings 0 and I on the rear match the radio module. When gluing on, glue first the holding plate with frame and intermediate frame, with the notches on top and bottom. Then the set radio module with rocker, marking 0 on the rear side always click into place. Before screwing, loosen the intermediate frame from the retaining plate. To do so, press the notches of the retaining plate outwards. Then screw on the holding plate with the latches at the top and bottom, snap on the frame with the intermediate frame and lock the kit radio module with rocker, marking 0 on the rear always at the top. We recommend using stainless steel counter-sunk screws 2.9x25mm, DIN 7982 C. Both with 5x25mm plugs as well as on 55mm switch boxes. The radio module contained in the radio button can be imported in accordance with instructions for use in all encrypted actuators of the series 61 and 71, as well as in the FAM14. To do this, the FTVW wireless encryption rocker is required. Encrypted actuators carry the key pictogram
