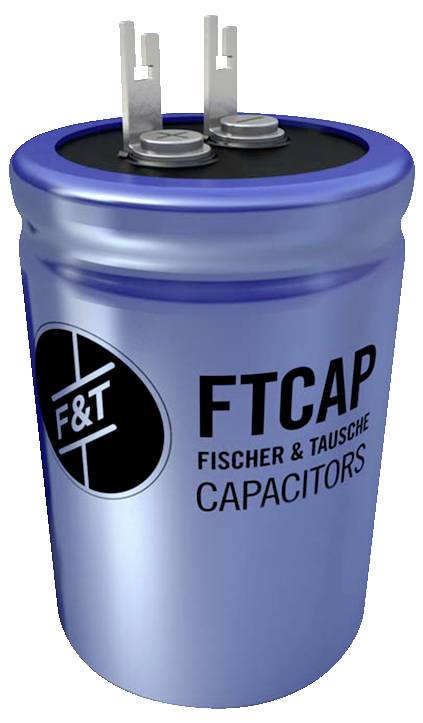

FTCAP Electrolytic capacitor Radial lead 20 mm 10.000 µF 100 V DC 20 % (Ø x H) 40 mm x 95.0 mm 1 pc(s)
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
10.000 µF
Nominal voltage
100 V DC
CS
20 mm
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 24.99 / piece)
€ 24.99
incl. VAT
14-day return policy included
Highlights & Details
FTCAP EL cap 10000UF 100V 40x95mm
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series LF
- Design_1: Radial
- Applications: HiFi, consumers, industry, telecommunications
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: Solder lugs and bolt mounting
- Delivery form_1: Loose
- Connections_1: 2-pin
- Mounting bolt thread M8 x 12
- Pitch_1:20 mm
- Climate category IEC 40/85/56
- Capacity 10,000 µF
- Capacity_1: 10,000
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.09
- Equivalent Series Resistance (ESR): 14 mOhm
- Nominal voltage DC 100 V
- Lifetime_1: 5,000 h
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
20 mm
- Dim
(Ø x H) 40 mm x 95.0 mm
- Capacity (elec.)
10.000 µF
- Nominal voltage
100 V DC
- Tolerance ±
20 %
- Height
95.0 mm
- (Ø)
40 mm
- Content
1 pc(s)
- Material
Aluminium
- Width
40 mm
- Length
95.0 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Min. temperature
40 °C
- Type
LFB10310040095
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Certification marks
IEC 60384-4
Documents & Downloads
Datasheet
Datasheet 3454327 FTCAP Electrolytic capacitor Radial lead 20 mm 10.000 µF 100 V DC 20 % (Ø x H) 40 mm x 95.0 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3454327 FTCAP Electrolytic capacitor Radial lead 20 mm 10.000 µF 100 V DC 20 % (Ø x H) 40 mm x 95.0 mm 1 pc(s)
Description
F&T electrolytic capacitors with soldering tag and mounting rack
This text is machine translated.
This text is machine translated.
