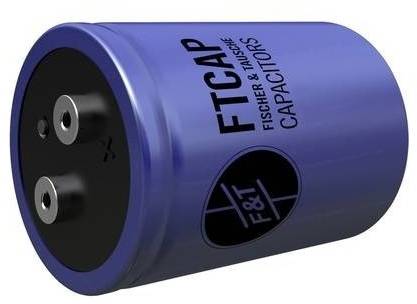

FTCAP GMA33235065100 / 1012698 Electrolytic capacitor Screw-type 3300 µF 350 V (Ø x L) 65 mm x 100 mm 1 pc(s)
Product type
Electrolytic capacitor
Type
Screw-type
Capacity (elec.)
3300 µF
Nominal voltage
350 V
Dim
(Ø x L) 65 mm x 100 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 89.99 / piece)
€ 89.99
incl. VAT
14-day return policy included
Highlights & Details
Electrolytic capacitor, 3300 µF, 350 V (DC), -10/+30 %, cup, Ø 65 mm
Our service for you
Technical specifications
- Tolerance -10/+30 %
- Ripple current 5.8 A
- ESR (equivalent series resistance) 39 mΩ
- Product type
Electrolytic capacitor
- Type
Screw-type
- Dim
(Ø x L) 65 mm x 100 mm
- Capacity (elec.)
3300 µF
- Nominal voltage
350 V
- (Ø)
65 mm
- Content
1 pc(s)
- Length
100 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Type
GMA33235065100 / 1012698
Documents & Downloads
Datasheet
Datasheet 3046203 FTCAP GMA33235065100 / 1012698 Electrolytic capacitor Screw-type 3300 µF 350 V (Ø x L) 65 mm x 100 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046203 FTCAP GMA33235065100 / 1012698 Electrolytic capacitor Screw-type 3300 µF 350 V (Ø x L) 65 mm x 100 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing type FTCAP GMA. With M 5-thread connections With nominal voltage 350 VDC.
