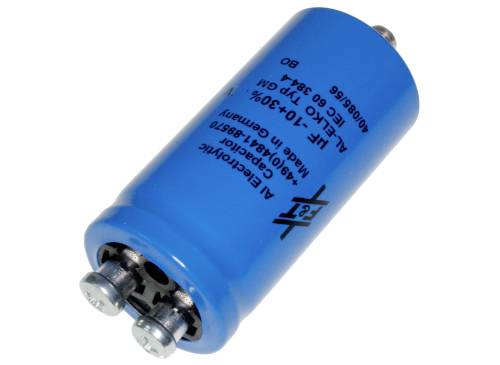

FTCAP GMB33235065100 / 1013192 Electrolytic capacitor Screw-type 3300 µF 350 V (Ø x L) 65 mm x 100 mm 1 pc(s)
Product type
Electrolytic capacitor
Type
Screw-type
Capacity (elec.)
3300 µF
Nominal voltage
350 V
Dim
(Ø x L) 65 mm x 100 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 69.99 / piece)
€ 69.99
incl. VAT
14-day return policy included
Highlights & Details
Electrolytic capacitor, 3300 µF, 350 V (DC), -10/+30 %, cup, Ø 65 mm
Our service for you
Technical specifications
- Tolerance -10/+30 %
- Ripple current 4.8 A
- ESR (equivalent series resistance) 60 mΩ
- Product type
Electrolytic capacitor
- Type
Screw-type
- Dim
(Ø x L) 65 mm x 100 mm
- Capacity (elec.)
3300 µF
- Nominal voltage
350 V
- (Ø)
65 mm
- Content
1 pc(s)
- Length
100 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Type
GMB33235065100 / 1013192
Documents & Downloads
Datasheet
Datasheet 3046220 FTCAP GMB33235065100 / 1013192 Electrolytic capacitor Screw-type 3300 µF 350 V (Ø x L) 65 mm x 100 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046220 FTCAP GMB33235065100 / 1013192 Electrolytic capacitor Screw-type 3300 µF 350 V (Ø x L) 65 mm x 100 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing type FTCAP GMB. With ground threaded bolts and M 5 thread connections With nominal voltage 350 VDC. Note: Due to the internal design, the cup is not potential-free. Therefore, it is absolutely necessary to use insulating material when mounting on conductive surfaces.
This text is machine translated.
This text is machine translated.
