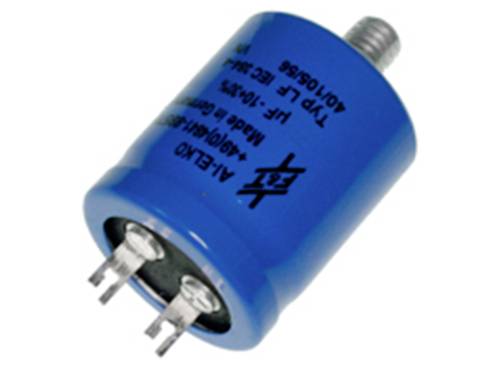

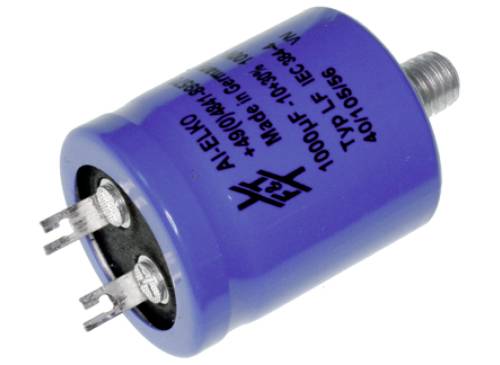

FTCAP LFB10304035050 / 1014220 Electrolytic capacitor Solder tags 10000 µF 40 V (Ø x L) 35 mm x 50 mm 1 pc(s)
Product type
Electrolytic capacitor
Type
Solder tags
Capacity (elec.)
10000 µF
Nominal voltage
40 V
Dim
(Ø x L) 35 mm x 50 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 19.99 / piece)
€ 19.99
incl. VAT
14-day return policy included
Highlights & Details
Electrolytic capacitor, 10000 µF, 40 V (DC), -10/+30 %, cup, Ø 35 mm
Our service for you
Technical specifications
- Tolerance -10/+30 %
- Ripple current 3.2 A
- ESR (equivalent series resistance) 25 mΩ
- Product type
Electrolytic capacitor
- Type
Solder tags
- Dim
(Ø x L) 35 mm x 50 mm
- Capacity (elec.)
10000 µF
- Nominal voltage
40 V
- (Ø)
35 mm
- Content
1 pc(s)
- Length
50 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Type
LFB10304035050 / 1014220
Documents & Downloads
Datasheet
Datasheet 3046227 FTCAP LFB10304035050 / 1014220 Electrolytic capacitor Solder tags 10000 µF 40 V (Ø x L) 35 mm x 50 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046227 FTCAP LFB10304035050 / 1014220 Electrolytic capacitor Solder tags 10000 µF 40 V (Ø x L) 35 mm x 50 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing type FTCAP LFB. Poled, with base threaded bolts and solder tag connections With nominal voltage 40 VDC. Note: Due to the internal design, the cup is not potential-free. Therefore, it is absolutely necessary to use insulating material when mounting on conductive surfaces.
This text is machine translated.
This text is machine translated.
