ElectromechanicsHousingsUniversal Enclosures

Gainta G0475 Casing 120.5 x 120.5 x 95.2 Aluminium Aluminium alloy Aluminium (natural) 1 pc(s)

Stack of five rectangular metal boxes on the left and four stacked boxes on the right against a white background.

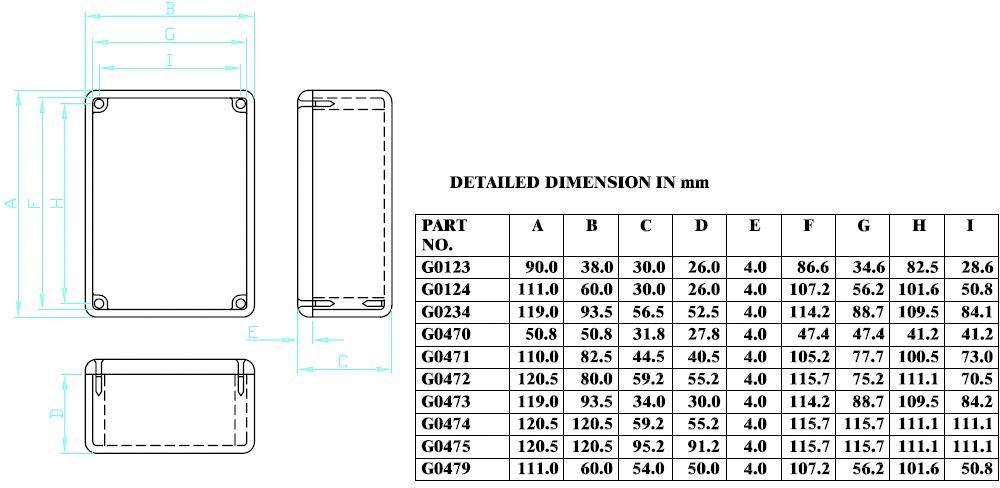

'Technical drawing of a rectangular enclosure with dimensions in mm. Table shows parts and measurements A to I from G0123 to G0479.'
1/2
Product type
Casing
Material
Aluminium
Width
120.5 mm
Height
95.2 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
40 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 16.99 / piece)
€ 19.99
-15 %
€ 16.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Casing

Material

Aluminium

Factory colour

Aluminium (natural)

Length

120.5 mm

Width

120.5 mm

Height

95.2 mm

Content

1 pc(s)

Dim

(L x W x H) 120.5 x 120.5 x 95.2 mm

Weight

500 g

Material properties

Aluminium alloy

Type

G0475

Documents & Downloads

Datasheet

Datasheet 2357004 Gainta G0475 Casing 120.5 x 120.5 x 95.2 Aluminium Aluminium alloy Aluminium (natural) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2357004 Gainta G0475 Casing 120.5 x 120.5 x 95.2 Aluminium Aluminium alloy Aluminium (natural) 1 pc(s)

Description

Hints

Japanese Industry Standard (JIS) ADC-10 Aluminum Alloy
Natural aluminum color
