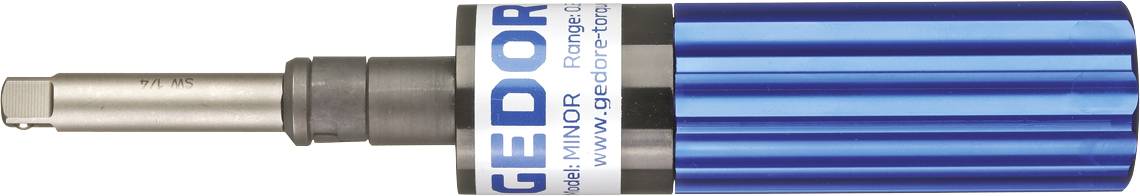

Gedore 755-03 Torque screwdriver 0.27 - 1.35 Nm DIN EN ISO 6789
EAN:
Part number:
Item no:
Number
Total (€ 105.03 / piece)
€
Only 8 Piece(s) available
Technical specifications
- Application:
- Controlled Screw Tighten
- Series mounting with constant value suit
- Electronics industry, precision mechanics and industrial manufacturing
- Construction:
- Adjustable torque screwdriver - without scale
- With 1/4" inner hexagonal holder for operating 1/4" bits to DIN 3126 - C 6.3
- With adapter also suitable for 1/4" socket wrench inserts according to DIN 3124
- Tripping accuracy: +/- 6 % tolerance of set value
- Design according to DIN EN ISO 6789, traceable to national normal
- Precision round ball coupling for controlled right and left pull
- Precision mechanism glides noticeably upon reaching the set value
- Automatic reset to the initial position
- Lightweight design thanks to anodized aluminum handles
- The fixed adjustment can be carried out at the factory or on suitable test equipment by hand.
- Delivery scope
- Type 755 torque screwdriver
- 1/4" adapter drive piece (No. 757-20
- Model No. 755-05 with additional cross-grip for ease of use
- Test certificate according to DIN EN ISO 6789
- Supplied in sturdy cardboard
- Drive
1/4"
- Torque (min.)
0.27 Nm
- Torque (max.)
1.35 Nm
- Length
111 mm
- DIN standard
DIN EN ISO 6789
- Product type
Torque screwdriver
Variants(All information is without VAT, plus shipping costs)
Torque (min.)
Torque (max.)
Gedore 755-03 Torque screwdriver 0.27 - 1.35 Nm DIN EN ISO 6789
This article
0.27 Nm
1.35 Nm
Minimum order quantity: 1
Multiple: 1
€ 105.03*
Gedore 755-01 Torque screwdriver 0.04 - 0.22 Nm DIN EN ISO 6789
0.04 Nm
0.22 Nm
Minimum order quantity: 1
Multiple: 1
€ 147.05*
Gedore 755-02 Torque screwdriver 0.04 - 0.22 Nm DIN EN ISO 6789
0.04 Nm
0.22 Nm
Minimum order quantity: 1
Multiple: 1
€ 147.05*
Gedore 755-04 Torque screwdriver 0.8 - 4 Nm DIN EN ISO 6789
0.8 Nm
4 Nm
Minimum order quantity: 1
Multiple: 1
€ 109.24*

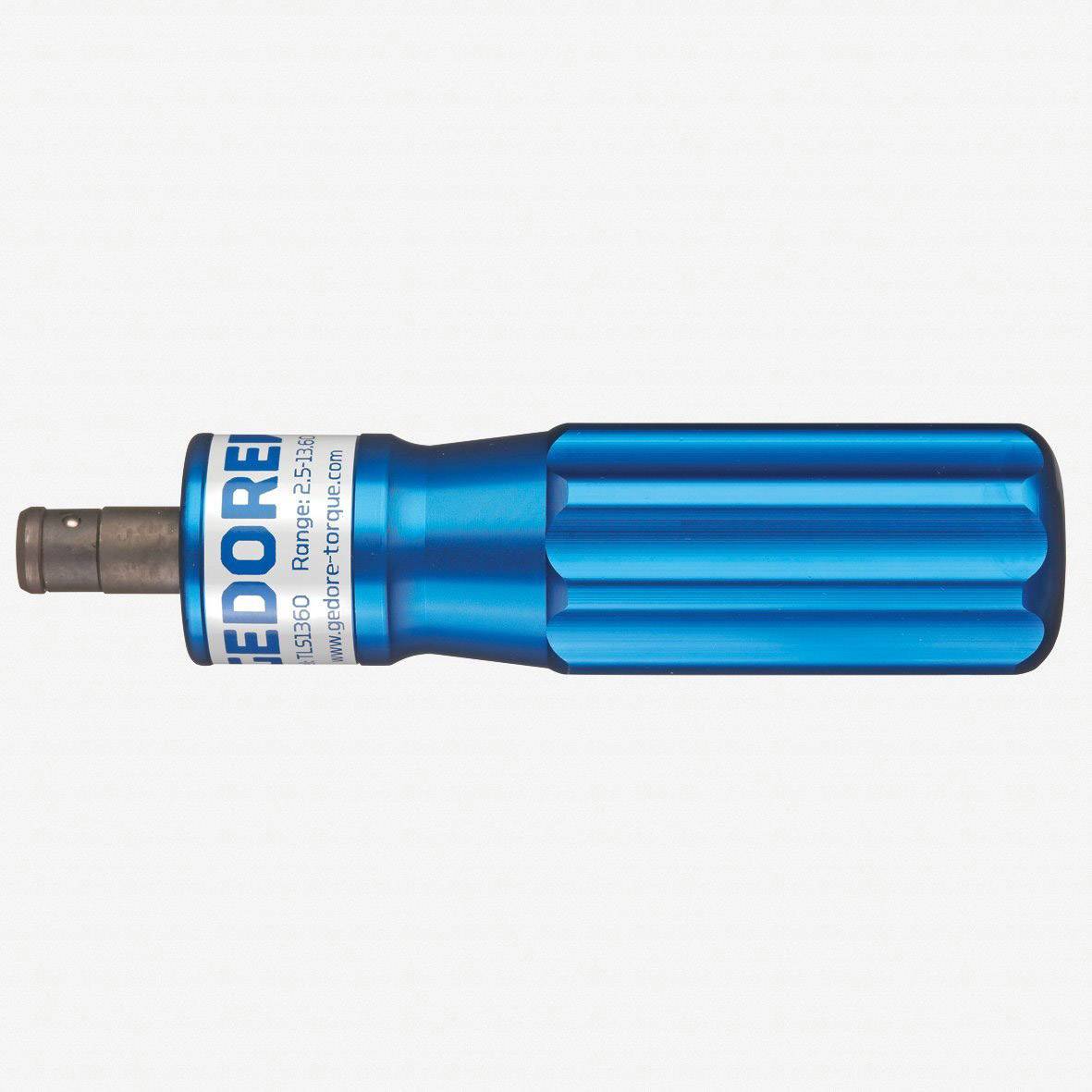

Gedore 755-05 Torque screwdriver 2.8 - 13.6 Nm DIN EN ISO 6789
2.8 Nm
13.6 Nm
Minimum order quantity: 1
Multiple: 1
€ 147.05*
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908291 Gedore 755-03 Torque screwdriver 0.27 - 1.35 Nm DIN EN ISO 6789
Information
Information 1908291 Gedore 755-03 Torque screwdriver 0.27 - 1.35 Nm DIN EN ISO 6789
Description
Features
- Use:
- Controlled screw tightening in the range 0.04 - 13.6 N
- m
- Serial manufacture with constant tightening value
- Electronic industry, precision mechanics and industrial manufacturing Features:
- Pre-set torque screwdriver without a scale
- With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3
- With adaptor also suitable for 1/4" square drive sockets as per DIN 3124
- Working accuracy: +/- 6 % tolerance of the set torque
- Acc. to DIN EN ISO 6789, traceable to national standards
- Precision radial ball clutch and cam design for controlled bi-directional tightening
- Precision mechanism slips very noticeably through when the set torque is reached
- Automatic resetting to the starting position
- Lightweight construction by virtue of anodised aluminium handgrips
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If ordering, please specify the N
- m value - if a fixed factory setting is desired (price on request) Scope of delivery:
- Torque screwdriver type 755
- 1/4" square/hexagon drive adaptor (no. 757-20)
- Model 755-05 with additional removable T-bar for ease of use
- Test certificate acc. to DIN EN ISO 6789
- Delivered in sturdy cardboard packaging
