Wiha VDE Torque screwdriver set 14-piece 0.8 - 5 Nm DIN EN 60900
EAN:
Part number:
Item no:
Number
Total (€ 151.25 / piece)
€
Highlights & Details
816179 Turning moment - Screwdriver
- 0.8-5.0 Nm mixed 14-pieces
- Variable adjustable torque limitation
- With 6 bits. Pleated pouch
Technical specifications
- Dimensions (handle) 36 x 138 mm
- Range of use
VDE
- Drive
6 mm
- Torque (min.)
0.8 Nm
- Torque (max.)
5 Nm
- Tolerance ±
6 %
- Blade length
75 mm
- Length
225 mm
- Handle Ø
36 mm
- Handle length
138 mm
- Width
45 mm
- Height
246 mm
- Weight
550 g
- DIN standard
DIN EN 60900
- Screwdriver features
adjustable
- EN standard
EN 60900
EN 60439-1
- Product type
Torque screwdriver set
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1529278 Wiha VDE Torque screwdriver set 14-piece 0.8 - 5 Nm DIN EN 60900
Description
Handle: VDE torque grip 1.0 - 5.0 Nm, fully adjustable. Bit holder with SoftFinish ® electric multi-component grip. Standards: tested according to IEC 60900.: 2012. Extra: 100% security by screwing with torque as specified by the manufacturer typgeprufter switching devices according to EN60439-1. Easy access to deep-lying screw clamps Well arranged in high quality and durable slot. Directly on the bit die-cast protective insulation, which is fully integrated into the bit on front. Unit-tested protective insulation 1,000 V AC, VDE and GS approved. Bit intake: Insulated bit holder made of metal holds all slimBits reliably. Only for 6 mm slimBits. For controlled screwing when working on conducting parts up to 1,000 V/AC.
Features
- Meets your requirements: Variable adjustable torque covers a wide range of applications
- Simplifies your work: All tools stored securely and in an orderly fashion in a robust and clear case.
- Increases your efficiency: The right torque protects you from material damage and rework.
- Protects your health: With patented SoftFinish® handle design for work that is easy on the hands and muscles. Recommended by doctors and therapists of the AGR!
- Provides you full protection: Each tool is individually tested at 10,000 V AC and approved for 1,000 V AC.
- Increases your safety: Wiha slimBits ensure good and protected access to deep-lying screws.
- For controlled screwing when working on conducting parts up to 1,000 V/AC.
- Extra: Incl. Factory testing protocol.
- Standards: Tested according to IEC 60900.
Scope of delivery
- VDE torque screwdriver, Working range 0.8 to 5 Nm (continuously adjustable)
- VDE bit holder with SoftFinish Handle
- VDE-insulated bit holder with mechanical locking technology, length 170 mm
- Adjustment Tool (torque-setter)
- Each 1 VDE-insulated slimTorque Spare Blades for Slot Screwdrivers 2.5 x 75, 3.5 x 75, 5.5 x 75 mm
- 1 VDE-insulated slimTorque Spare Blades for screws with Phillips (PH) Gr. 1 x 75, 2 x 75 mm
- 1 VDE-insulated slimTorque Spare Blades for screws with Phillips (PZD) Gr. 1 x 75, 2 x 75 mm
- 1 screwdriver each for plus-minus terminal screws Slot/PH and flat-tip/PZD.
Hints
This text is machine translated.
Frequently Bought Together
(*All information is plus legal VAT) This article
Wiha VDE Torque screwdriver set 14-piece 0.8 - 5 Nm DIN EN 60900
Conrad Electronic
€ 151.25*

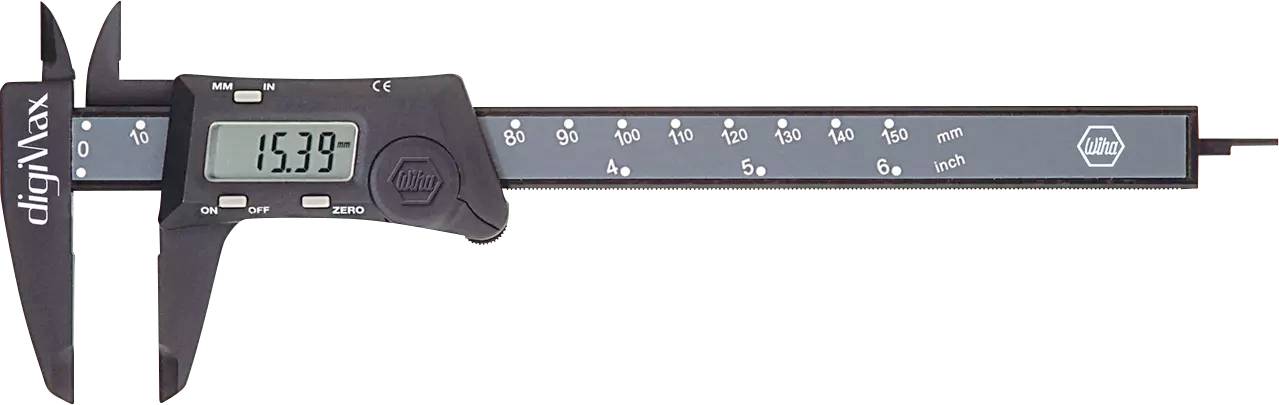

Wiha Dig.Messschieber 150mm Kunstst. Digimax Ables.0,01mm 29422 Digital caliper 150 mm
Conrad Electronic
€ 63.86*

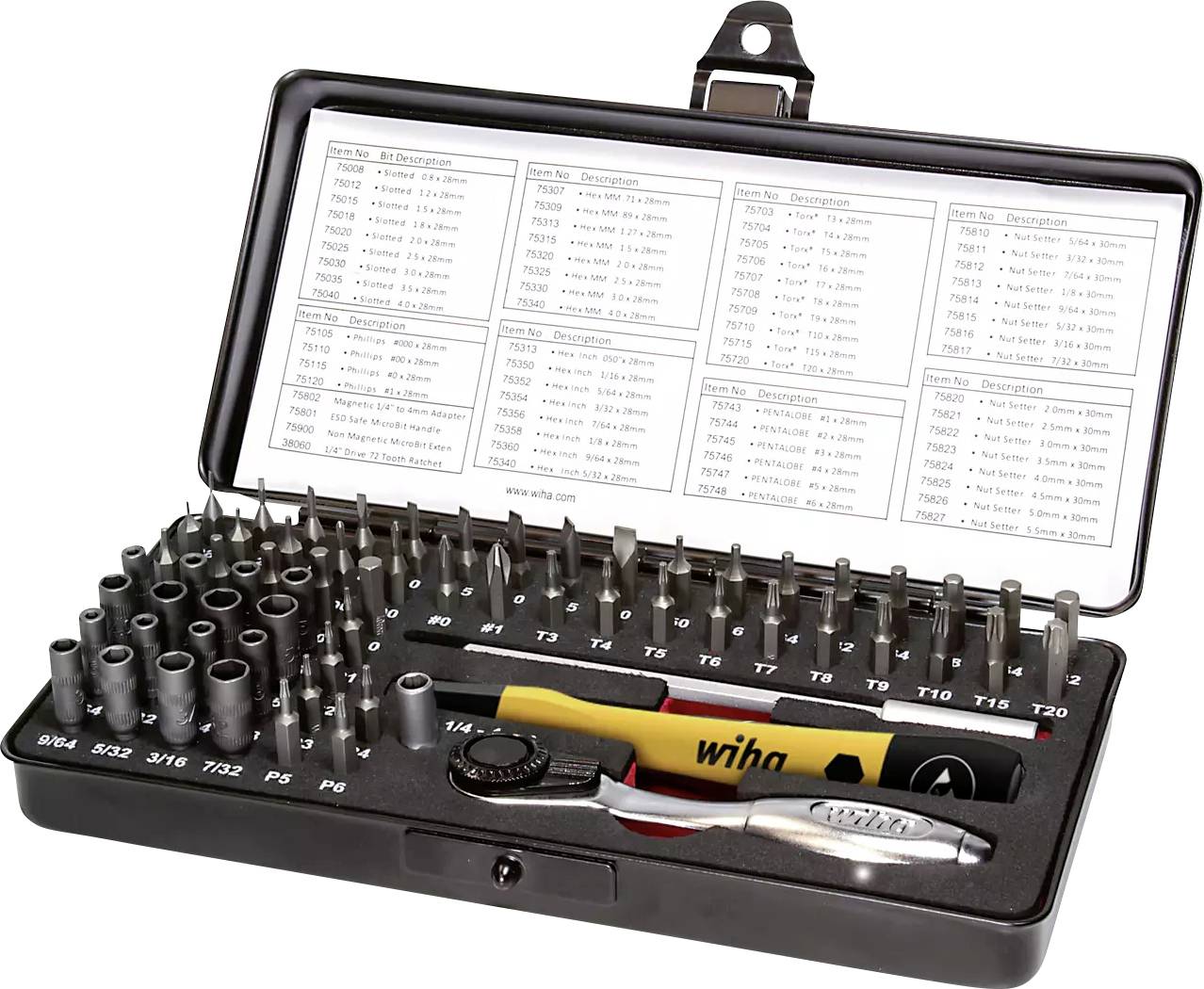

Wiha Micro-Bit-Set 65-tlg.m.Ratsche Schlitz/PH/6-kant in+auß/T/Pen 39971 Bit set 65-piece Slot, Phillips, Allen, Star so
Conrad Electronic
€ 100.83*

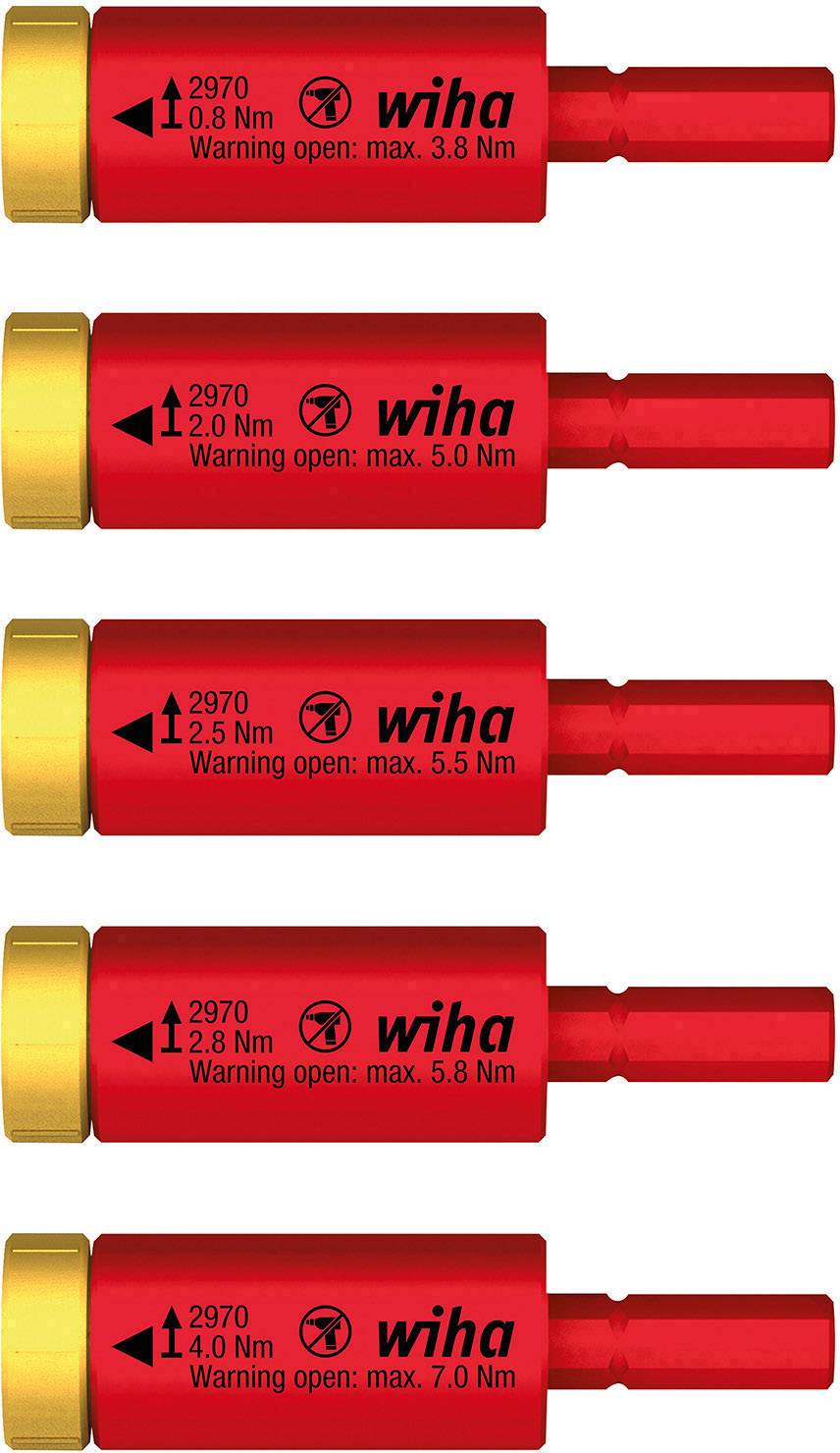

Wiha 41479 41479 Torque wrench adapter
