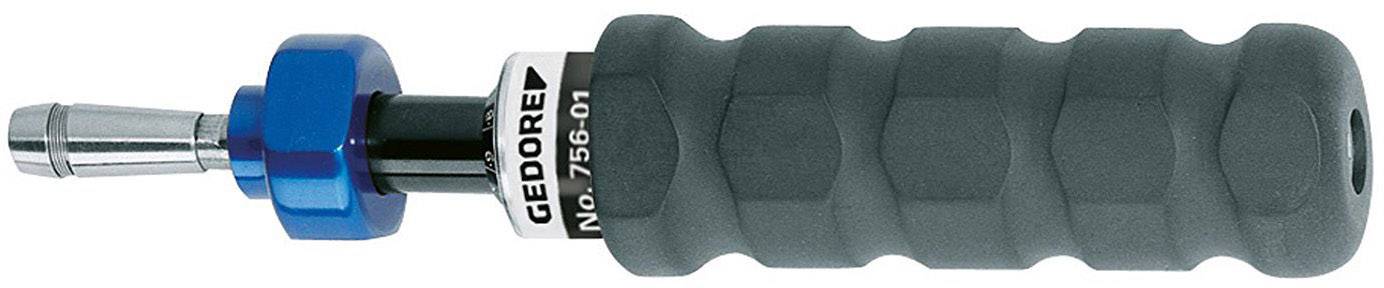

Buy Gedore 756-01 Torque screwdriver 24 - 120 Nm DIN EN ISO 6789

5 Piece(s)

Sales and shipping:

Piece(s)

Total (€ 222.69 / piece)

€

Only 5 Piece(s) available

Technical specifications

Application:
Controlled screw suit
Fast, controlled tightening enables series production
Electrical, electronics and apparatus engineering industry and industrial production or in quality control
Design:
Adjustable torque wrench - with scale
with 1/4" hexagonal holder for actuation of 1/4" bits according to DIN 3126 - C 6.3
with adapter also suitable for 1/4" socket wrench inserts according to DIN 3124
tripping accuracy: +/- 6% tolerance of the set value
Execution according to DIN EN ISO 6789, traceable to national normal
precision mechanism glides clearly upon reaching the set value by
automatic reset to the starting position
Adjustable-safe value locking by "positive-lock"-system automatically fixes the set value
Micrometer-scale division:
1 CN
m or 0.1 N
m EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications
Included:
Torque wrench type 756
1/4" adapter drive piece (No. 757-20)
Test certificate according to DIN EN ISO 6789
Delivery in sturdy cardboard
1/4" adapter drive piece (No. 757-20)
Models No. 756-06/-09 with additional cross-grip for easier work
Test certificate according to DIN EN ISO 6789
Delivery in stable cardboard
Contents:
756-01.757-20

User & Safety Instructions 1909566 Gedore 756-01 Torque screwdriver 24 - 120 Nm DIN EN ISO 6789

Information 1909566 Gedore 756-01 Torque screwdriver 24 - 120 Nm DIN EN ISO 6789

Use:
Controlled screw tightening in the range 0.08 - 9 N
m
High-speed, controlled tightening enables serial production
Electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control Features:
Adjustable torque screwdriver - with scale
With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3
With adapter also suitable for 1/4" square drive sockets as per DIN 3124
Actuation accuracy: +/- 6 % tolerance of the set value
Acc. to DIN EN ISO 6789, traceable to national standards
Precision radial ball clutch and cam design for controlled bi-directional tightening
Precision mechanism slips very noticeably through when the set torque is reached
Automatic resetting to the starting position
"Positive-Lock" system automatically fixes the set value preventing it from wrong setting.
4 models in the range 0.08 N
m to 9 N
m
Micrometre scaling: 1 cN
m and 0.1 N
m
Very convenient, lightweight and non-slip rubber handgrip
EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications Scope of delivery:
Torque wrench type 756
1/4" square/hexagon drive adapter (no. 757-20)
Models 756-06/-09 with additional sliding T-bar for ease of use
Test certificate acc. to DIN EN ISO 6789
Delivered in sturdy cardboard packaging
