Gedore 8573-00 7685530 Torque wrench Slipping 1/2" (12.5 mm) 40 - 200 Nm
EAN:
Part number:
Item no:
Technical specifications
- 8573-00 - GEDORE - Torque wrench DREMOMETER BC 1/2" 40-200 Nm
- Application:
- Controlled screw suit in the range of 40 - 200 N
- m / 30 - 150 lbf
- ft
- Application in almost all industrial production areas
- Design:
- Classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4 %) is exceeded for your safety
- 1/2" square drive with ball lock DIN 3120 - A 12.5, ISO 1174
- automatic short-travel release with sensitive and audible signal
- double scale with a division of 5 N
- m and 5 lbf
- ft
- with push-button release
- Technical advantage/function:
- Light, but robust (since housing made of one piece of aluminum) and insensitive, very workshop-friendly
- no value shifts and influence of the accuracy by working both-handed or operating outside the grip (as with conventional torque wrenches).
- Both the drive square as a pivot point are in an axis thus highly reliable for use, Can be extended to reduce the work load of the user
- extremely low wear by reducing the force of the lever mechanism
- forged lever chain from the company's own quality forge
- highest precision even with strong continuous use
- long life and long service life
- simple operation - fast and safe torque tightening
- pleasant setting through shapely, Captive adjustment button at the end of the grip
- single and double square for controlled right or left suit
- Features
Slipping
- Downforce
1/2" (12.5 mm)
- Torque (min.)
40 Nm
- Torque (max.)
200 Nm
- Trigger accuracy
3 %
- Graduation
5 Nm
- Length
553 mm
- DIN standard
DIN EN ISO 6789
- Weight
2.175 kg
- Width
70 mm
- Height
210 mm
Manufacturer's standards (with certificate)
- Product type
Torque wrench
Variants(All information is without VAT, plus shipping costs)
Length
Torque (min.)
Torque (max.)
Downforce
Gedore 7560-01 7708920 Torque wrench 3/8" (10 mm) 8 - 40 Nm
326.5 mm
8 Nm
40 Nm
3/8" (10 mm)
Minimum order quantity: 1
Multiple: 1
€ 407.56*
Gedore 7561-01 7709060 Torque wrench 1/2" (12.5 mm) 25 - 120 Nm
450 mm
25 Nm
120 Nm
1/2" (12.5 mm)
Minimum order quantity: 1
Multiple: 1
€ 469.75*
Gedore 7562-10 7709650 Torque wrench 1/2" (12.5 mm) 60 - 300 Nm
605 mm
60 Nm
300 Nm
1/2" (12.5 mm)
Minimum order quantity: 1
Multiple: 1
€ 575.63*
Gedore 8460-01 7703610 Torque wrench Calibrated to (DAkkS standards) For socket bits 8 - 40 Nm
366 mm
8 Nm
40 Nm
Minimum order quantity: 1
Multiple: 1
€ 390.76*
Gedore 8461-01 7704260 Torque wrench Calibrated to (DAkkS standards) For socket bits 25 - 120 Nm
489 mm
25 Nm
120 Nm
Minimum order quantity: 1
Multiple: 1
€ 436.13*
Gedore 8462-01 7704340 Torque wrench Calibrated to (DAkkS standards) For socket bits 80 - 400 Nm
645 mm
80 Nm
400 Nm
Minimum order quantity: 1
Multiple: 1
€ 545.38*
Gedore 8463-10 7703020 Torque wrench Calibrated to (DAkkS standards) For socket bits 140 - 620 Nm
846 mm
140 Nm
620 Nm
Minimum order quantity: 1
Multiple: 1
€ 1,024.37*
Gedore 8480-01 7714060 Torque wrench 9 x 12 mm socket square 8 - 40 Nm
361 mm
8 Nm
40 Nm
9 x 12 mm socket square
Minimum order quantity: 1
Multiple: 1
€ 419.33*
Gedore 8481-01 7714140 Torque wrench 9 x 12 mm socket square 25 - 120 Nm
484 mm
25 Nm
120 Nm
9 x 12 mm socket square
Minimum order quantity: 1
Multiple: 1
€ 466.39*
Gedore 8482-01 7714220 Torque wrench 14 x 18 mm socket square 80 - 400 Nm
653 mm
80 Nm
400 Nm
14 x 18 mm socket square
Minimum order quantity: 1
Multiple: 1
€ 587.39*
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908583 Gedore 8573-00 7685530 Torque wrench Slipping 1/2" (12.5 mm) 40 - 200 Nm
Information
Information 1908583 Gedore 8573-00 7685530 Torque wrench Slipping 1/2" (12.5 mm) 40 - 200 Nm
Description
Features
- Use:
- Controlled screw tightening in the range 40-200 N
- m / 30-150 lbf
- ft
- For use in almost all industrial manufacturing areas Features:
- Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
- 1/2" square drive with ball locking device DIN 3120 - A 12.5, ISO 1174
- Automatic short-path actuation with tactile impulse and audible signal
- Dual scale with a scale graduation of 5 N
- m and 5 lbf
- ft
- With push-button release
- Technical advantage/Function:
- Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
- No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
- Extremely low wear attributable to reduced forces in a unique lever mechanism
- Forged lever chain from our own quality forge
- Maximum precision even when subjected to extreme continuous use
- Long life cycles and tool lives
- Easy operation - fast and safe torque tightening
- Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
- Single- and double-square drive for controlled bi-directional tightening
Frequently Bought Together
(*All information is plus legal VAT) This article
Gedore 8573-00 7685530 Torque wrench Slipping 1/2" (12.5 mm) 40 - 200 Nm
Conrad Electronic
€ 483.19*
TOOLCRAFT kneeboard knee mat 2180569 Dimensions 450 x 250 x 30 mm
Conrad Electronic
€ 10.92*

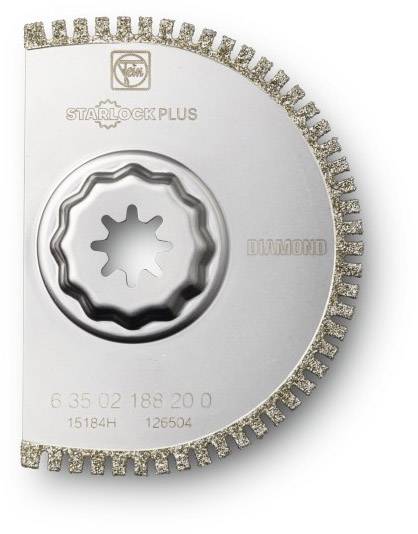

Fein 63502188210 Diamond Semicircle blade 1.2 mm 90 mm 1 pc(s)
