Gerth FL6.18 PCB mount transformer 2 x 115 V 2 x 9 V AC 6 VA 333 mA
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 14.99 / piece)
€ 14.99
incl. VAT
14-day return policy included
Highlights & Details
UI 30/10.5 Flat transformer
- 2 x 115 V
- 2 x 9 V AC
- 333 mA
- 6 VA
Technical specifications
- Product type
PCB mount transformer
- Output voltage
9 V AC
- Output voltage (number x voltage)
2 x 9 V AC
- Output current
333 mA
- No. of inputs
2 x
- No. of outputs
2 x
- Input voltage
115 V
- Input voltage (number x voltage)
2 x 115 V
6 VA
- Width
53 mm
- Height
22 mm
- Length
44 mm
- Type
FL6.18
- Dim

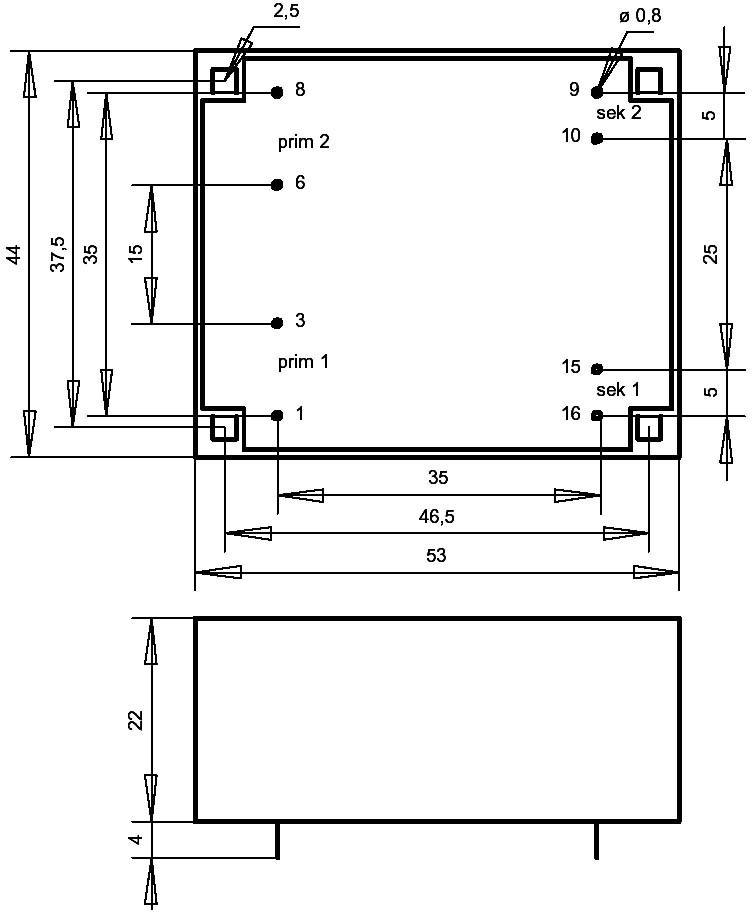

(L x W x H) 44 x 53 x 22 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Weight
175 g
- Content
1 pc(s)
- Max. ambient temperature
+70 °C
Documents & Downloads
Datasheet
Datasheet 1092983 Gerth FL6.18 PCB mount transformer 2 x 115 V 2 x 9 V AC 6 VA 333 mA
User & Safety Instructions
User & Safety Instructions 1092983 Gerth FL6.18 PCB mount transformer 2 x 115 V 2 x 9 V AC 6 VA 333 mA
