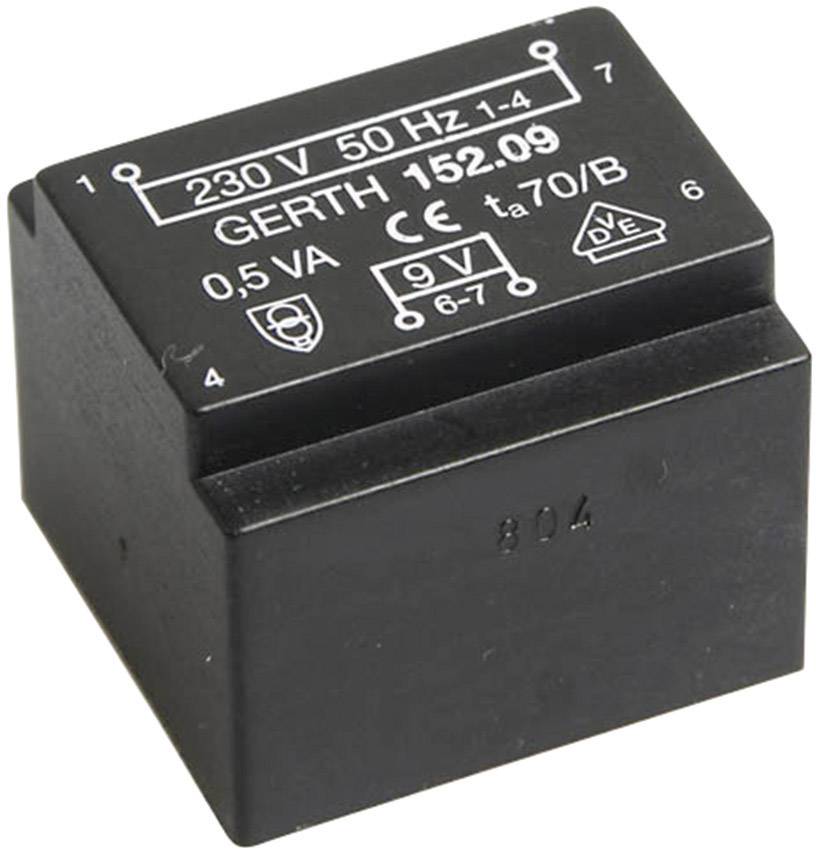

Image similar
1/3
Image similar
Gerth PT202401 PCB mount transformer 1 x 230 V 1 x 24 V AC 0.50 VA 20 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2.51 / piece)
€ 5.87
-57 %
€ 2.51
plus VAT.
Highlights & Details
EE 20/10.5 Print transformer
- 1 x 230 V
- 1 x 24 V AC
- 20 mA
- 0.50 VA
Technical specifications
- Output voltage
24 V AC
- Output voltage (number x voltage)
1 x 24 V AC
- Output current
20 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
0.50 VA

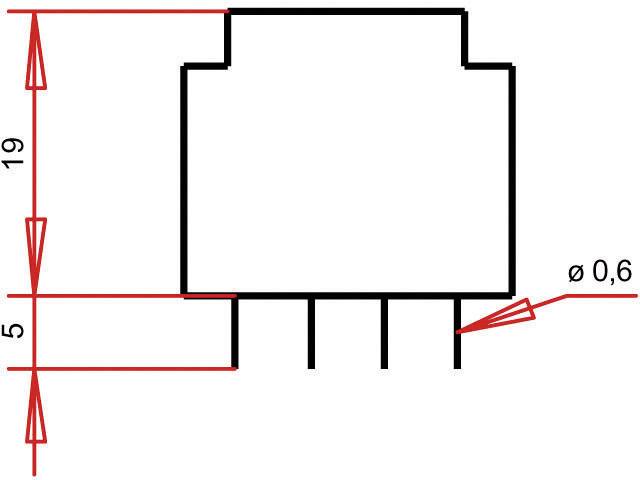

- Width
22 mm
- Height
19 mm
- Length
24 mm
- Type
PT202401
- Content
1 pc(s)

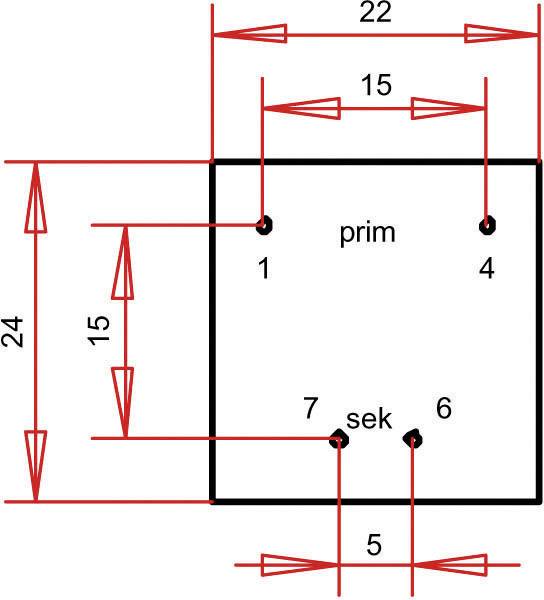

- Dim
(L x W x H) 24 x 22 x 19 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Max. ambient temperature
+70 °C
- Weight
38 g
- Product type
PCB mount transformer
