Gerth PT300901 PCB mount transformer 1 x 230 V 1 x 9 V AC 1.80 VA 200 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
Only 3 Piece(s) available
Highlights & Details
EI 30/15.5 Print transformer
- 1 x 230 V
- 1 x 9 V AC
- 200 mA
- 1.80 VA
Technical specifications
- Output voltage
9 V AC
- Output voltage (number x voltage)
1 x 9 V AC
- Output current
200 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
1.80 VA
- Width
32 mm
- Height
27 mm
- Length
27 mm
- Type
PT300901
- Content
1 pc(s)

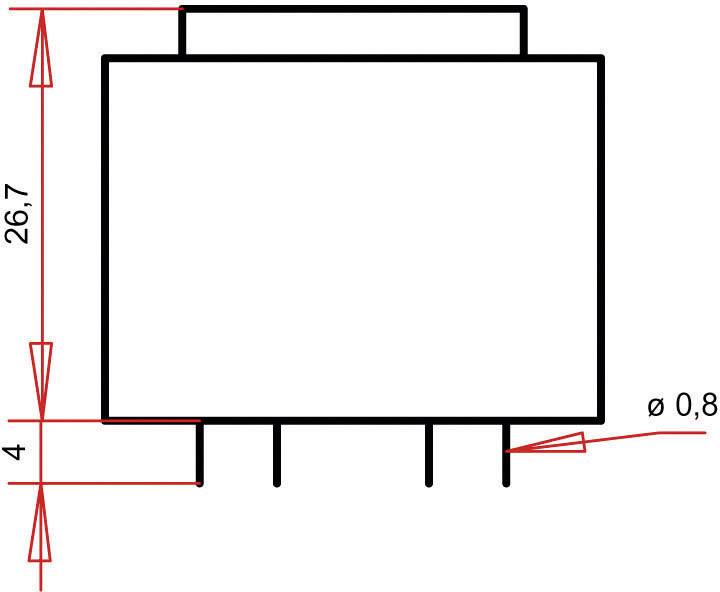

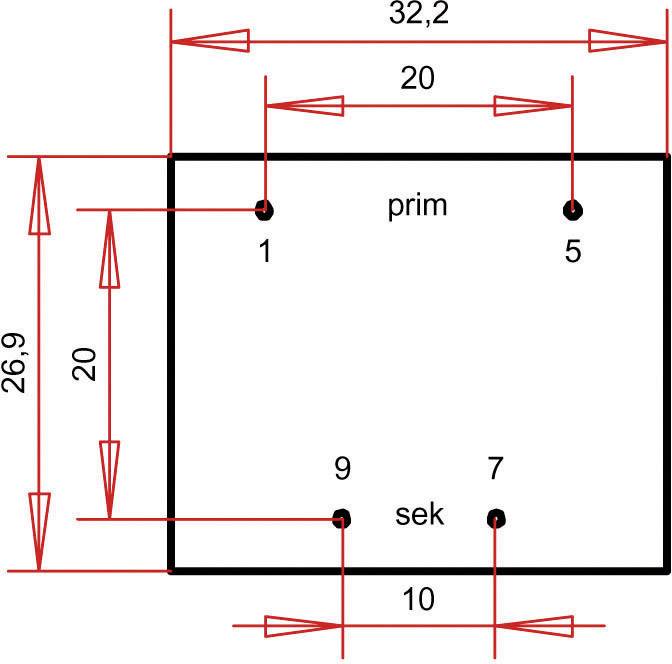

- Dim
(L x W x H) 27 x 32 x 27 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Max. ambient temperature
+70 °C
- Weight
100 g
- Product type
PCB mount transformer
