Gerth PT302402 PCB mount transformer 1 x 230 V 2 x 12 V AC 1.80 VA 75 mA

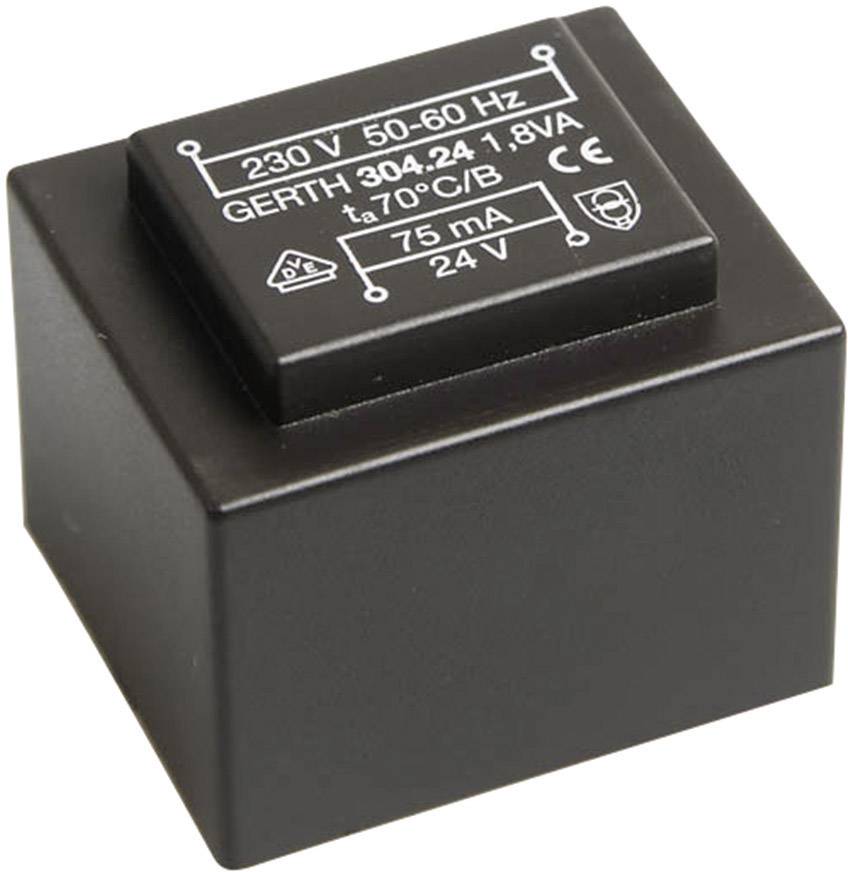

Black cuboid transformer, labelled '230 V 50-60 Hz', Model GERTH 304-24, Rated power 1.8 VA, Output 24 V, 75 mA.

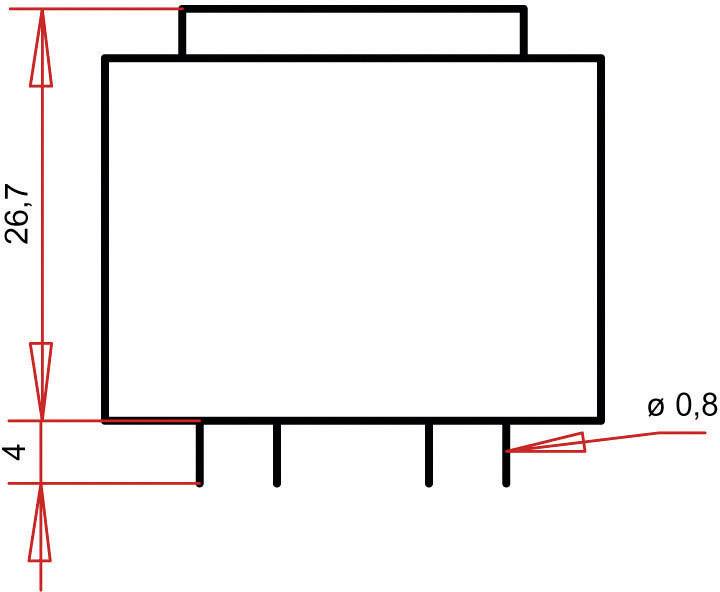

Technical drawing of a rectangular component with dimensions: height 26.7 mm, width 4 mm, and a diameter of 0.8 mm.

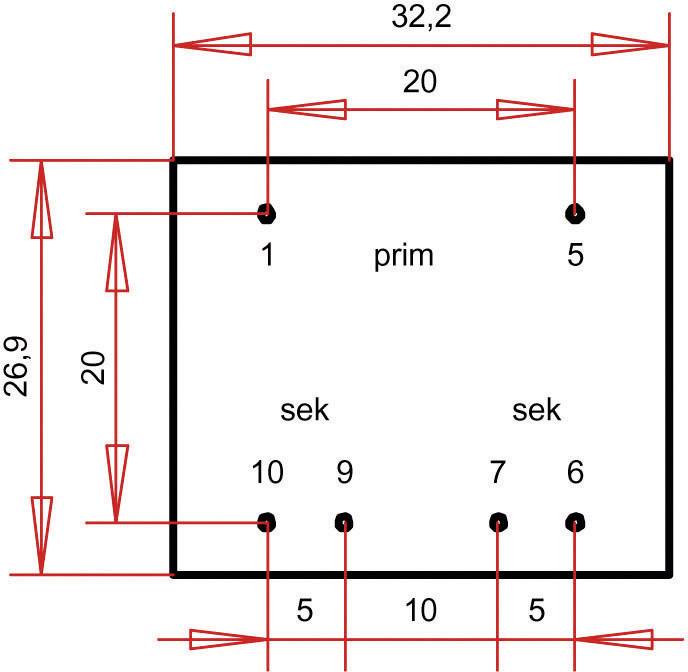

Rectangular diagram with dimensions 32.2 x 26.9. Points at the top labelled 'prim 1' and 'prim 5'. Points at the bottom 'sec 10, 9, 7, 6'.
1/3
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
1 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 4.29 / piece)
€ 6.99
-39 %
€ 4.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

EI 30/15.5 Print transformer

  • 1 x 230 V
  • 2 x 12 V AC
  • 75 mA
  • 1.80 VA

Technical specifications

Product type

PCB mount transformer

Output voltage

12 V AC

Output voltage (number x voltage)

2 x 12 V AC

Output current

75 mA

No. of inputs

1 x

No. of outputs

2 x

Input voltage

230 V

Input voltage (number x voltage)

1 x 230 V

1.80 VA

Width

32 mm

Height

27 mm

Length

27 mm

Type

PT302402

Dim

(L x W x H) 27 x 32 x 27 mm

Connection

Soldering

Frequency

50 - 60 Hz

Weight

100 g

Content

1 pc(s)

Max. ambient temperature

+70 °C

Documents & Downloads

Datasheet

Datasheet 1092879 Gerth PT302402 PCB mount transformer 1 x 230 V 2 x 12 V AC 1.80 VA 75 mA

User & Safety Instructions

User & Safety Instructions 1092879 Gerth PT302402 PCB mount transformer 1 x 230 V 2 x 12 V AC 1.80 VA 75 mA
