Gerth PT482402F PCB mount transformer 1 x 230 V 2 x 12 V AC 10 VA 416 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Only 4 Piece(s) available
Highlights & Details
EI 48/16.8 Print transformer with flange
- 1 x 230 V
- 2 x 12 V AC
- 416 mA
- 10 VA
Technical specifications
- Output voltage
12 V AC
- Output voltage (number x voltage)
2 x 12 V AC
- Output current
416 mA
- No. of inputs
1 x
- No. of outputs
2 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
10 VA
- Width
50 mm
- Height
34 mm
- Length
42 mm
- Type
PT482402F
- Content
1 pc(s)

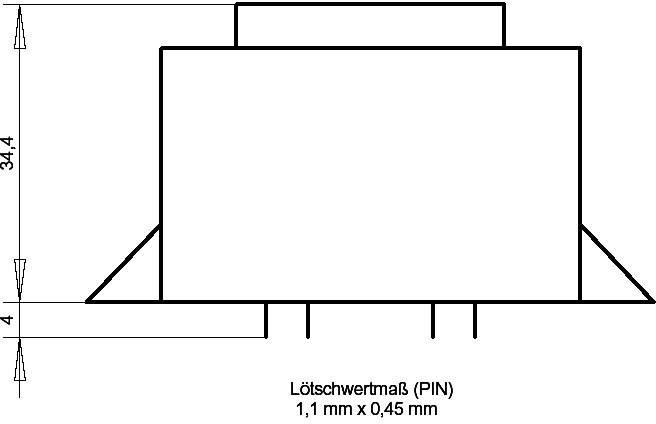

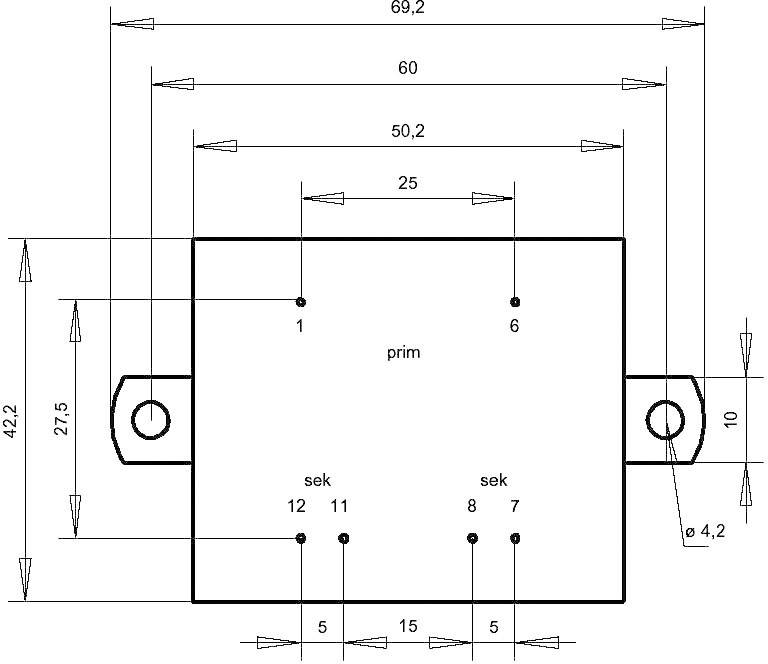

- Dim
(L x W x H) 42 x 50 x 34 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Max. ambient temperature
+70 °C
- Weight
295 g
- Product type
PCB mount transformer
