Gerth PTF422402 PCB mount transformer 1 x 230 V 2 x 12 V AC 8 VA 333 mA
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 8.49 / piece)
€ 8.49
incl. VAT
Only 1 Piece(s) available
Highlights & Details
EI 42/20 Print transformer
- 1 x 230 V
- 2 x 12 V AC
- 333 mA
- 8 VA
Technical specifications
- Product type
PCB mount transformer
- Output voltage
12 V AC
- Output voltage (number x voltage)
2 x 12 V AC
- Output current
333 mA
- No. of inputs
1 x
- No. of outputs
2 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
8 VA
- Width
45 mm

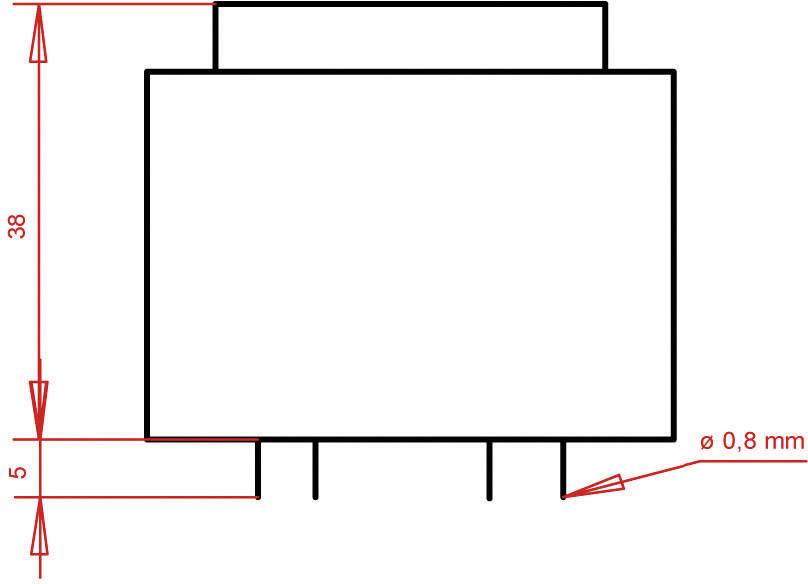

- Height
38 mm
- Length
38 mm
- Type
PTF422402

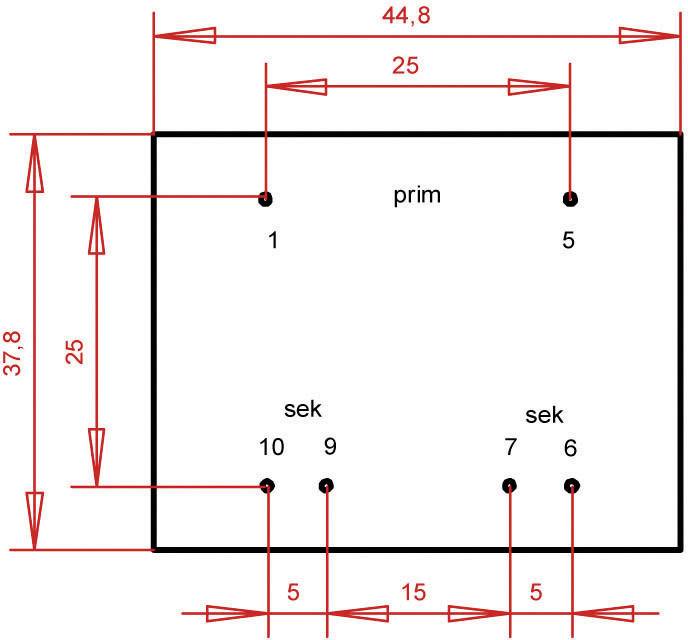

- Dim
(L x W x H) 38 x 45 x 38 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Weight
250 g
- Content
1 pc(s)
- Max. ambient temperature
+70 °C
Documents & Downloads
Datasheet
Datasheet 1092939 Gerth PTF422402 PCB mount transformer 1 x 230 V 2 x 12 V AC 8 VA 333 mA
User & Safety Instructions
User & Safety Instructions 1092939 Gerth PTF422402 PCB mount transformer 1 x 230 V 2 x 12 V AC 8 VA 333 mA
