Gesipa 1464926 Blind rivet Steel Steel Steel 250 pc(s)
EAN:
Part number:
Item no:
Product type
Blind rivet
Material (spike)
Steel
Material (sleeve)
Steel
Material
Steel
Max. clamping range
6.0 mm
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 250 pc(s))
Total (€ 0.09 / piece)
€ 22.68
plus VAT.
14-day return policy included
Technical specifications
- Product type
Blind rivet
- Content
250 pc(s)
- Material (spike)
Steel
- Material (sleeve)
Steel
- Material
Steel
- Max. clamping range
6.0 mm
- Min. clamping range
1.5 mm
- Tubular rivet diameter
4.8 mm
- Tubular rivet length
11 mm
- Clamping range
1.5 - 6.0 mm
- Head Ø
10
- Head height
1.6 mm
- Rivet mandrel diameter
3 mm
- Shear force
2700 N
- Head shape
Truss head
- Tensile force (max.)
3800 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2911084 Gesipa 1464926 Blind rivet Steel Steel Steel 250 pc(s)
Description

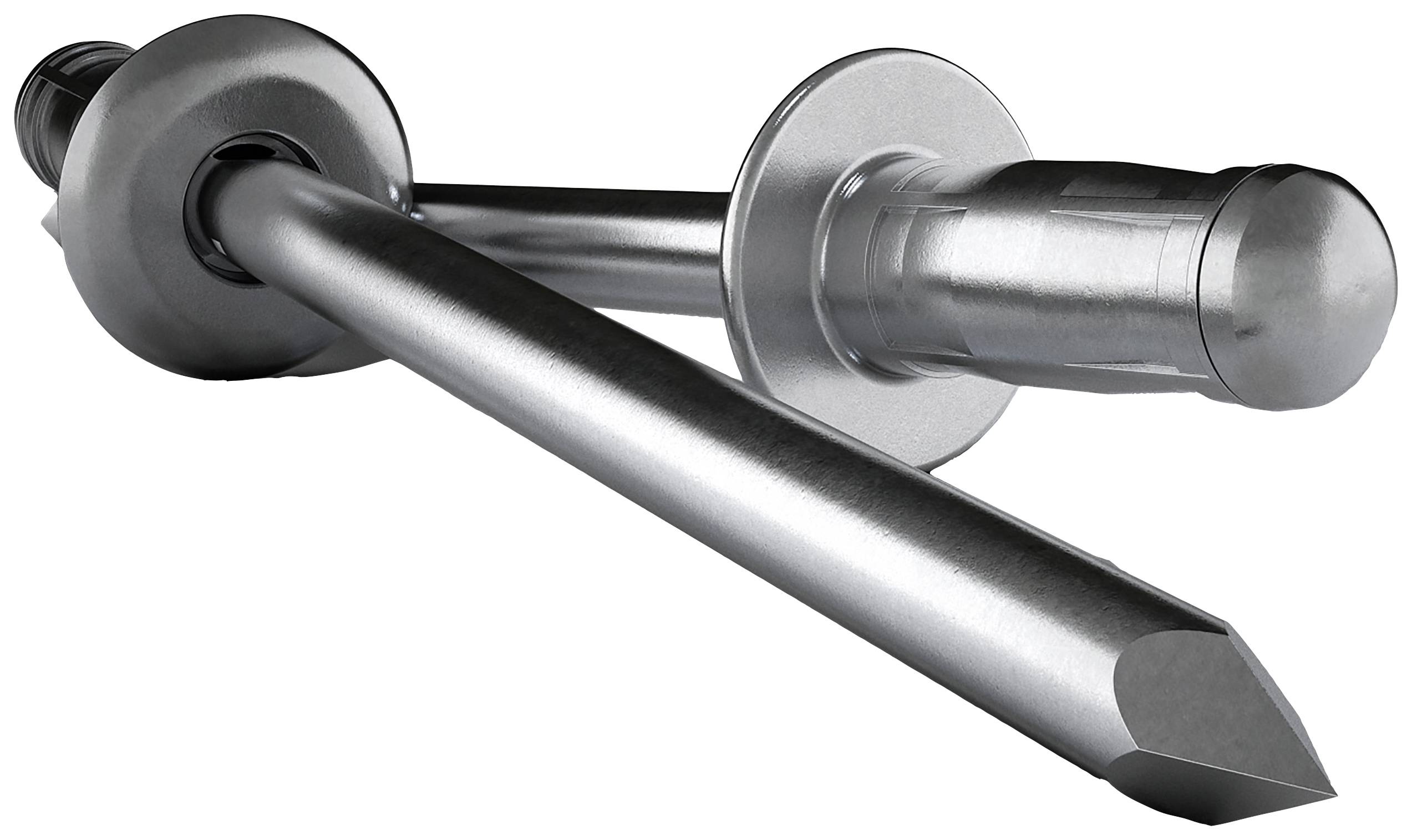

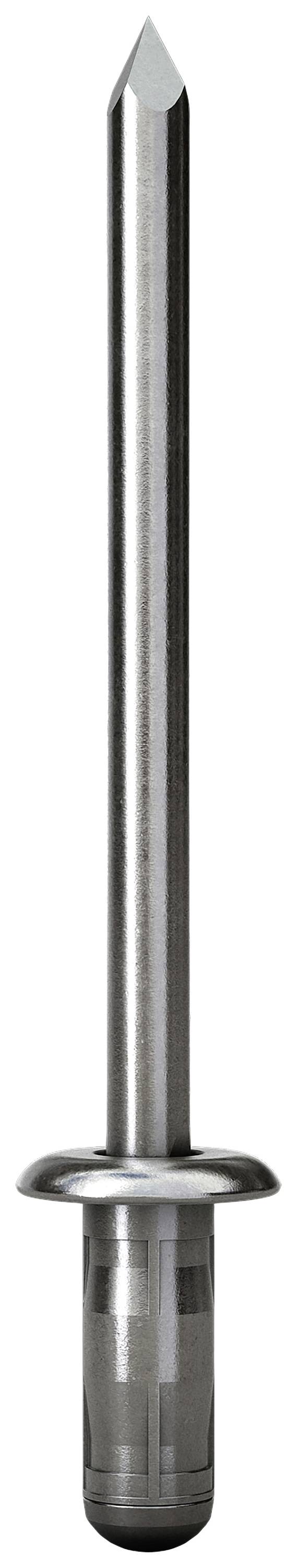

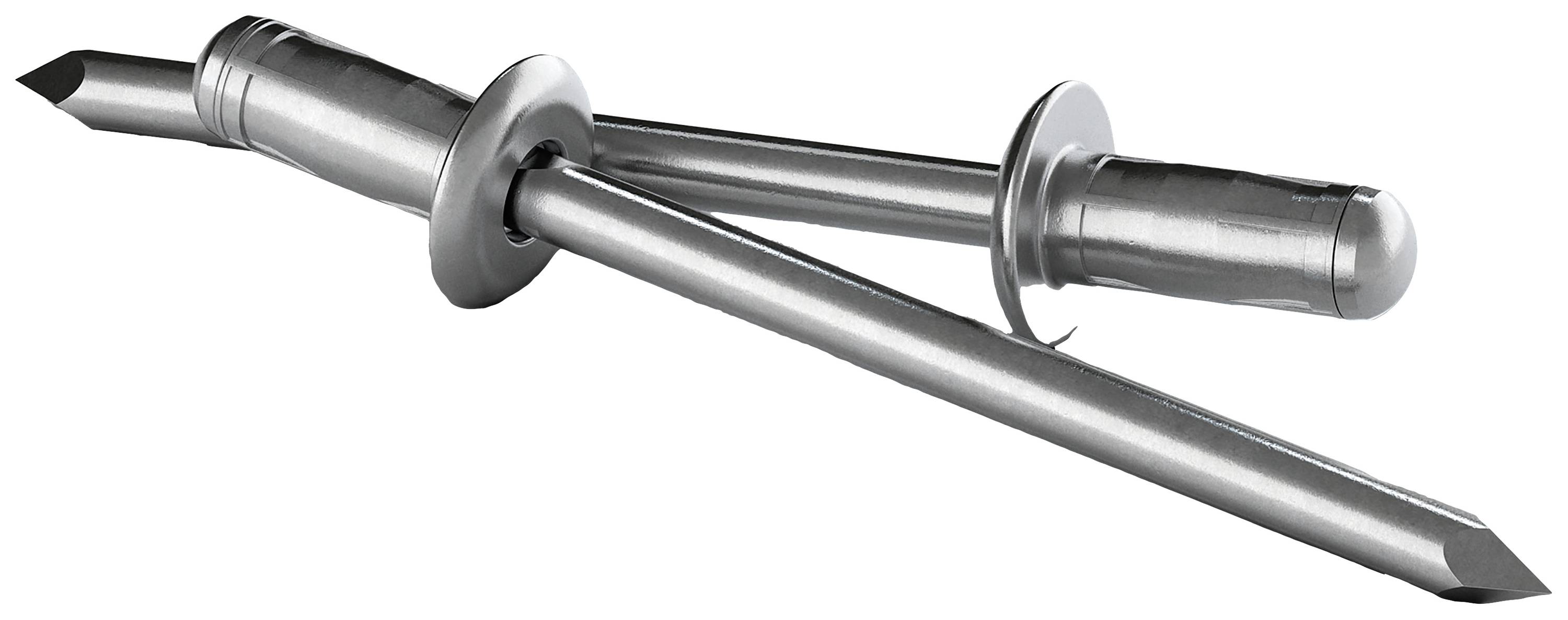

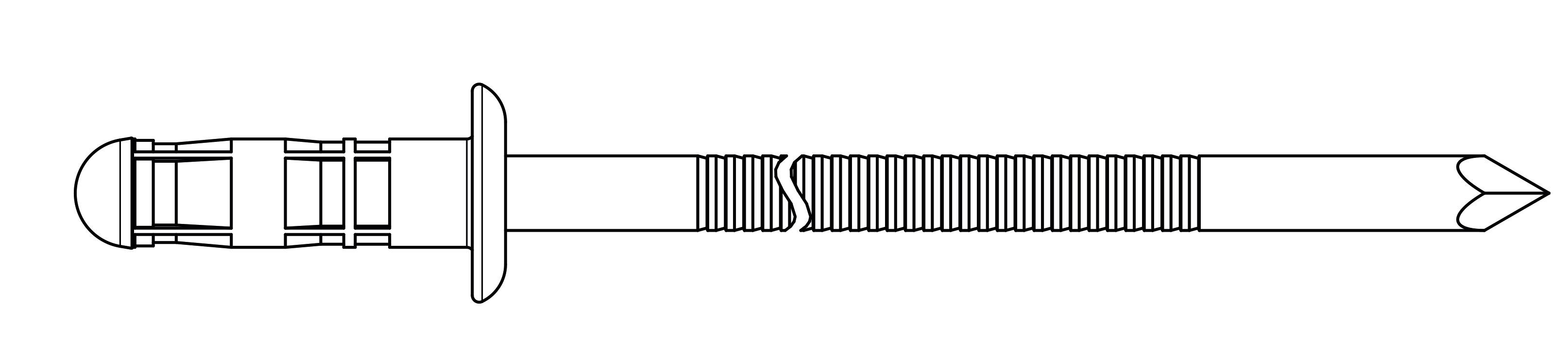

PolyBulb blind rivet
Very large washer-shaped closing head formation - perfect for sensitive applications with soft and brittle materials
Washer-shaped closing head
This high-quality locking head equally distributes the contact pressure on the component and is thus the perfect
Connectors for riveting soft and brittle components such as plastics and composite materials.
The PolyBulb blind rivet achieves an extremely aesthetic setting pattern.
Large clamping range
A PolyBulb blind rivet replaces up to three conventional blind rivets and reduces the variety of parts. The summary
Multiple dimensions save handling and storage costs and also reduce the likelihood of confusion
At the workplace and consequently downstream quality problems.
Controlled bore
The PolyBulb blind rivet provides optimum connection by means of a drill hole filling adapted to the requirements.
Advantages
- Large clamping range
- Washer-shaped closing head formation with large closing head-Ø
- Aesthetic setting image, only a distinct closing head
- High tensile strength and tensile strength (especially in the case of plastic combed material)
- Controlled pipework
- Excellent clamping properties
- Locked residual rivet punch
- Non-rattling application
- Process controllable
