Technical specifications

Material: Plastic
Material quality: Thermoplastic
Surface protection: Other
Surface design: Glossy
Transparent: No.
Design: Protection contact CEE 7/3 (type F)
Mains frequency: 50/60 Hz.
Connection type: Plug-in terminal
Halogen-free: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Antibacterial treatment: No.
With orientation light: No.
Text field/label area: No.
Earthing contact: Other
With signal lamp: No.
Number of sockets: 1
With hinged cover: No.
With increased protection against accidental contact: No.
Metallic color: No.
Lockable: No.
Ejection mechanism: No.
Insulated installation: Yes
With function light: No.
Surge protection: No.
Fault current protection: No.
With micro-fuse: No.
With loop-through function: No.
With On / Off switch: No.
Turned central insert: No.
Device width 55 mm
Device height 55 mm
For "difficult conditions" according to VDE: No.

Type: Safety plug System 55 Orange 4455109

Product type: PG socket

Factory colour: Orange

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3821578 GIRA PG socket Orange 4455109 1 pc(s)

Description

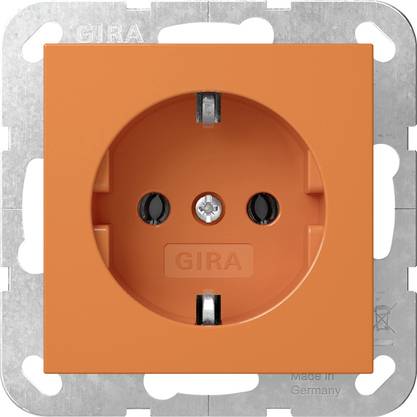

Earthing contact socket-outlet (type F) 16 A 250 V~ Orange glossy with orange cover Features: - Carry ring is grounded in connection with the mounting claws and claw screws. - Quick mounting (approx. 3.5 turns per mounting claw). - Enclosed expansion claws. - Easier claw attachment with rugged screw head drive PZ1 / slit / PH - Simplified installation through patented arrangement of large keyhole profiles using can screws. - Low mounting depth. - Large, ergonomically shaped release levers. - Robust grounding strap with solid grounding fingers. - Stable and corrosion-resistant steel carrier ring. - Unbreakable thermoplastic base. Notes: - The sockets of the safety plug sockets are color-coded.

This text is machine translated.
