Technical specifications

Suitable for protection class (IP): IP44
Material: Plastic
Material quality: Thermoplastic
Surface protection: Other
Transparent: No.
Mounting method: Other
Design: Other
Mains frequency: 50/60 Hz.
Connection type: Plug-in terminal
Halogen-free: Yes
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Antibacterial treatment: No.
With orientation light: No.
Imprint/marking: Without
Text field/label area: No.
Earthing contact: Other
With signal lamp: Yes
Number of sockets: 1
Number of modules (for modular design): 1
With hinged cover: No.
With increased protection against accidental contact: Yes
Metallic color: No.
Lockable: No.
Ejection mechanism: No.
Insulated mounting: No.
With function light: No.
Surge protection: No.
Fault current protection: Yes
With micro-fuse: No.
Special power supply: Without
With loop-through function: No.
With On / Off switch: No.
Turned central insert: No.
For "difficult conditions" according to VDE: No.
Rated fault power: 30 mA

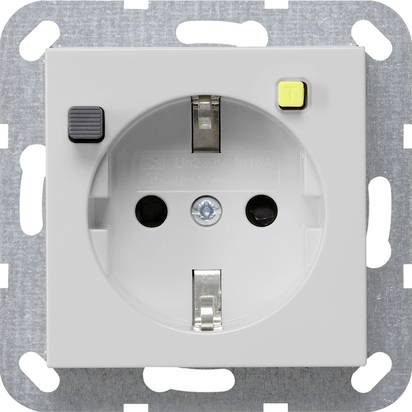

Type: FI-protection-socket RWs 30mA with hinged lid 267730

Product type: RCB socket

Factory colour: Grey

Nominal voltage: 230 V

Nominal current: 16 A

Content: 1 pc(s)

Mounting type: Surface-mount

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3823687 GIRA RCB socket Grey 267730 1 pc(s)

Description

FI protective socket 30 mA with hinged lid and increased contact protection (Safety Plus) Grey Features: - The FI protective socket is a stationary protective device with voltage-independent fault current triggering as defined by VDE 0664. - The operating principle corresponds to that of a residual current circuit breaker. Notes: - Increased safety plus contact protection according to DIN VDE 0620-1. - Fault current protection devices (RCDs) in a unit with a power outlet can also provide protection for a neighboring outlet (under a common cover), DIN VDE 0100-530:2018-06.

This text is machine translated.
