Technical specifications

Suitable for protection class (IP): IP44
Material: Plastic
Material quality: Thermoplastic
Surface protection: Painted
Transparent: No.
Mounting type: Claw / screw attachment
Design: Protection contact CEE 7/3 (type F)
Mains frequency: 50/60 Hz.
Connection type: Plug-in terminal
Halogen-free: Yes
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Antibacterial treatment: No.
With orientation light: No.
Imprint/marking: Other
Text field/label area: No.
Earthing contact: Other
With signal lamp: No.
Number of sockets: 1
Number of modules (for modular design): 1
With hinged cover: Yes
With increased protection against accidental contact: No.
Metallic color: No.
Lockable: No.
Ejection mechanism: No.
Insulated mounting: No.
With function light: No.
Surge protection: No.
Fault current protection: No.
With micro-fuse: No.
Special power supply: Without
With loop-through function: No.
With On / Off switch: No.
Turned central insert: No.
For "difficult conditions" according to VDE: No.

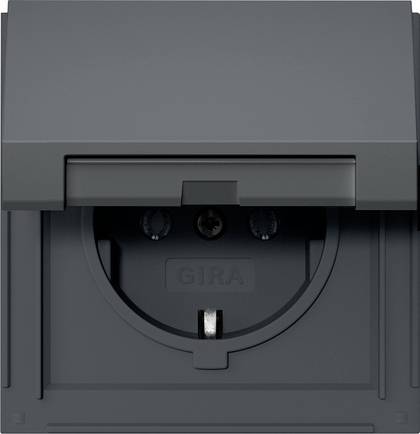

Type: Socket KD TX-44 anthracite 445467

Product type: Socket

Factory colour: Anthracite

Nominal voltage: 250 V

Nominal current: 16 A

Content: 1 pc(s)

Similar RAL: 7016

Mounting type: Flush mount

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3822933 GIRA Socket Anthracite 445467 1 pc(s)

Description

Earthing contact socket-outlet (type F) 16 A 250 V~ with hinged lid anthracite TX_44 Features: - Bearing ring is grounded in connection with the mounting claws and claw screws. - Quick mounting (approx. 3.5 turns per mounting claw). - Enclosed expansion claws. - Easier claw attachment with rugged screw head drive PZ1 / slit / PH - Simplified installation through patented arrangement of large keyhole profiles using can screws. - Low mounting depth. - Large, ergonomically shaped release levers. - Robust grounding strap with solid grounding fingers. - Stable and corrosion-resistant steel carrier ring. - Unbreakable thermoplastic base.

This text is machine translated.
