GIRA Socket Black 4489005 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Suitable for protection class (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Surface protection: Painted
- Design of surface: Matt
- Transparent: No.
- Mounting type: Claw / screw attachment
- Design: Other
- Connection type: Plug-in terminal
- Halogen-free: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Antibacterial treatment: No.
- With orientation light: Yes
- Imprint/marking: Without
- Text field/label area: No.
- Earth contact: Round
- Number of active contacts (round): 1
- Mounting direction: Horizontal and vertical
- With signal lamp: Yes
- Number of sockets: 1
- Number of modules (for modular design): 1
- With hinged cover: No.
- With increased protection against accidental contact: Yes
- Metallic color: No.
- Lockable: No.
- Ejection mechanism: No.
- Insulated mounting: No.
- With function light: No.
- Surge protection: No.
- Fault current protection: No.
- With micro-fuse: No.
- Special power supply: Without
- With loop-through function: No.
- With On / Off switch: No.
- Turned central insert: No.
- Device width 55 mm
- Device height 55 mm
- For "difficult conditions" according to VDE: No.
- Type
Plug Black LED 4489005 ground pin
- Product type
Socket
- Factory colour
Black
- Nominal voltage
250 V
- Nominal current
16 A
- Content
1 pc(s)
- Mounting type
Flush mount
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3822338 GIRA Socket Black 4489005 1 pc(s)
Datasheet 3822338 GIRA Socket Black 4489005 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3822338 GIRA Socket Black 4489005 1 pc(s)
Description

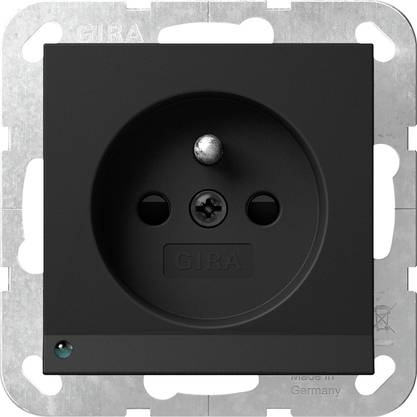

Socket with earthing pin 16 A 250 V~, LED-orientation lamp and increased contact protection (Safety Plus) Black matte (painted) System 55 - socket with earthing pin and embedded light strip. - The white-lit LEDs throw a light corridor downwards. This provides indirect orientation lighting, which does not cause annoying glare even in bedrooms. - The built-in twilight sensor automatically switches the LED light on only at dusk and off again when there is sufficient light. - The LED light is completely integrated into the cover and no separate clamping is required. - With plug-in terminals. - The bearing ring is grounded in conjunction with the mounting claws and claw screws. - Quick mounting (approx. 3.5 turns per mounting claw). - Enclosed expansion claws. - Easier claw attachment with rugged screw head drive PZ1 / slit / PH - Simplified installation through patented arrangement of large keyhole profiles using can screws. - Low mounting depth. - Large, ergonomically shaped release levers. - Robust grounding strap with solid grounding fingers. - Stable and corrosion-resistant steel carrier ring. - Unbreakable thermoplastic base. Approved in accordance with NF C 61-314:2017. Approved in accordance with NBN C 61-112-1:2017. Increased protection against accidental contact (Safety Plus) according to DIN VDE 0620-1.
