GIRA Socket Grey 4457015 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Suitable for protection class (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Surface protection: Painted
- Design of surface: Matt
- Transparent: No.
- Mounting type: Claw / screw attachment
- Design: Protection contact CEE 7/3 (type F)
- Mains frequency: 50/60 Hz.
- Connection type: Plug-in terminal
- Halogen-free: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Antibacterial treatment: No.
- With orientation light: No.
- Imprint/marking: Without
- Text field/label area: Yes
- Earthing contact: Other
- With signal lamp: No.
- Number of sockets: 1
- Number of modules (for modular design): 1
- With hinged cover: No.
- With increased protection against accidental contact: No.
- Metallic color: No.
- Lockable: No.
- Ejection mechanism: No.
- Insulated mounting: No.
- With function light: No.
- Surge protection: No.
- Fault current protection: No.
- With micro-fuse: No.
- Special power supply: Without
- With loop-through function: No.
- With On / Off switch: No.
- Turned central insert: No.
- Device width 55 mm
- Device height 55 mm
- For "difficult conditions" according to VDE: No.
- Type
Socket BSF Grey 4457015
- Product type
Socket
- Factory colour
Grey
- Nominal voltage
250 V
- Nominal current
16 A
- Content
1 pc(s)
- Mounting type
Flush mount
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3823787 GIRA Socket Grey 4457015 1 pc(s)
Description

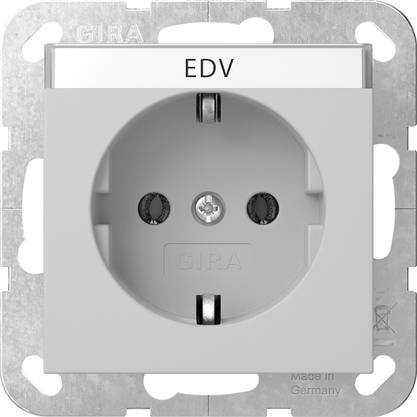

Earthing contact socket-outlet (type F) 16 A 250 V~ with labeling field gray matt (painted) System 55 Features: - Carry ring is grounded in connection with the fixing claws and claw screws. - Quick mounting (approx. 3.5 turns per mounting claw). - Enclosed expansion claws. - Easier claw attachment with rugged screw head drive PZ1 / slit / PH - Simplified installation through patented arrangement of large keyhole profiles using can screws. - Low mounting depth. - Large, ergonomically shaped release levers. - Robust grounding strap with solid grounding fingers. - Stable and corrosion-resistant steel carrier ring. - Unbreakable thermoplastic base. Scope of delivery: - "EDP" label is attached.
