Laboratory device for programming and displaying electrical values. Digital screen shows voltages, currents, and frequencies. Control elements on the right.

Laboratory device for programming and displaying electrical values. Digital screen shows voltages, currents, and frequencies. Control elements on the right.

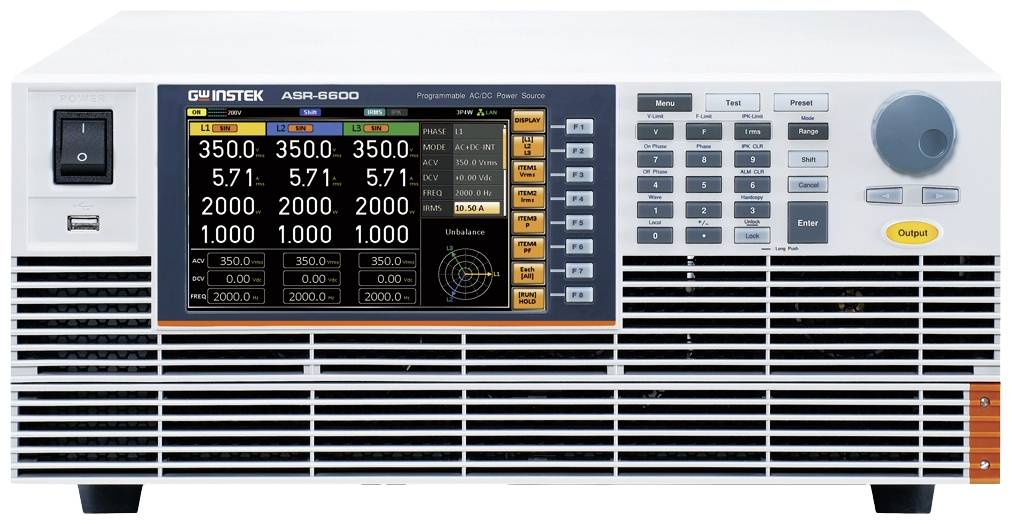

Programmable power supply unit with digital display, showing various voltage and current values; keypad for operation.

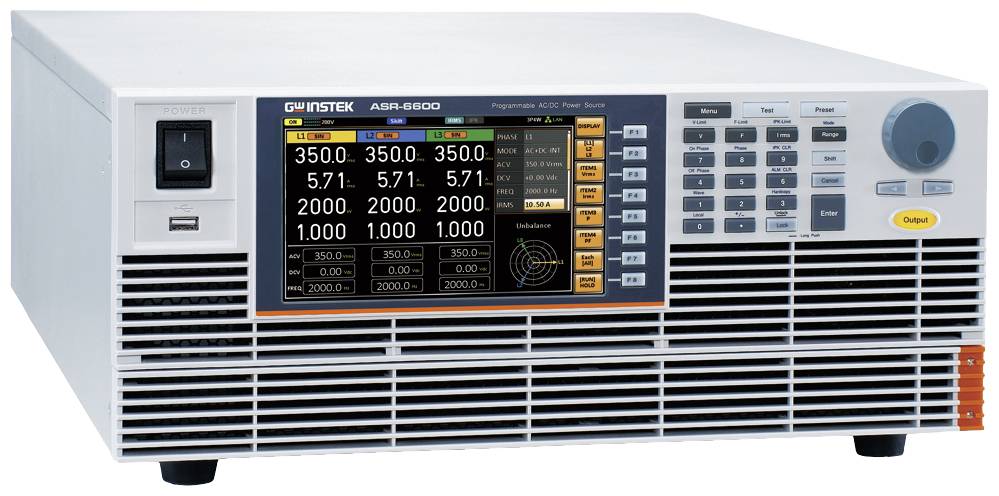

A programmable alternating current power supply displays voltages and frequencies on the screen. Controls and connections are visible.

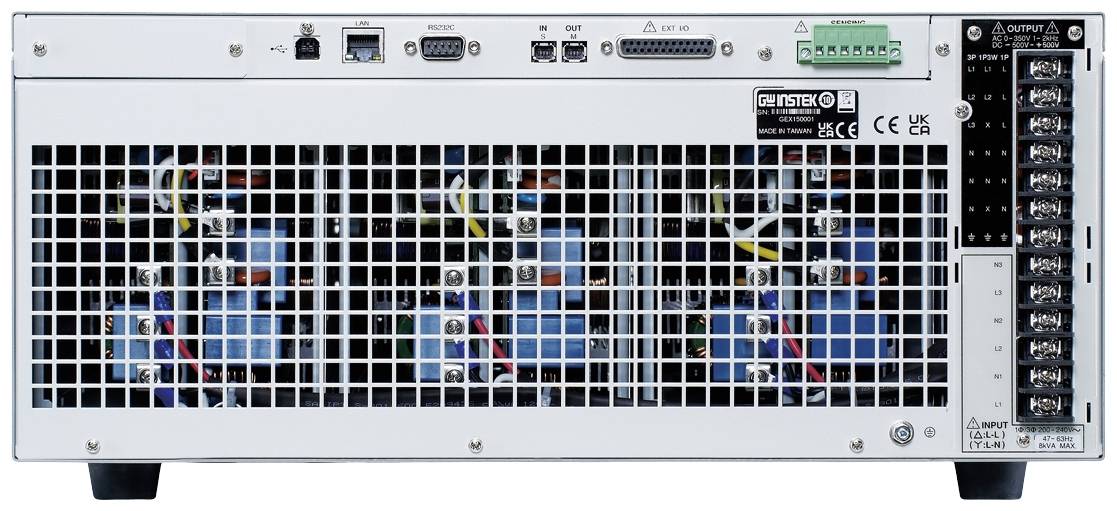

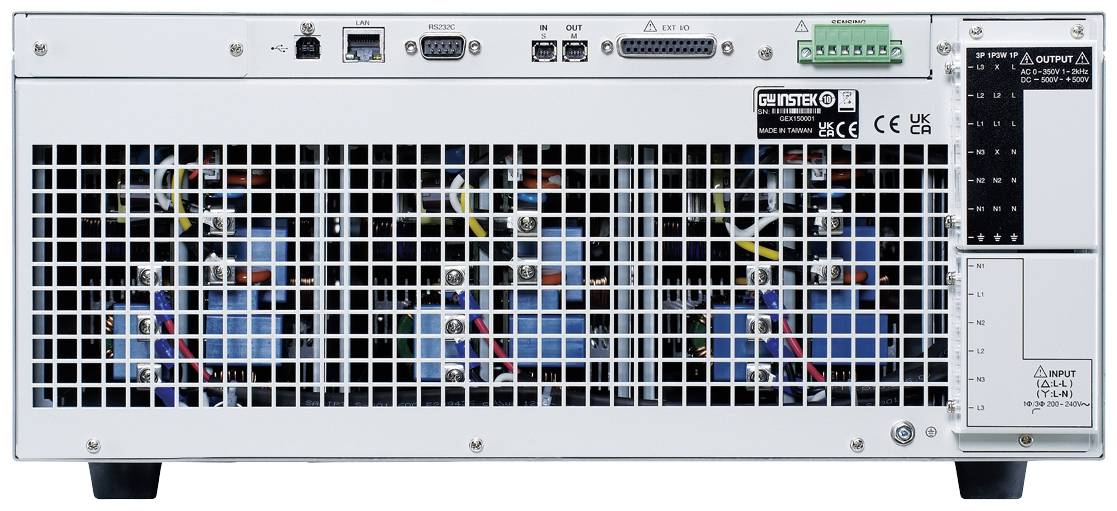

Back of an electronic device with ventilation grille and multiple ports, including USB, network, and power connections in the top right.

1/5

GW Instek

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 20,965.00 / piece)

€ 20,965.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

6kVA multi-output programming AC/DC Power source

200 - 400 / 30 - 60 A
6000 W
USB , LAN, RS232

Technical specifications

Display 7" TFT LCD

Type: ASR-6600

Product type: Bench PSU (adjustable voltage)

: 6000 W

Interfaces: USB
LAN
RS232

Dim: (L x W x H) 590 x 430 x 176 mm

: Manufacturer's standards (no certificate)

Input voltage: 230 V AC

Weight: 40 kg

Output voltage (max.): 400 V

Output voltage (min.): 200 V

Max. output current: 60 A

Output current (min.): 30 A

Width: 430 mm

Height: 176 mm

Length: 590 mm

Max. temperature: +40 °C

Min. temperature: 0 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3098714 GW Instek ASR-6600 Bench PSU (adjustable voltage) 200 - 400 30 - 60 A 6000 W USB , LAN, RS232

User & Safety Instructions

User & Safety Instructions 3098714 GW Instek ASR-6600 Bench PSU (adjustable voltage) 200 - 400 30 - 60 A 6000 W USB , LAN, RS232

Description

The ASR-6000-series is the first independent device of GW Instek, which supports one- or three-phase AC-input and -output and has a DC-rated current output. The series uses third generation semiconductor silicon carbide (SiC) technology to create a 4U 6kVA AC/DC power source with high power density and high performance. The ASR-6000-series is capable of emulating various current environment changes, such as symmetrical three-phase and asymmetrical three-phase power supplies, phase loss, and has a multi-channel output function in the three-phase output mode, a programmable output impedance adjustment and up to tens of thousands of arbitrary wave shaped outputs. The unbeatable launch of the GW Instek ASR-6000 series flagship shows that GW Instek can offer a complete test solution for high-performance AC sources. The ASR-6000-series is the MVP of power sources of GW Instek.

This text is machine translated.

Description

The ASR-6000-series is the first independent device of GW Instek, which supports one- or three-phase AC-input and -output and has a DC-rated current output. The series uses third generation semiconductor silicon carbide (SiC) technology to create a 4U 6kVA AC/DC power source with high power density and high performance. The ASR-6000-series is capable of emulating various current environment changes, such as symmetrical three-phase and asymmetrical three-phase power supplies, phase loss, and has a multi-channel output function in the three-phase output mode, a programmable output impedance adjustment and up to tens of thousands of arbitrary wave shaped outputs. The unbeatable launch of the GW Instek ASR-6000 series flagship shows that GW Instek can offer a complete test solution for high-performance AC sources. The ASR-6000-series is the MVP of power sources of GW Instek.

This text is machine translated.
