Buy VOLTCRAFT DSP-8020 Bench PSU (adjustable voltage) 0 - 80 0 - 20 A 500 W USB No. of outputs 1 x

A digital laboratory power supply shows 29.89 volts and 0.235 amperes on the display. Various buttons and connectors are visible.

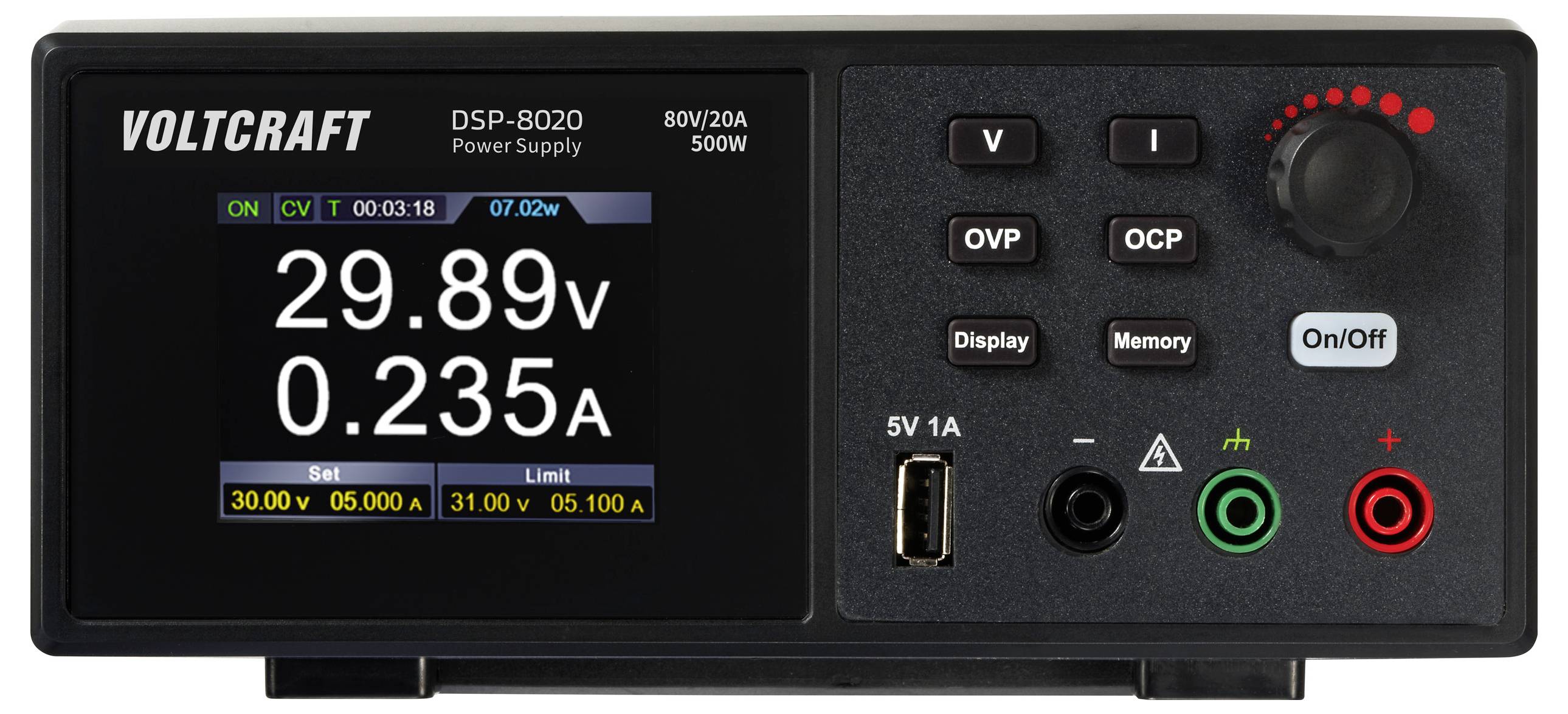

A digital power supply unit with a voltage of 29.89V and a current of 0.235A. Displays and controls for voltage and current limitation are visible.

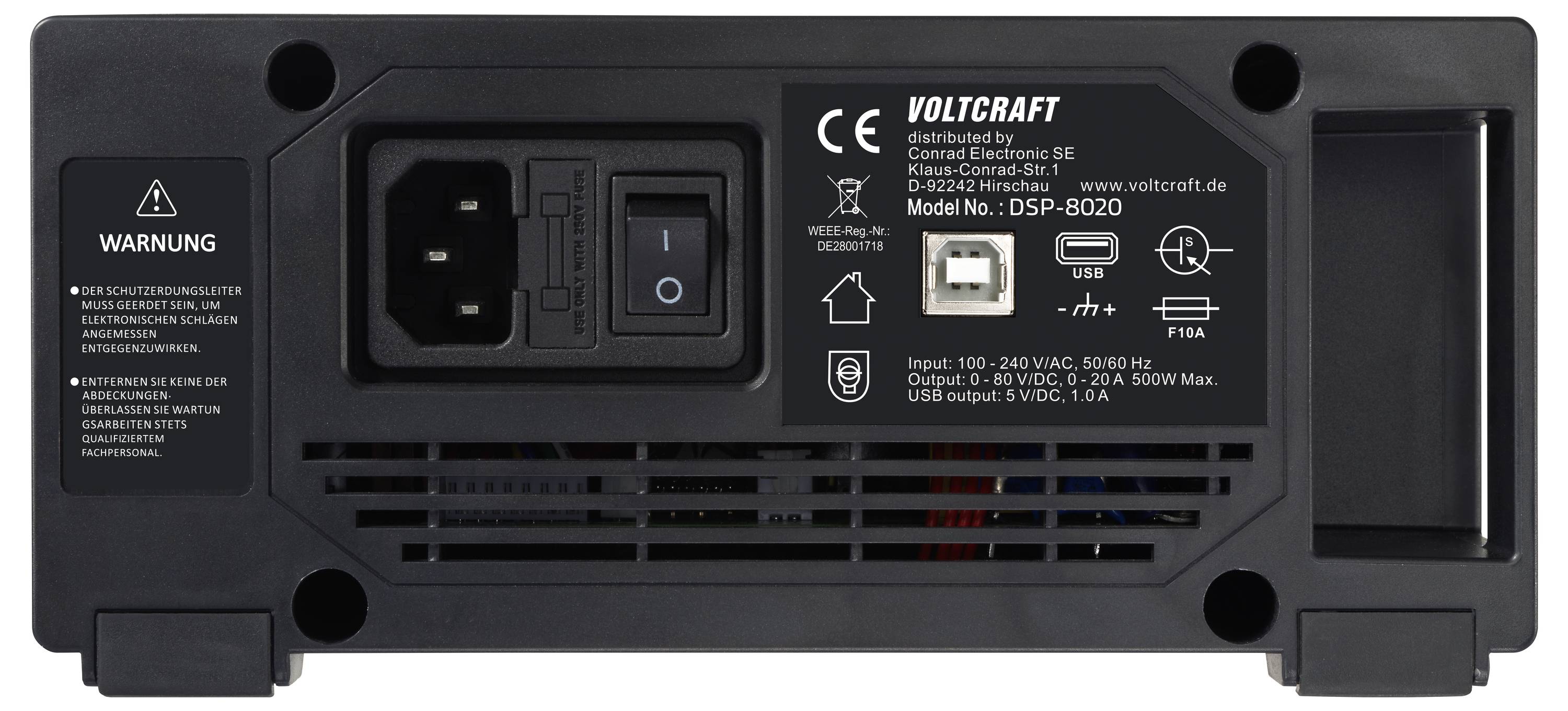

The image shows the back panel of a Voltcraft DSP-8020 power supply with an on/off switch, power socket, USB port, and warning label.

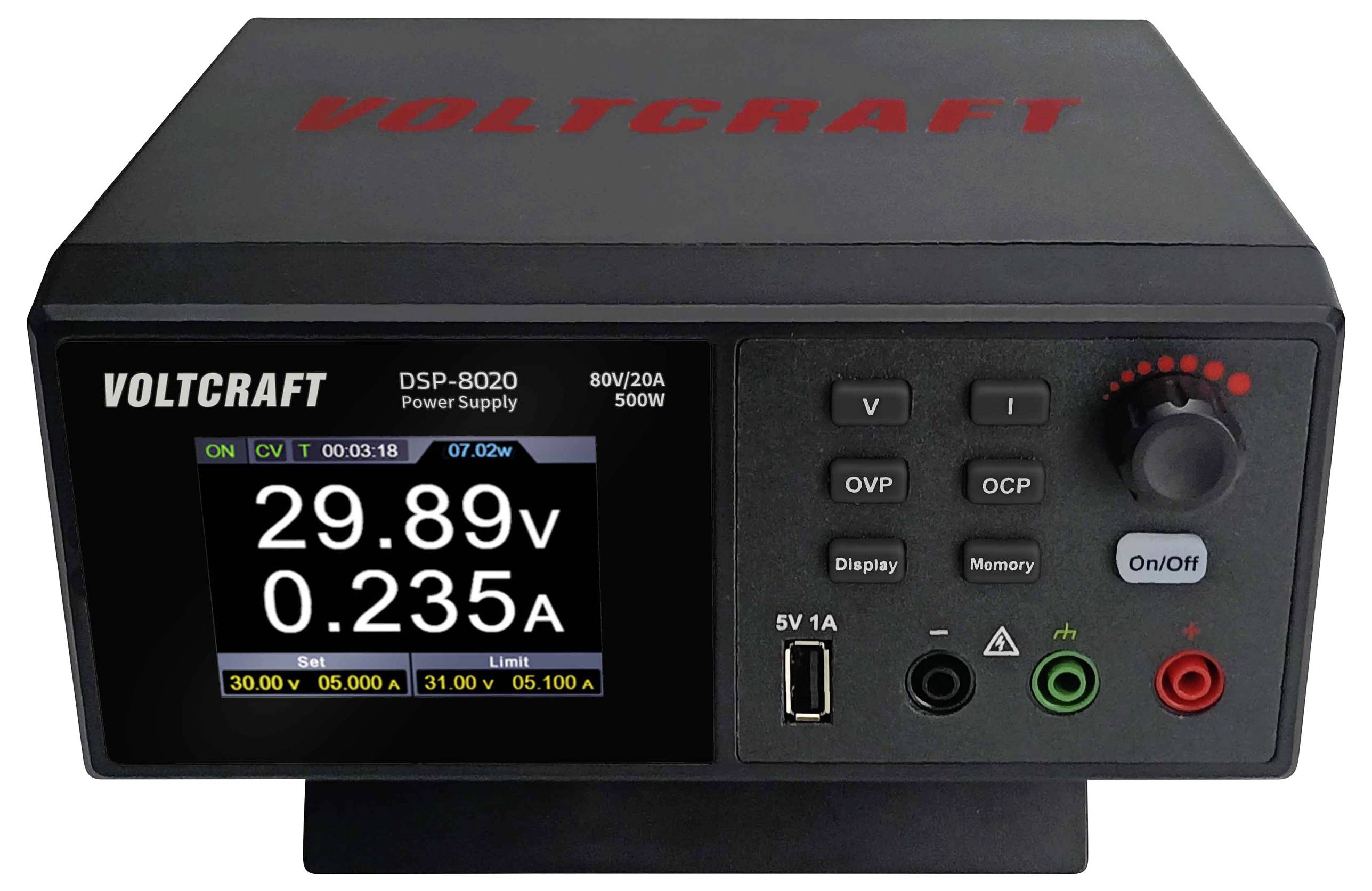

Power supply unit with display, showing 29.89 V voltage and 0.235 A current. Includes control buttons and connectors at the front.

A black uninterruptible power supply (UPS) unit with ventilation grille and connection options on the rear. CE and RoHS marks visible.

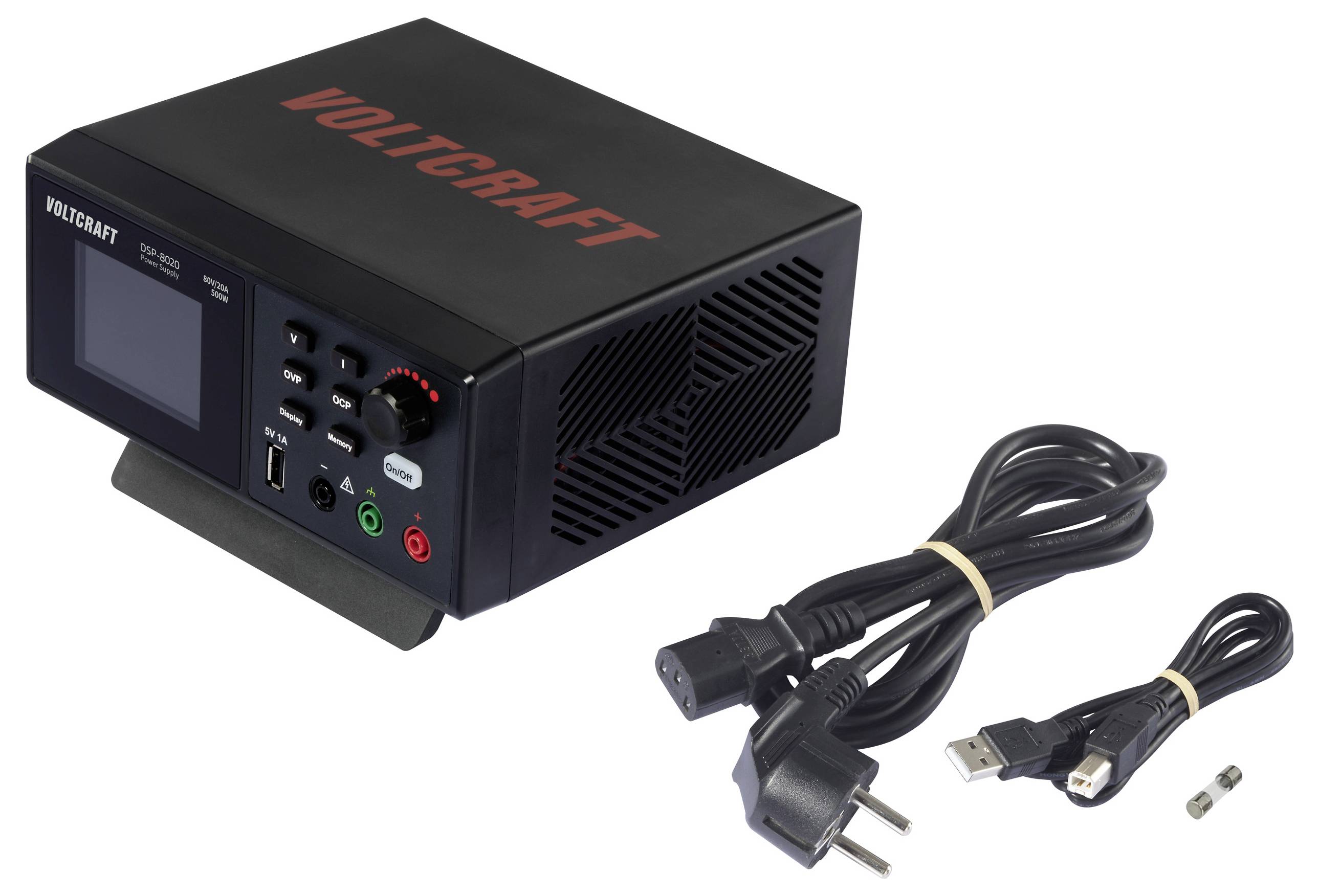

A power supply unit with a digital display by VOLTCRAFT, two mounting cables and plugs lying beside it on the right.

VOLTCRAFT DSP-8020 Bench PSU (adjustable voltage) 0 - 80 0 - 20 A 500 W USB No. of outputs 1 x-6

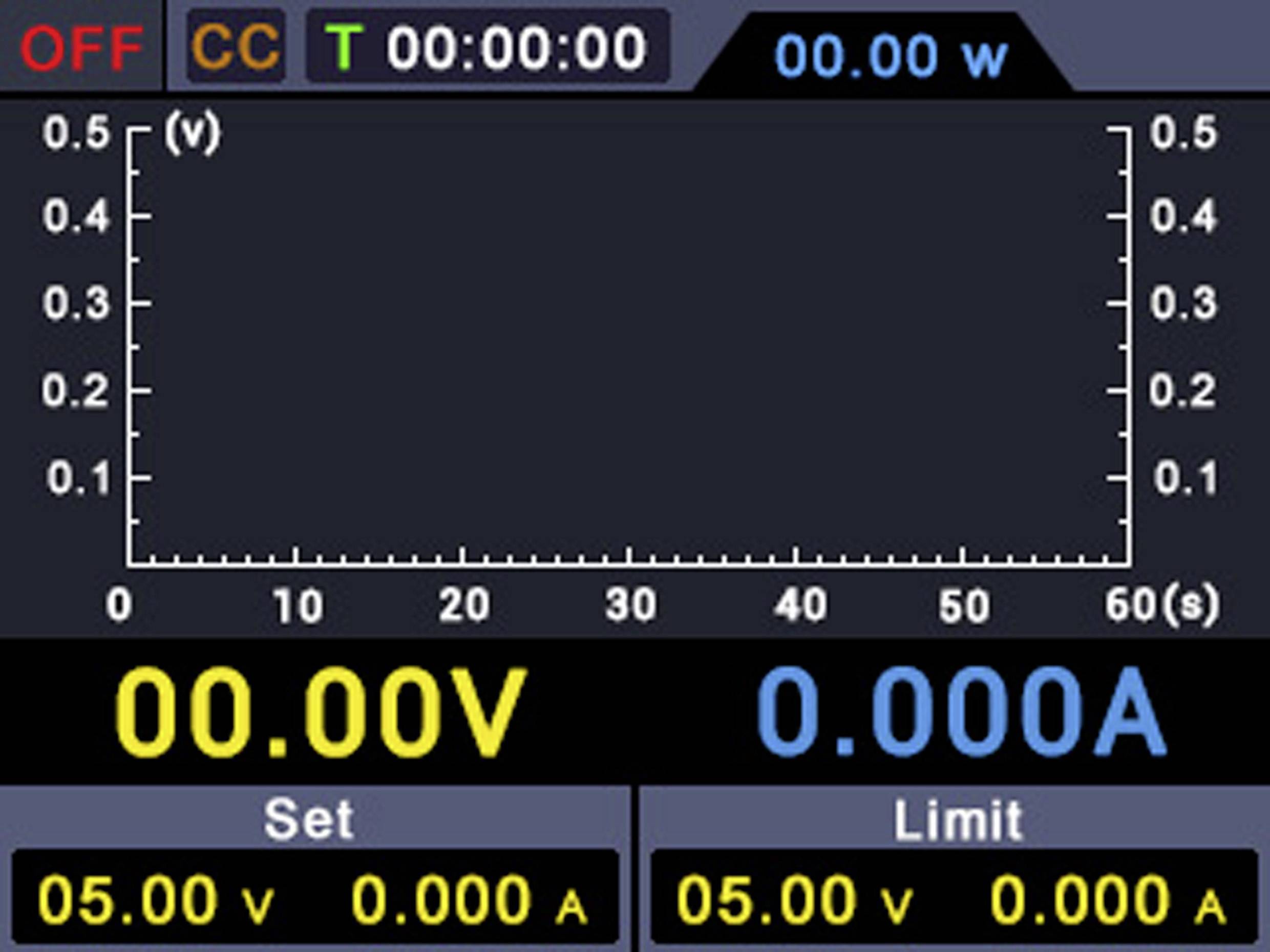

Image of a digital oscilloscope with a graph area. Displays for voltage (00.00V), current (0.000A), timer (00:00:00) and power (00.00 W).

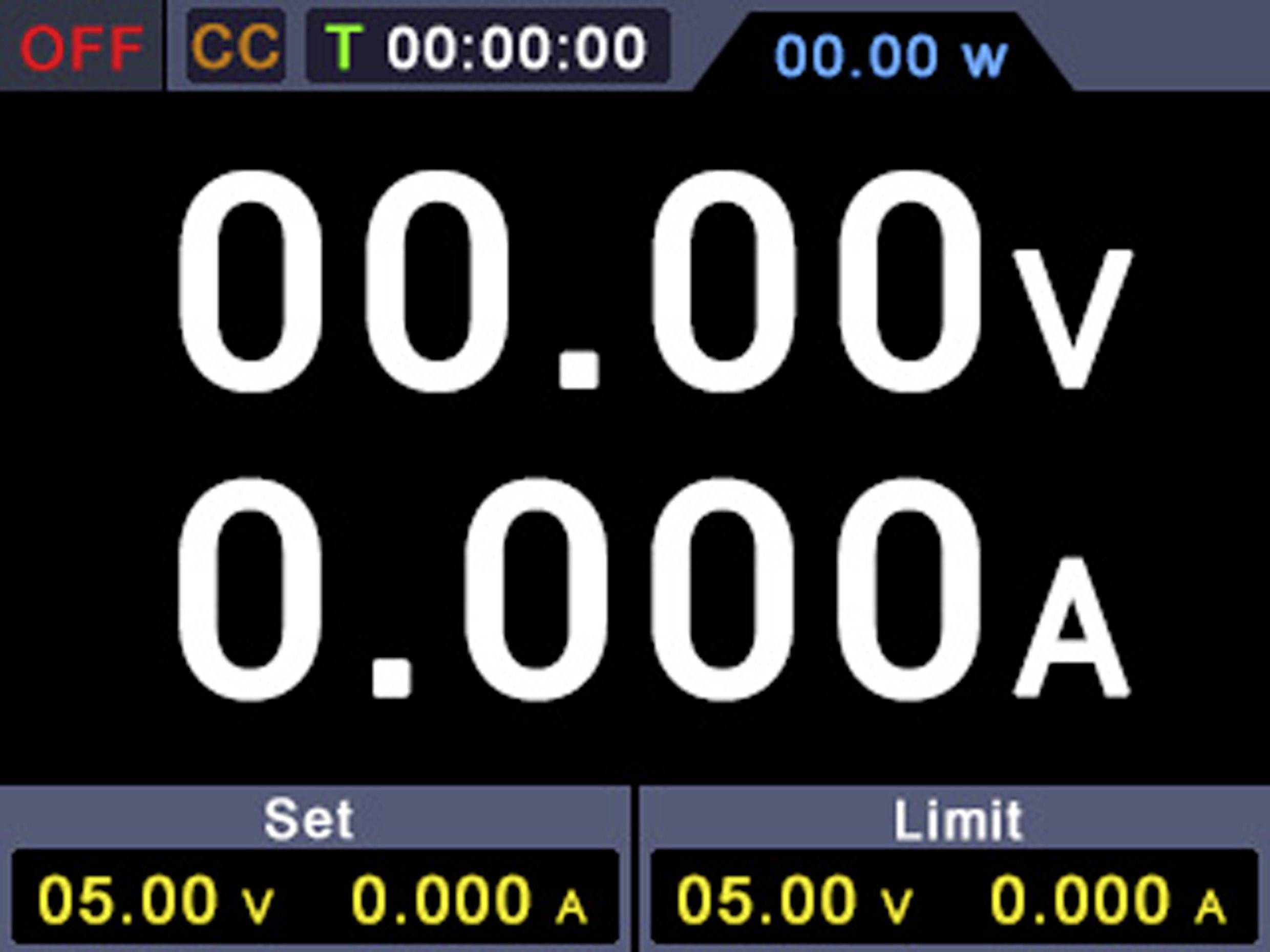

Digital display of a voltmeter and ammeter, showing '00.00V' voltage and '0.000A' current, with adjustable limits.

Image of a digital measuring device shows '00.00v' and '0.000A'. Top left: 'OFF', next to it additional displays, below 'Set' and 'Limit'.

Digital display of a measuring device: Voltage '00.00V', Current '0.000A'. Set values: '05.00V', '00.000A'. Limit values: '31.00V', '05.100A'.

A digital display shows voltages of '00.00V' and currents of '0.000A'. Settings: 05.00V, 00.000A. Limit: 31.00V, 05.100A.

Digital display with values: Voltage '00.00V', Current '0.000A'. Settings at '5.00V', '0.000A'. Limits at '31.00V', '5.100A'.

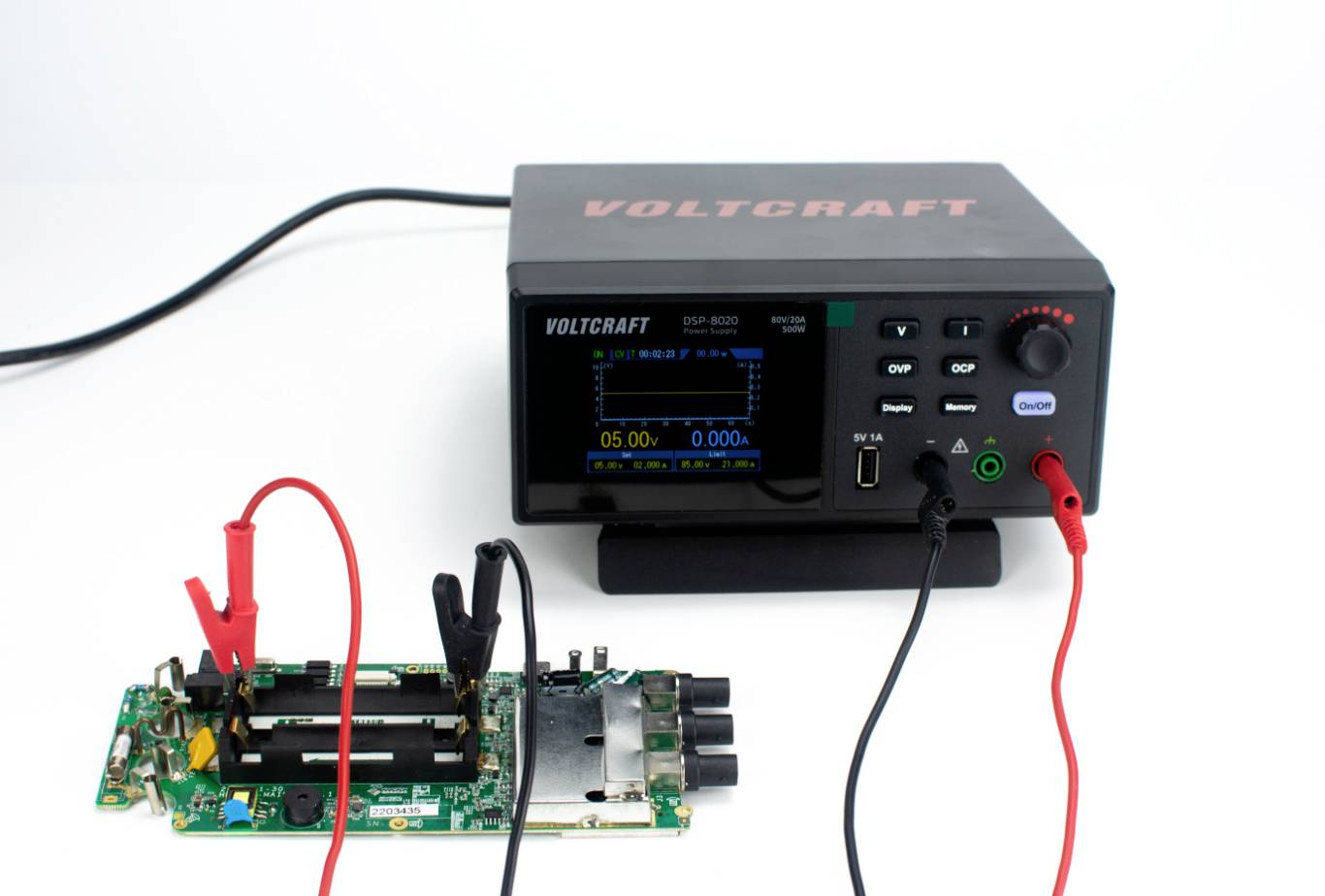

A digital power supply with an LCD display shows voltage readings. Two cables are connected to a green circuit board lying on a table.

1/14

Our service for you

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

37 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 273.11 / piece)

€ 273.11

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT DSP-8020 DC power supply

No. of outputs 1 x
0 - 80 / 0 - 20 A
500 W
USB

Technical specifications

Input frequency: 50/60 Hz
Input fuse: 250 V, F10 A
Resolution: 10 mV, 1 mA
Power cord length: 1.5 m
USB cable length: 1.08 m

Type: DSP-8020

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 500 W

Interfaces: USB

Dim: (L x W x H) 185 x 200 x 92 mm

: Manufacturer's standards (no certificate)

Input voltage: 100 V
240 V

Weight: 1.5 kg

Output voltage (max.): 80 V

Output voltage (min.): 0 V

Max. output current: 20 A

Output current (min.): 0 A

Type: DC power supply

Width: 200 mm

Height: 92 mm

Length: 185 mm

Residual ripple: Voltage (Vp-p): ≤50 mVp-p
Current (rms): ≤20 mA

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Input voltage

Product type

Output current

VOLTCRAFT DSP-8020 Bench PSU (adjustable voltage) 0 - 80 0 - 20 A 500 W USB No. of outputs 1 x

Item no:3368776

This article

500 W

Manufacturer's standards (no certificate)

0 - 80

100 V240 V

Bench PSU (adjustable voltage)

0 - 20 A

VOLTCRAFT DSP-6010 Bench PSU (adjustable voltage) 0 - 60 0 - 10 A 300 W USB 2.0 port A remote controlled No. of outputs 1 x

Item no:2446087

300 W

Manufacturer's standards (no certificate)

0 - 60

230 V AC

Bench PSU (adjustable voltage)

0 - 10 A

VOLTCRAFT DSP-3005 Bench PSU (adjustable voltage) 0 - 30 0 - 5 A 150 W USB 2.0 connector A remote controlled No. of outputs 1 x

Item no:2446362

150 W

Manufacturer's standards (no certificate)

0 - 30

230 V AC

Bench PSU (adjustable voltage)

0 - 5 A

VOLTCRAFT DSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 300 W USB 2.0 port A remote controlled No. of outputs 1 x

Item no:2446363

300 W

Manufacturer's standards (no certificate)

0 - 30

230 V AC

Bench PSU (adjustable voltage)

0 - 10 A

VOLTCRAFT DSP-3008 F Bench PSU (adjustable voltage) 0 - 30 0 - 8 A 120 W USB fanless No. of outputs 1 x

Item no:3376589

120 W

Manufacturer's standards (no certificate)

0 - 30

100 V240 V

Bench PSU (adjustable voltage)

0 - 8 A

VOLTCRAFT DSP-15010 Bench PSU (adjustable voltage) 0 - 150 10 A (max.) 500 W USB No. of outputs 1 x

Item no:3451553

500 W

Manufacturer's standards (no certificate)

0 - 150

100 V AC240 V AC

Bench PSU (adjustable voltage)

10 A (max.)

VOLTCRAFT DSP-30005 Bench PSU (adjustable voltage) 0 - 300 5 A (max.) 500 W USB No. of outputs 1 x

Item no:3451554

500 W

Manufacturer's standards (no certificate)

0 - 300

100 V AC240 V AC

Bench PSU (adjustable voltage)

5 A (max.)

VOLTCRAFT DSP-8020 Bench PSU (fixed voltage) Calibrated to (ISO standards) 0 - 80 0 - 20 A 500 W USB No. of outputs 1 x

Item no:3768272

500 W

ISO standards

0 - 80

100 V240 V

Bench PSU (fixed voltage)

0 - 20 A

VOLTCRAFT DSP-3008 F Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 30 0 - 8 A 120 W USB fanless No. of outputs 1 x

Item no:3768283

120 W

ISO standards

0 - 30

100 V240 V

Bench PSU (adjustable voltage)

0 - 8 A

VOLTCRAFT DSP-8020 Bench PSU (fixed voltage) Calibrated to (DAkkS standards) 0 - 80 0 - 20 A 500 W USB No. of outputs 1 x

Item no:3768313

500 W

DAkkS standards

0 - 80

100 V240 V

Bench PSU (fixed voltage)

0 - 20 A

Documents & Downloads

Datasheet

Datasheet 3368776 VOLTCRAFT DSP-8020 Bench PSU (adjustable voltage) 0 - 80 0 - 20 A 500 W USB No. of outputs 1 x

User & Safety Instructions

User & Safety Instructions 3368776 VOLTCRAFT DSP-8020 Bench PSU (adjustable voltage) 0 - 80 0 - 20 A 500 W USB No. of outputs 1 x

Warranty Terms

Warranty Terms 3368776 VOLTCRAFT DSP-8020 Bench PSU (adjustable voltage) 0 - 80 0 - 20 A 500 W USB No. of outputs 1 x

Download

Download 3368776 VOLTCRAFT DSP-8020 Bench PSU (adjustable voltage) 0 - 80 0 - 20 A 500 W USB No. of outputs 1 x

Description

Versatile laboratory power supply
The VOLTCRAFT DSP-8020 DC laboratory power supply can be used with its constant power of 500 W for various applications in development, testing and service areas as well as in training and the hobby electronics. Load control by constant voltage (CV) and constant current (CC) ensure efficient protection of the electronics. The 1 output is available, the load values are adjustable up to a maximum of 80 V and 20 A. The power supply is mounted in a compact and light housing and is therefore also suitable for mobile use.
Safe and comfortable operation
To ensure safe operation, the VOLTCRAFT DSP-8020 DC is protected against overvoltages, overloads and overheating: The fan with intelligent temperature monitoring ensures optimal cooling and minimum noise development. For repetitive processes the voltage output is automatically called up upon activation can be adjusted.
Easy analysis
All data is displayed on the easy-to-read LCD color display. Four groups are available for fast output of voltage and current parameters. In addition, a USB-interface with SCPI-support is integrated.
Supplied with accessories
The VOLTCRAFT DSP-8020 DC comes with a power cable and a USB cable, a fuse, operating instructions and a safety data sheet.

This text is machine translated.

Features

Ultra-thin body with portable and easy-to-use design
500 W constant power for multiple applications
Overvoltage/overcurrent/Over-temperature protection
Power-on automatic output setting
Intelligent temperature control fan for optimal cooling and minimal noise

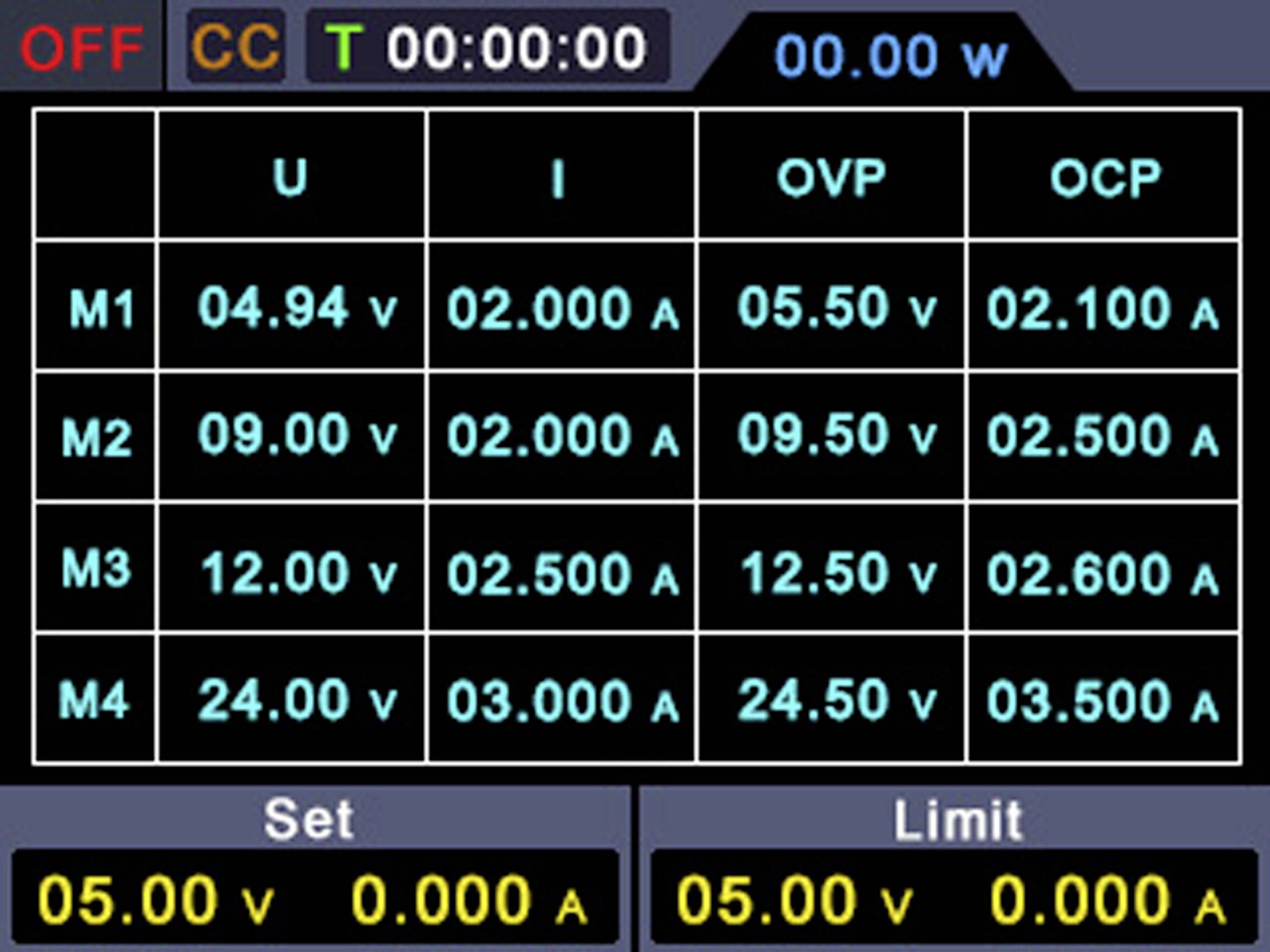

4 groups of memory shortcut parameters for quick output
USB device communication port, supports SCPI
Constant voltage CV/constant current CC mode for effective circuit protection
LCD display

Scope of delivery

DC power supply
Power cord
USB cable
Fuse
User manual
Safety hint sheet
