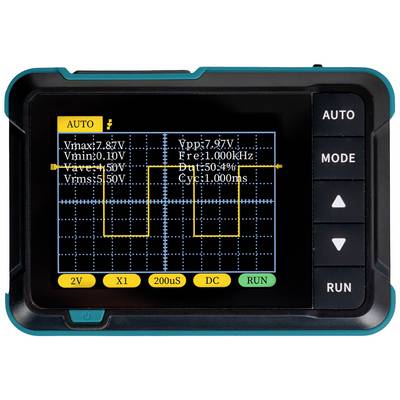

Joy-it DSO-200 Digital 200 kHz 2.5 MSa/s Digital storage (DSO), Handheld 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
Highlights & Details
Handheld oscilloscope DSO-200, 320x240 LCD display, battery, USB C, 200 kHz
- 200 kHz
Technical specifications
- Sampling rate 2.5ms
- Vertical sensitivity 10 mV/div - 20 V/div
- Horizontal time range 10 μs/div - 50 s/div
- Test voltage range X1: 80 Vpp (-40 V - 40 V), X10: 800 Vpp (-400 V - 400 V)
- Trigger modes: Auto, normal, single
- Coupling AC, DC
- Calibration (square wave) Frequency: 1 kHz duty cycle: 50%
- Standing function: Integrated, at 90° foldable stand
- 2.8" 320x240 LCD display
- Product type
Digital
- Bandwidth
200 kHz
- Channel sample rate
2.5 MSa/s
- Screen size
2,8 inch
- Oscilloscope features
Digital storage (DSO)
Handheld
Manufacturer's standards (no certificate)
- Power supply (details)
5 V
- Dim
(L x W x H) 69 x 99 x 20 mm
- Weight
80 g
- Display
320 p
- Width
99 mm
- Height
20 mm
- Length
69 mm
- Interfaces
USB-C
- Type
DSO-200
Documents & Downloads
Datasheet
Datasheet 2980213 Joy-it DSO-200 Digital 200 kHz 2.5 MSa/s Digital storage (DSO), Handheld 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2980213 Joy-it DSO-200 Digital 200 kHz 2.5 MSa/s Digital storage (DSO), Handheld 1 pc(s)
Conformity certificate
Conformity certificate 2980213 Joy-it DSO-200 Digital 200 kHz 2.5 MSa/s Digital storage (DSO), Handheld 1 pc(s)
Description
Experience precise measuring accuracy and mobility like never before with our new hand-held oscilloscope DSO-200. The DSO-200 brings top performance into your hands, specially designed for hobby electricians who value precision and portability. The DSO-200 fits easily in your hand and can be stored in your workshop or on your desk, thanks to its foldable stand and compact, robust design. The simple operation and the mobility make the DSO-200 your perfect companion.
This text is machine translated.
This text is machine translated.
Features
- Robust design characteristics
- 2.8" display with 320x240 pixels
- Bandwidth 200 kHz
- 1000 mAh Lithium rechargeable battery
- USB C interface
- Housing with unfoldable base
- With 6 bits. Osci probe, test clamp, BNC adapter
Scope of delivery
- DSO-200, USB-C CABLE,
- Hand strap, oscilloscope-
- Probe, test clip with
- Alligator clips,
- BNC adapter · Instructions
