Buy VOLTCRAFT DSO-5104H Handheld oscilloscope 100 MHz 4-channel 1 GS/s 40 MP 14 Bit Digital storage (DSO), Handheld 1 pc(s)

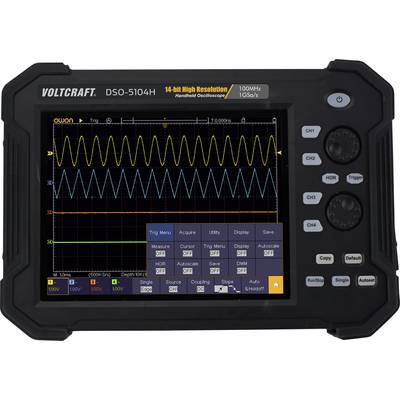

Oscilloscope display shows a sinusoidal wave pattern. Measurement and trigger settings are visible. Device identified as VOLTCRAFT DSO-5104H.

'Voltcraft DSO-5104H oscilloscope with a displayed waveform pattern and measurement values on a colour display, used for data analysis.'

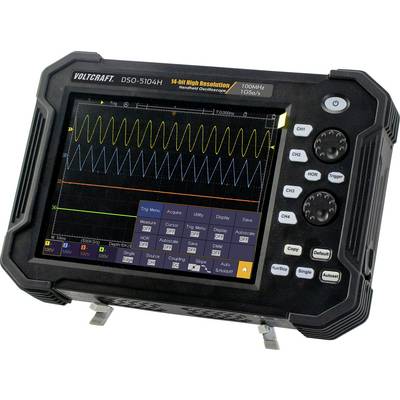

A portable oscilloscope displays a complex waveform on the screen with various menu options and buttons on the side.

Robust black suitcase with reinforced corners and a central handle, likely intended for military or industrial applications.

Device rear panel connections: Trig Out, USB Device, USB, Ethernet LAN, DC Input.

Back of a Voltcraft charger with ventilation slots and warning notices. Suitable for 12V DC power supply.

Black electronic device with four connection sockets (CH1, CH2, CH3, CH4) and a warning mark on the left side.

'Four-channel circuit from CH1 to CH4, marked with 400V CAT II and 1 MΩ.'

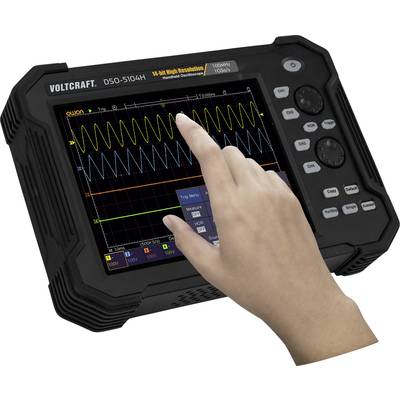

A person is operating a portable oscilloscope, model VOLTCRAFT DSO-5104H, with a touchscreen. Waveforms are visible on the display.

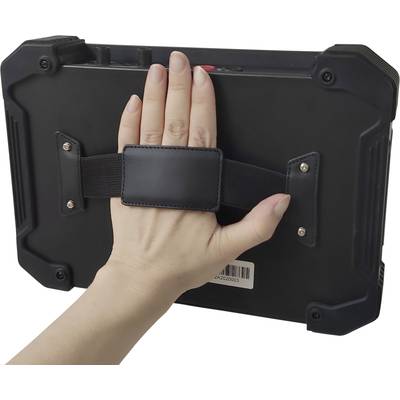

A hand is holding a robust, black tablet with a strap on the back. A barcode label is visible.

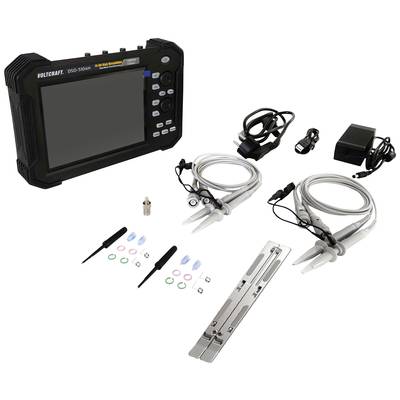

Portable digital storage oscilloscope with accessories: measurement leads, power supply, hook clips, and adapter. Ideal for electrical measurements.

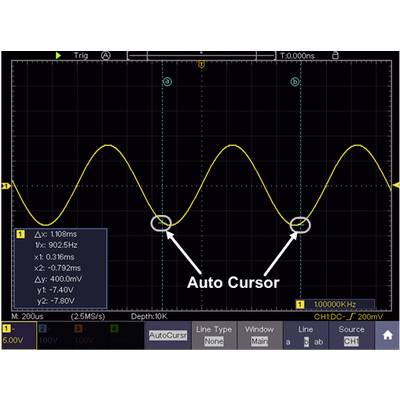

An oscilloscope screen displays a yellow sine wave. Two 'Auto Cursor' arrows mark one cycle. Δx: 1.108ms, νx: 902.5Hz.

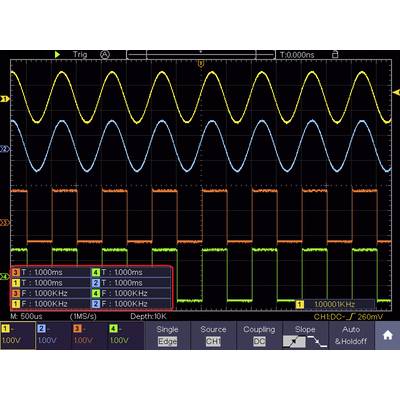

'Oscilloscope display with four channels (yellow, blue, orange, green) showing sinusoidal and rectangular waves, all at 1 kHz, 1000 ms.'

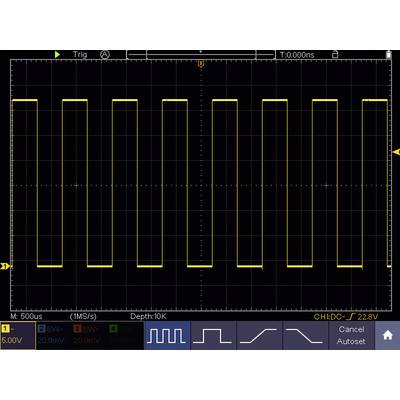

'Oscilloscope display: Yellow rectangular wave with constant pattern, time axis in microseconds, voltage scale 5 volts.'

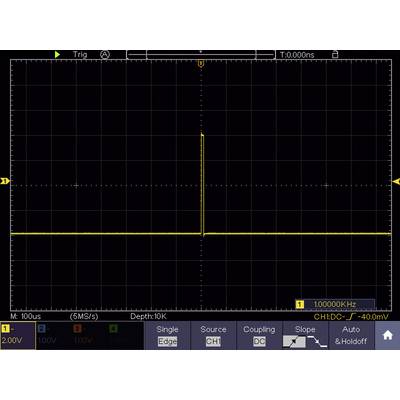

Oscilloscope screen shows a single yellow signal pulse, vertical scale 2V/div, horizontal 5ms/div, frequency 1000 kHz.

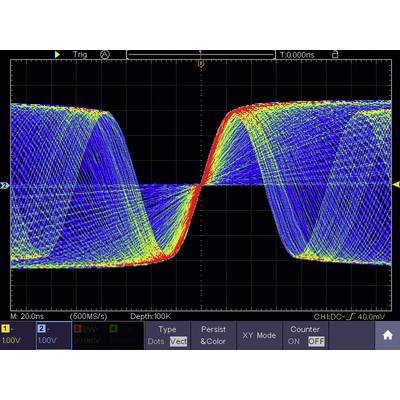

'Oscilloscope display with Lissajous figure in rainbow colours, showing phase shift and amplitude variations.'

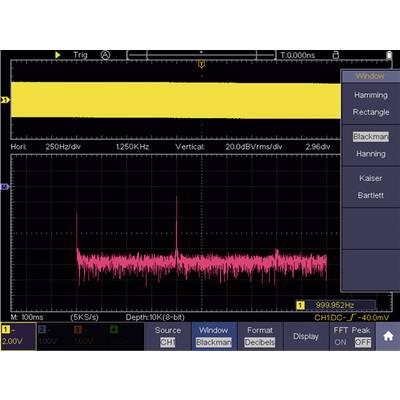

'Oscilloscope screen shows a frequency spectrum with a peak value at approximately 1 GHz. Blackman window option selected.'

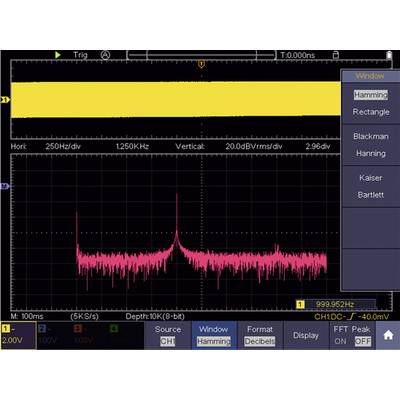

Oscilloscope display shows frequency spectrum with prominent peaks around 1 kHz. Display options such as 'Hamming' selected.

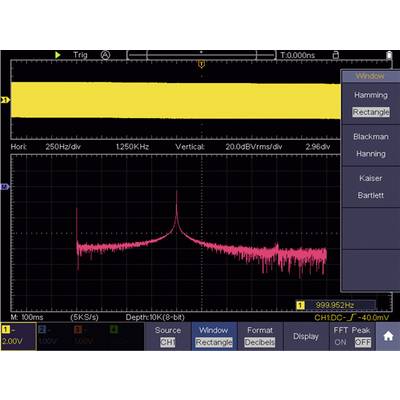

'Oscilloscope display shows a rectangular signal at the top, with a power distribution spectrum with peaks at the bottom. Setting: Rectangular window.'

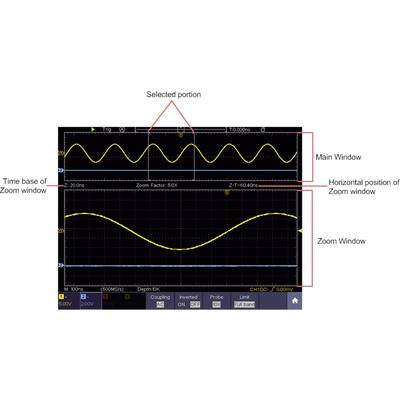

Oscilloscope display with two windows: main window shows a waveform; zoom window enlarges a marked section of the waveform.

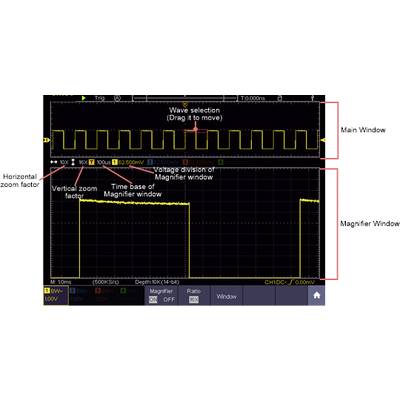

'Oscilloscope screen with two windows. Main window displays a waveform; magnification window below shows a detailed section. Labels for vertical and horizontal zoom factors.'

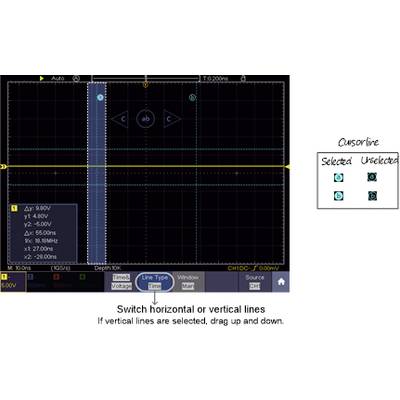

An oscilloscope display shows a waveform with vertical lines, cursor options, and a legend indicating voltage (V) and time (t).

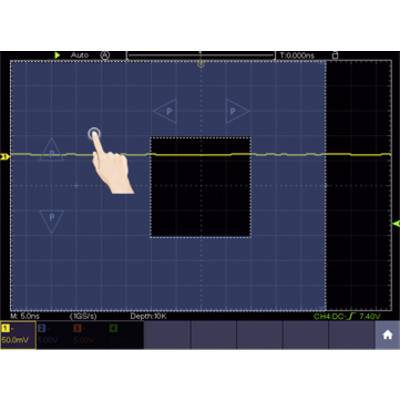

A graphical user interface displays an oscilloscope with a hand making a gesture on the screen.

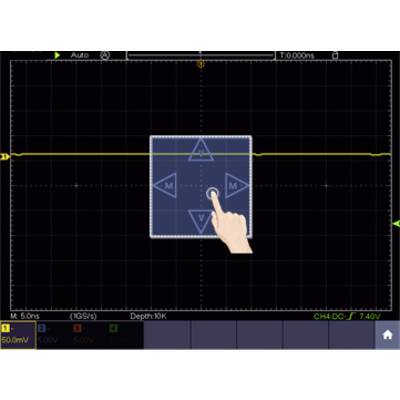

'Oscilloscope screen with a yellow waveform line. A hand points to a menu with arrows, presumably for controlling the display.'

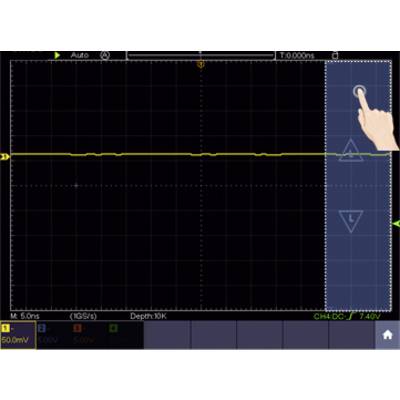

'Oscilloscope screen shows a flat yellow waveform. A hand is pressing on the right-hand edge of the screen to set a trigger.'

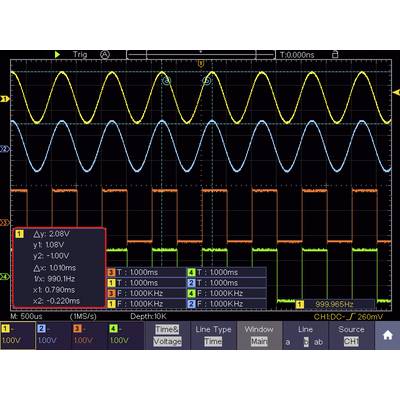

An oscilloscope image with three waveforms: a yellow sine wave, a blue peak wave, and a green square wave. Key measurements are marked.

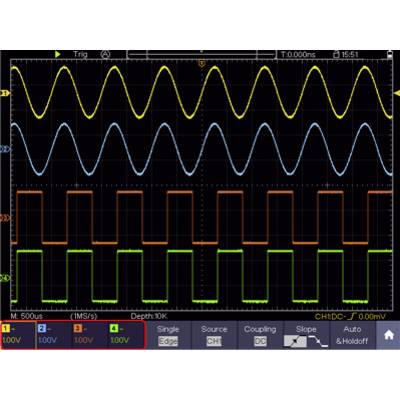

Oscilloscope screen displaying four waveforms: two sine waves at the top, a triangular wave and a square wave at the bottom. Each in a different colour.

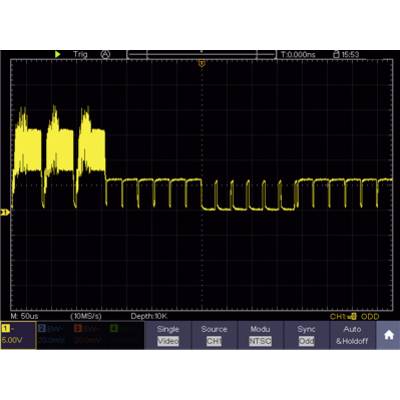

'Oscilloscope display shows yellow, wavy signal on black background. Timescale: 0-50 microseconds; Voltage: 0-5 volts.'

1/28

Our service for you

Fast track dispatch on Mon, 10 Aug

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,004.20 / piece)

€ 1,004.20

plus VAT.

Only 10 Piece(s) available

Report legal concerns

Highlights & Details

VOLTCRAFT DSO-5104H HANDHELD DIGITAL OSCILLOSCOPE

Handheld heavy duty digital oscilloscope
100 MHz bandwidth , 4 channels
1 GS/s maximum sampling rate
40 M record length
20.32 cm (8 inch) LCD touch screen (800 x 600 pixels)
14-bit ADC vertical resolution
Supports SPI / I2C / RS232 / CAN Decoding
45000 wfms/s waveform refresh rate
Low background noise

Technical specifications

Product type: Handheld oscilloscope

Bandwidth: 100 MHz

Channel sample rate: 1 GS/s

Resolution: 14 Bit

Screen size: 8" (20.32cm)

Oscilloscope features: Digital storage (DSO)
Handheld

No. of analogue inputs: 4

: Manufacturer's standards (no certificate)

Reading category: CAT II

Input impedance: 1 MΩ±2%

Dim: (L x W x H) 270 x 48 x 191 mm

Weight: 1.7 kg

No. of digital inputs (max.): 0

Width: 48 mm

Height: 191 mm

Length: 270 mm

Interfaces: LAN
1x USB 2.0 (device)
1x USB 2.0 (host)

Channel memory depth: 40 MP

Type: DSO-5104H

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2266525 VOLTCRAFT DSO-5104H Handheld oscilloscope 100 MHz 4-channel 1 GS/s 40 MP 14 Bit Digital storage (DSO), Handheld 1 pc(s)

Warranty Terms

Warranty Terms 2266525 VOLTCRAFT DSO-5104H Handheld oscilloscope 100 MHz 4-channel 1 GS/s 40 MP 14 Bit Digital storage (DSO), Handheld 1 pc(s)

Download

Download 2266525 VOLTCRAFT DSO-5104H Handheld oscilloscope 100 MHz 4-channel 1 GS/s 40 MP 14 Bit Digital storage (DSO), Handheld 1 pc(s)

Description

Perfect for mobile use!
The compact digital Voltcraft hand oscilloscope is equipped with a carrying strap and can be used practically and flexibly in different settings. As a solid voltage measuring device weighing 1.7 kg, it has 2 channels with 100 MHz bandwidth and can record measurements with a length of up to 40 minutes. The measurement is done at low background noise and the results are displayed on the 8 inch (20.32 cm) color LCD touch screen with a resolution of 800 x 600 pixels. The maximum sampling rate of the oscilloscope is up to 1 GS/s and the different test tips, which are adjustable and included in the delivery, make flexible and variable measuring possible. Also included is a USB cable, with which the measured data can be transferred quickly to the PC. The real-time display of amplitudes on the PC is as feasible as several trigger types and interfaces.

This text is machine translated.
